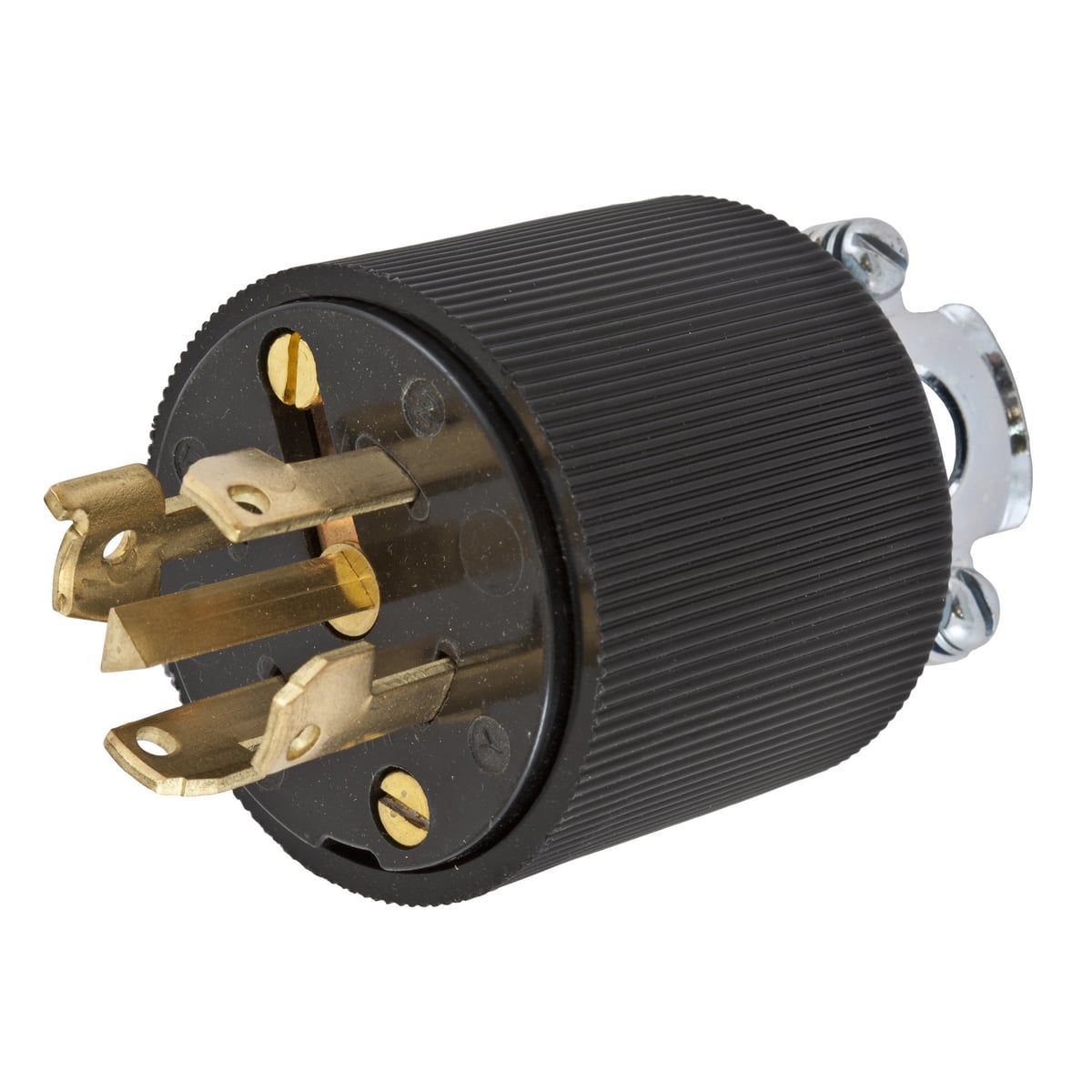

HBL45215 Multi-Phase Grounding Heavy Duty Male Standard Cord Mount Locking Plug, 600 V AC/250 V DC, 30 A, 4 Poles, 5 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL45215
- UPC:
- 783585236544
- Item #:
- 249996
HBL45215 Multi-Phase Grounding Heavy Duty Male Standard Cord Mount Locking Plug, 600 V AC/250 V DC, 30 A, 4 Poles, 5 Wires, Black
- MFR #:
- HBL45215
- UPC:
- 783585236544
- Item #:
- 249996
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$233.27
each
Variload Twist-Lock Devices - In many large plants and laboratories the number of circuits of different ratings and frequency is greater than the number of blade configurations available in conventional wiring devices. Prior to NEMA configuration standardization the solution was Variload Twist-Lock devices with four non-interchangeable center pin and slot configurations that can be assigned within the same premises to circuits of same voltage, frequency and supply (AC or DC), in accordance with NEC 406.4(F) and 406.8 and with CE Code, Part I, Rule 26-700(3).
Manuals and Documentation
| Catalog Number | HBL45215 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | Heavy Duty Industrial |
| Color | Black |
| Connection | Screw Terminal |
| Material | Nylon |
| Mounting | Cord |
| Number of Poles | 4 |
| Number of Wires | 5-Wire Grounding |
| Special Features | Unique Center Pin |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| UPC | 783585236544 |
| GTIN | 00783585236544 |
| Item Type | Standard |
| Size | 2.77 in x 2.13 in x 2.13 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 250 VDC/600 |
| Wattage | 18,000 W |
| Wire Size | #14 AWG to #10 AWG |
