Hubbell Wiring Device - Kellems

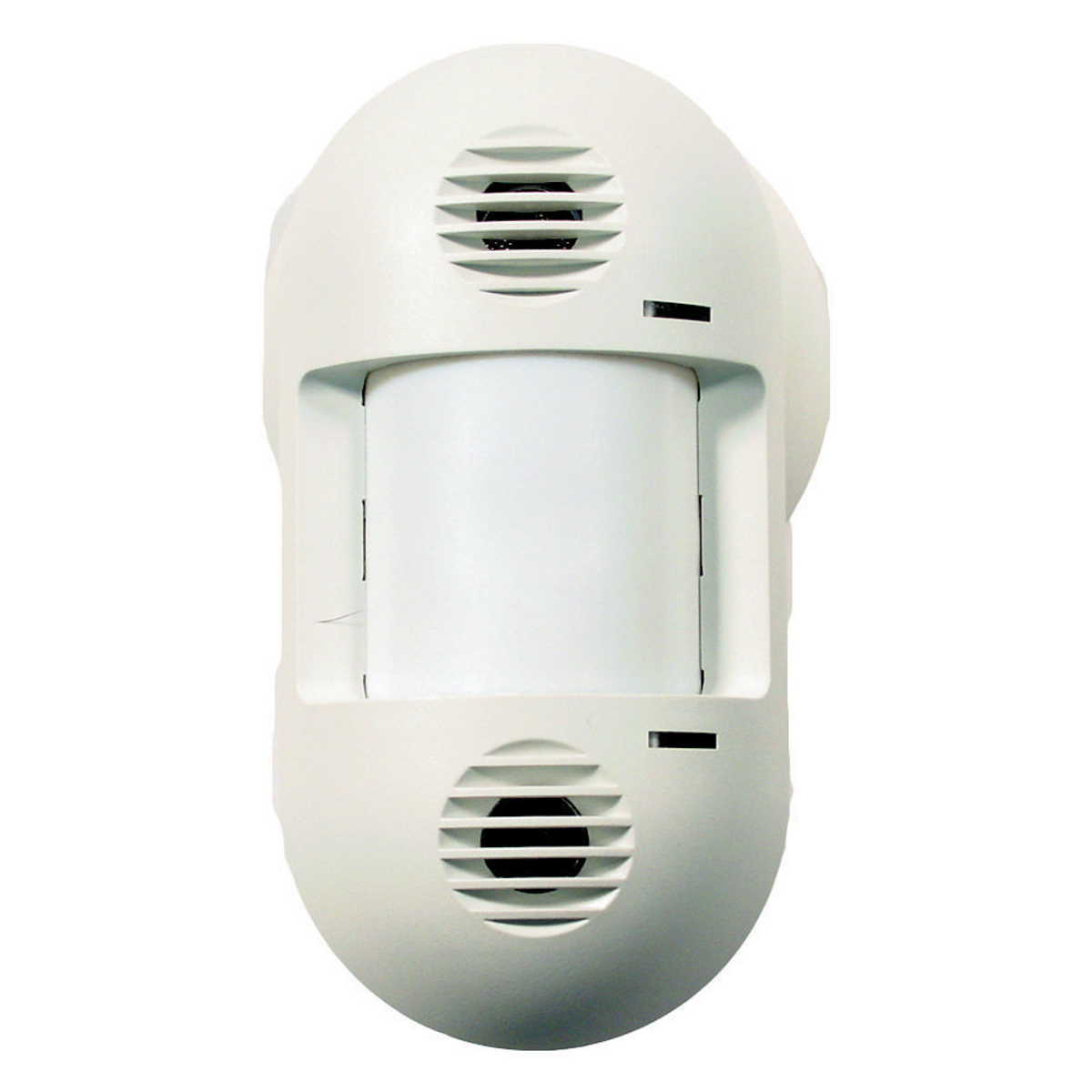

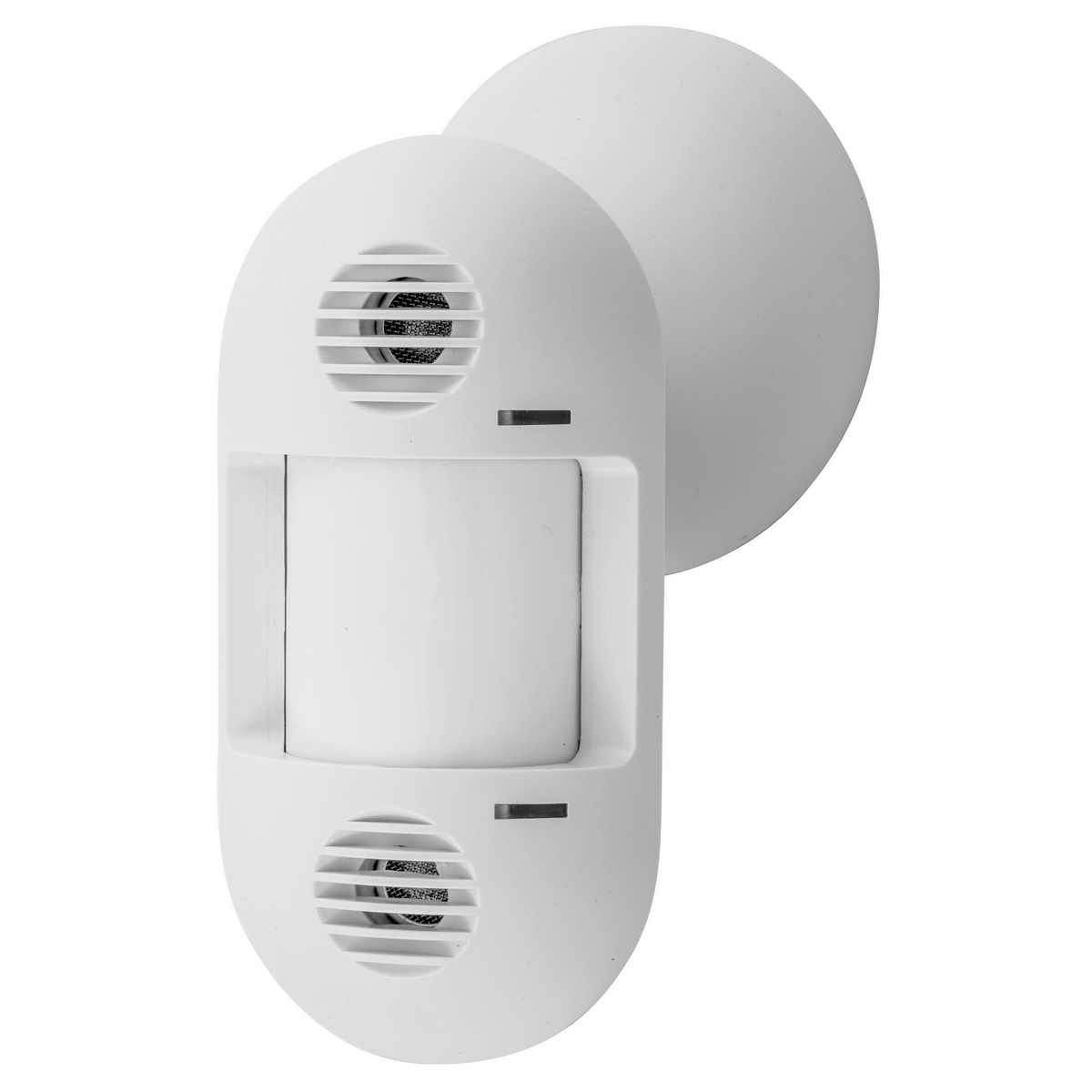

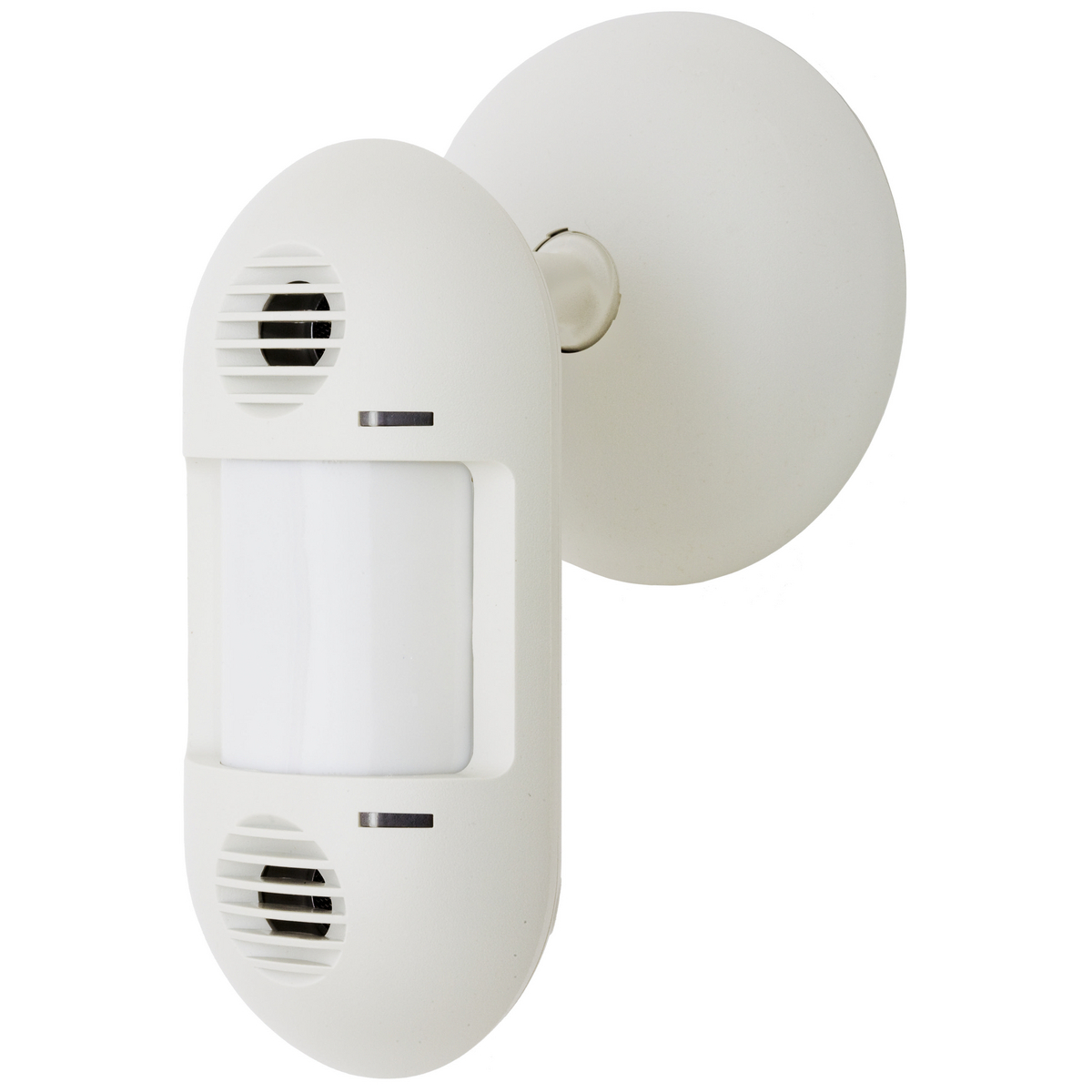

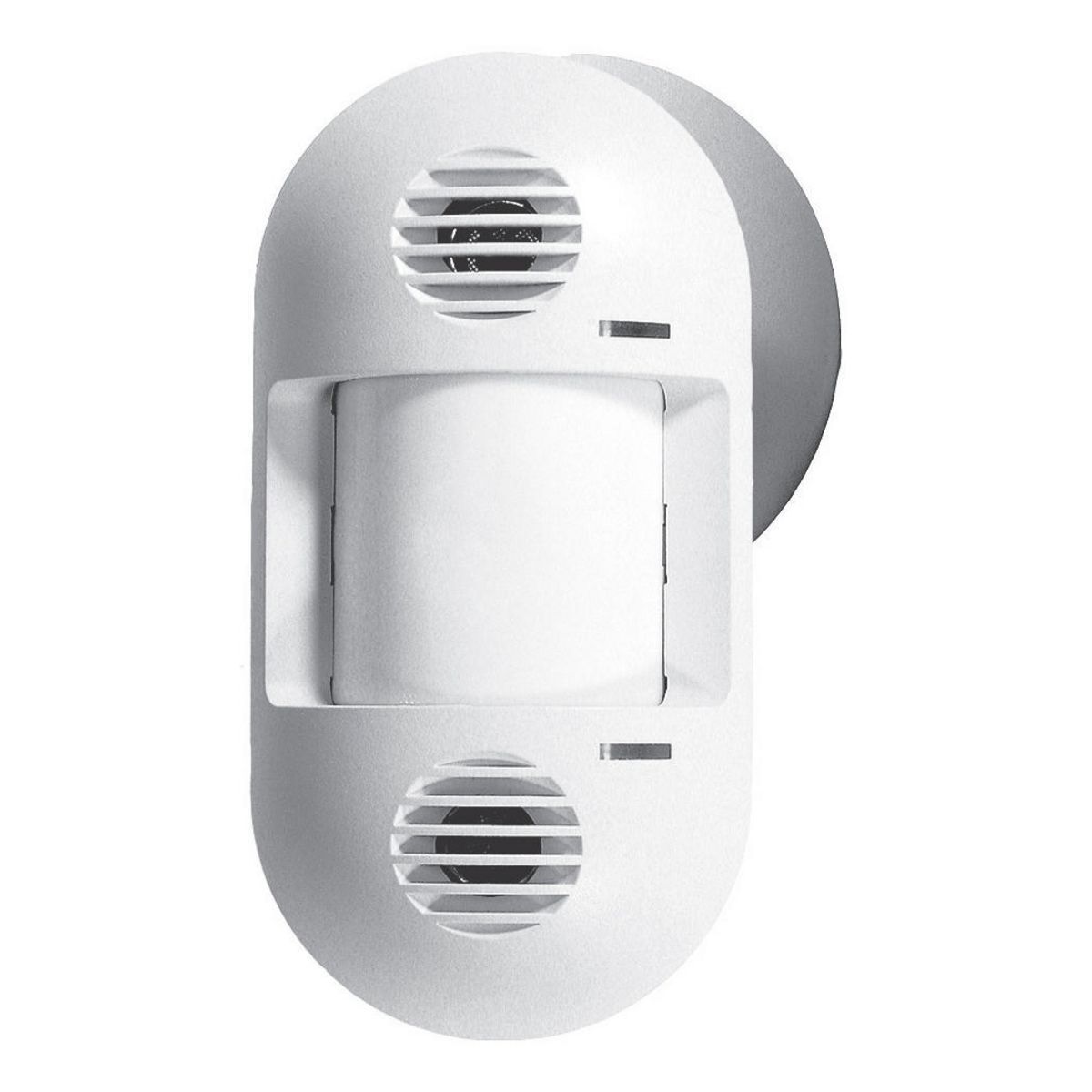

ATD1600WRP Adaptive Dual Technology Occupancy Sensor Switch With Photocell and Relay, 24 V DC, Passive Infrared/Ultrasonic Sensor, 1600 sq-ft Coverage, 110 deg Viewing

MFR:
Hubbell Wiring Device-Kellems
MFR #:
ATD1600WRP
UPC:
783585349213
Item #:
249842

Availability

Location Available Qty
Available Available to Order

Adaptive Dual Technology combines Ultrasonic and Passive Infrared technology, minimizing the risk of lights turning ON when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON. Adaptive technology provides better control. Hubbells patented breakthrough in advanced control feature smart microprocessors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history. The optimum choice when performance is paramount.

Manuals and Documentation
Catalog Number ATD1600WRP
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Application Wall Mount
Color White
Connector Wire Leads
Indicator PIR= Red LED, Ultrasonic= Green LED
Mounting Wall
Operating Cycles 6,000 Cycles Minimum
Sensing Range 8 to 12 Feet Mounting Height
Sensitivity Adaptive 0 to 100%
Sensor Adaptive Dual Tech
Special Features With Photocell and Relay
Standard ASHRAE 90.1 Compliant;cULus Listed To UL244A
Supply Voltage Low Voltage V
UPC 783585349213
GTIN 00783585349213
Item Type Sensors
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Operating Temperature 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Target Size People in
