9037HR33 Type H Float Switch, 575 V AC
- MFR:
- YAGEO Corporation
- MFR #:
- 9037HR33
- UPC:
- 785901075486
- Item #:
- 249731
9037HR33 Type H Float Switch, 575 V AC
- MFR #:
- 9037HR33
- UPC:
- 785901075486
- Item #:
- 249731
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$764.85
each

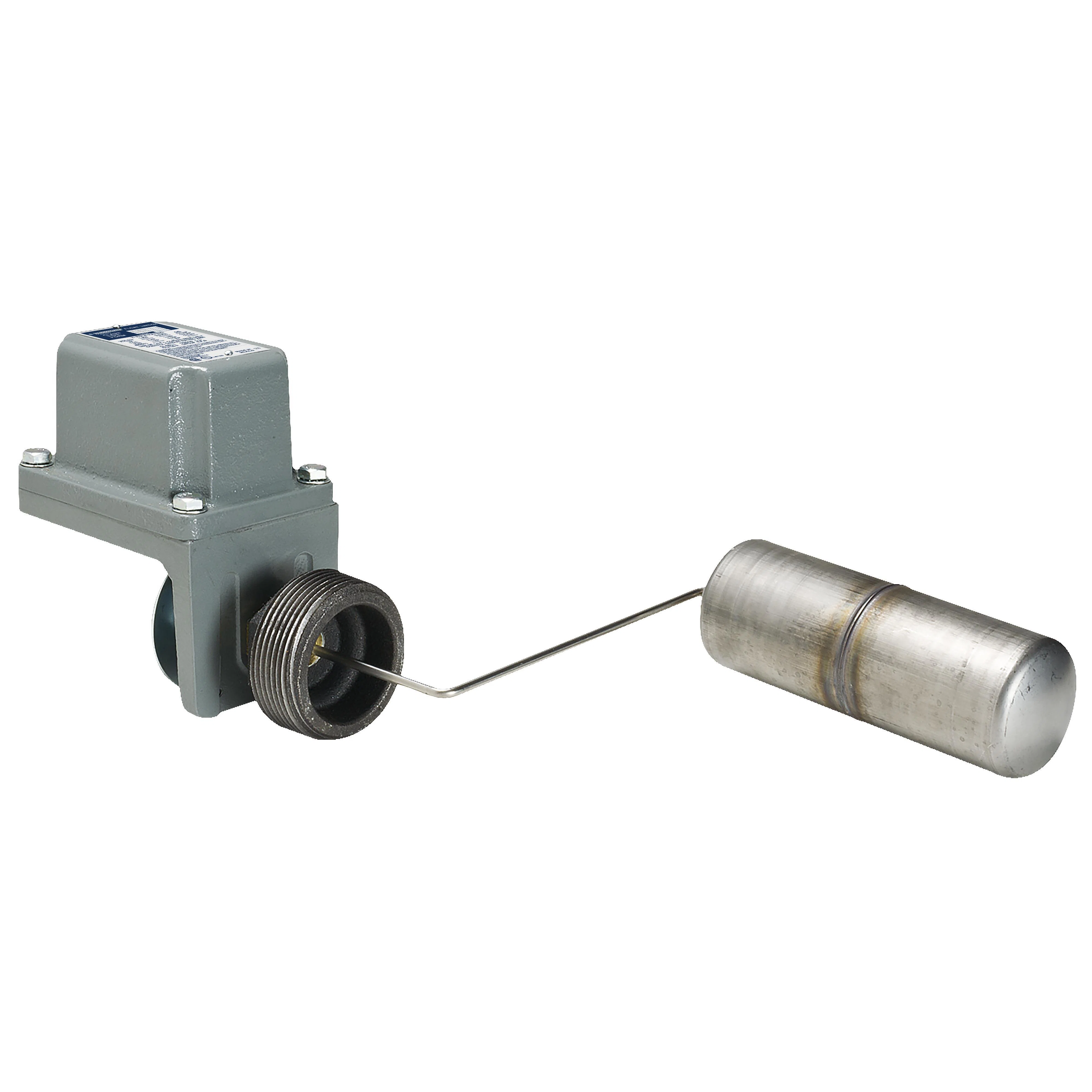

The Class 9037 Type H switches are attached to the tank by means of a 2-1/2 in bushing. An external pointer indicates the float position within the tank when the unit is mounted. Switches come complete with stainless steel float and rod. A nitrile rubber seal, such as a Buna-N quad ring seal, is used between the float rod and the sealing connector. Normal application is at atmospheric pressure. Where higher pressures are encountered, the available FKM® seal allows the switch to withstand tank pressures up to 50 psi at ambient temperatures up to 220 deg F. Occasional replacement of the quad ring seal may be necessary.
Manuals and Documentation
Features
- A complete line of switches designed for open or closed tank applications they detect rising or falling liquid levels in various types of containers
- Float movement is transmitted through a quad ring seal
- Standard (contacts close on liquid rise)
- 2 to 5 in adjustable float moment
- Liquid level control
| Manufacturer Part Number | 9037HR33 |
| Brand | Telemecanique |
| Manufacturer | YAGEO Corporation |
| UPC | 785901075486 |
| EAN | 0785901075486 |
| Country Of Origin | MX |
| Enclosure Type | NEMA 7/9 |
| Mounting Type | Screw-In Bushing |
| Series | 9037 |
| Type | Type H |
| Voltage Rating | 575 V AC |
| Alternative Part Number | 8007351 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ECCN EAR99 | CE Certified | CSA File LR26817 | REACH Compliant | UL 508/698/File E12443 | PROP65: This product can expose you to chemicals including: Lead and lead compounds | which is known to the State of California to cause cancer and birth defects or other reproductive harm and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Closed Tank Application |
| Connection Type | Screw Clamp |
| Operating Temperature | -22 to 220 deg F |
