Telemecanique

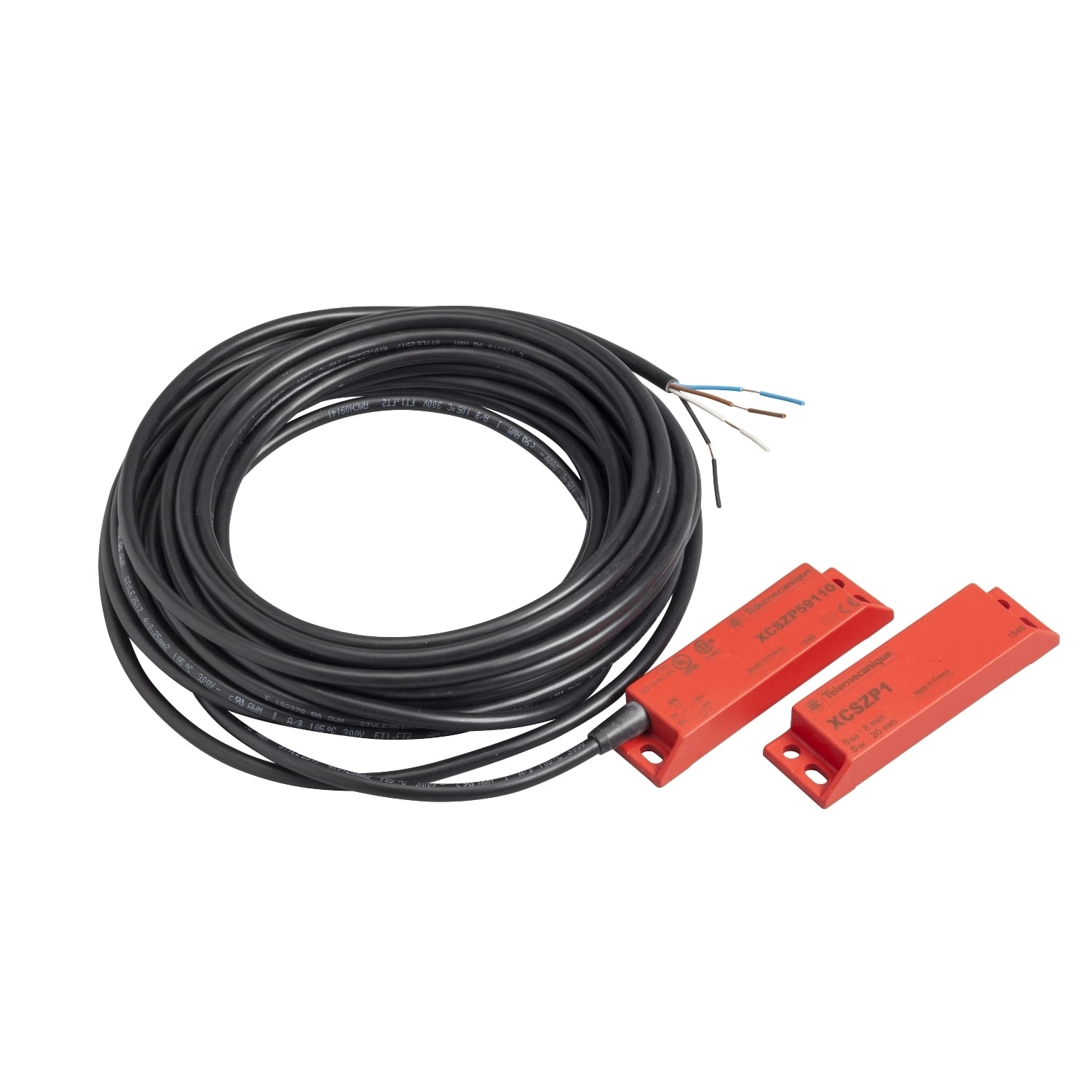

XCSDMP50110 Preventa 3-Direction 3-Pole Standard Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 2NO-1NC Contact, Rhodium Contact

MFR:
Telemecanique Sensors
MFR #:
XCSDMP50110
Item #:
249593

Availability

Location Available Qty
Available Available to Order
$210.25 each

The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. This coded magnetic system, detects without contact. 3 approach directions. It features a rectangular plastic boby, 88mm x 25mm x 13mm, and a 10m long pre-cabled electrical connection . 3-pole contact 1 NC + 2 NO (1 NO staggered). It can reach category 4 Safety Level with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach PL equal e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach SIL 3, with the appropriate monitoring system and correctly wired, conforming to EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSDMP50110
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Action 1 NO staggered
Amperage Rating 100
Connection Pre-cabled
Contact Configuration 1 NC + 2 NO
Enclosure Thermoplastic PBT
Special Features 1 LED
Standard 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60204-1-EN/ISO 12100-ISO 14119,IP66 IEC 60529-IP67 IEC 60529,UL-BG-CSA,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859012&lang=en-us
GTIN 03389110971972
Item Type Coded magnetic switch
Size 88 x 25 x 13 mm
Operating Temperature -25-85 A Degrees C
Voltage Rating 24 V DC
