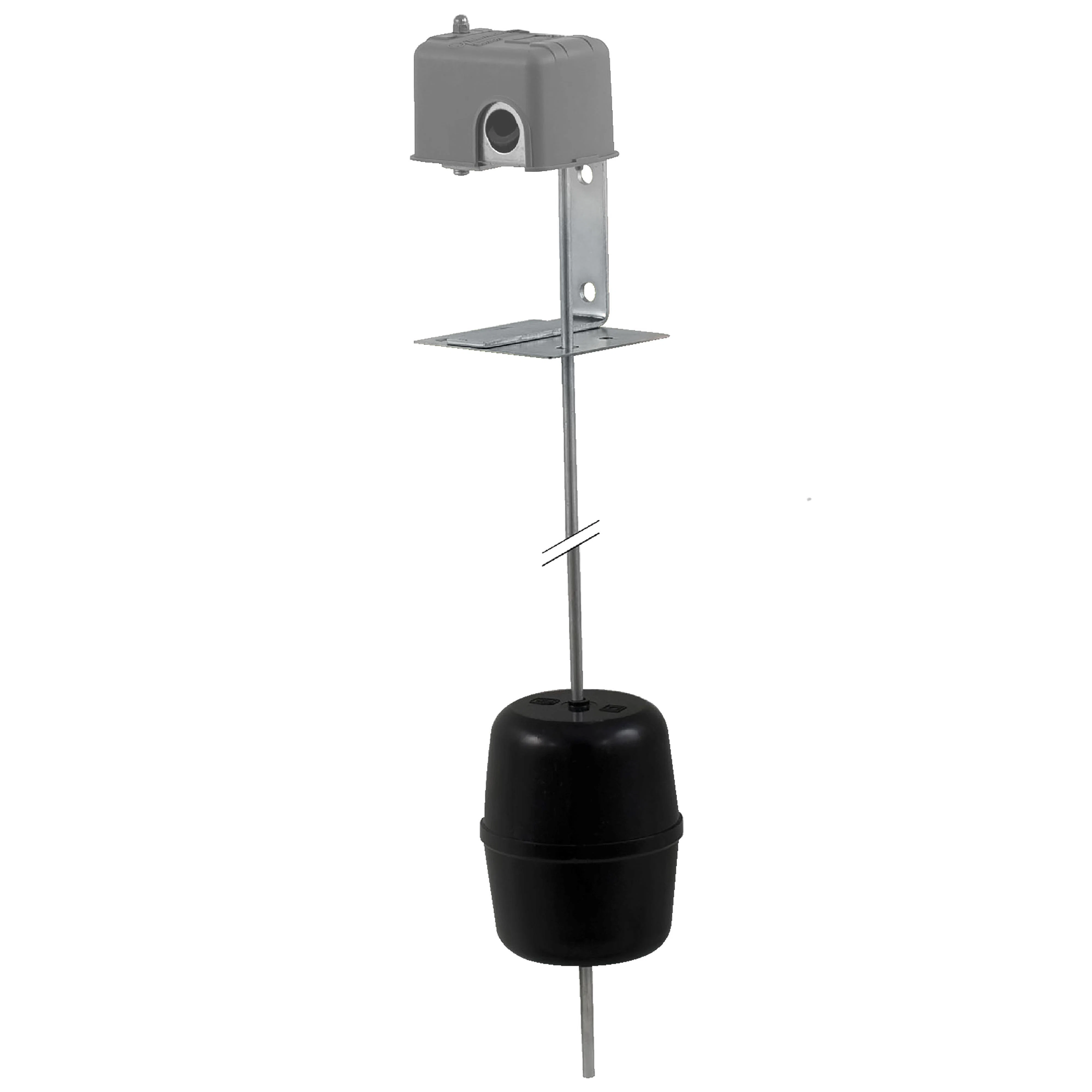

Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts
- MFR:
- Schneider Electric
- MFR #:
- 9036FG30
- UPC:
- 785901009207
- Item #:
- 249421
Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts
- MFR #:
- 9036FG30
- UPC:
- 785901009207
- Item #:
- 249421
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$45.09
each
Square D™ Pumptrol™ Float Switch, Adjustable Level Control Open Tank Pedestal Style DPST, Series: 9036, 575 V AC Input, 10 AWG Screw Clamp Connection, -22 to 220 deg F, Polypropylene
Manuals and Documentation
Features
- 2NC DPST contacts
- Three knockouts for 1/2 in conduit UL 508 cable entry number
- Contacts close on liquid rise contact operation
- 16 oz force down to trip
- 16 oz force upto trip
- 100 cycles at 60 cycles/min electrical durability
- 300 cycles mechanical durability
- Four-terminal, 60 cycles/min operating rate
- 1 hp power rating
- Zinc plated steel or equivalent, nylon, polystyrene, aluminum material in contacts with fluid
- Vertical operating position
- Without local signaling
- 4 to 31 in adjustable float movement
- Pedestal/surface mounting
- NEMA 1 enclosure
- 4 to 31 in sensing range
- Screw clamp terminal connection
- Without 20 A cartridge fuse
| Manufacturer Part Number | 9036FG30 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901009207 |
| EAN | 0785901009207 |
| Country Of Origin | MX |
| Material | Polypropylene |
| Series | 9036 |
| Temperature Rating | -22 to 220 deg F |
| Type | Adjustable Level Control Open Tank Pedestal Style DPST |
| Alternative Part Number | 8142452 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | UL 50/508 File No. E12158 | CSA File No. LR25490 | CE Marked | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Application | Liquid Level Control and General Purpose Applications |
| Connection Size | 10 AWG Screw Clamp |
| Input | 575 V AC |
