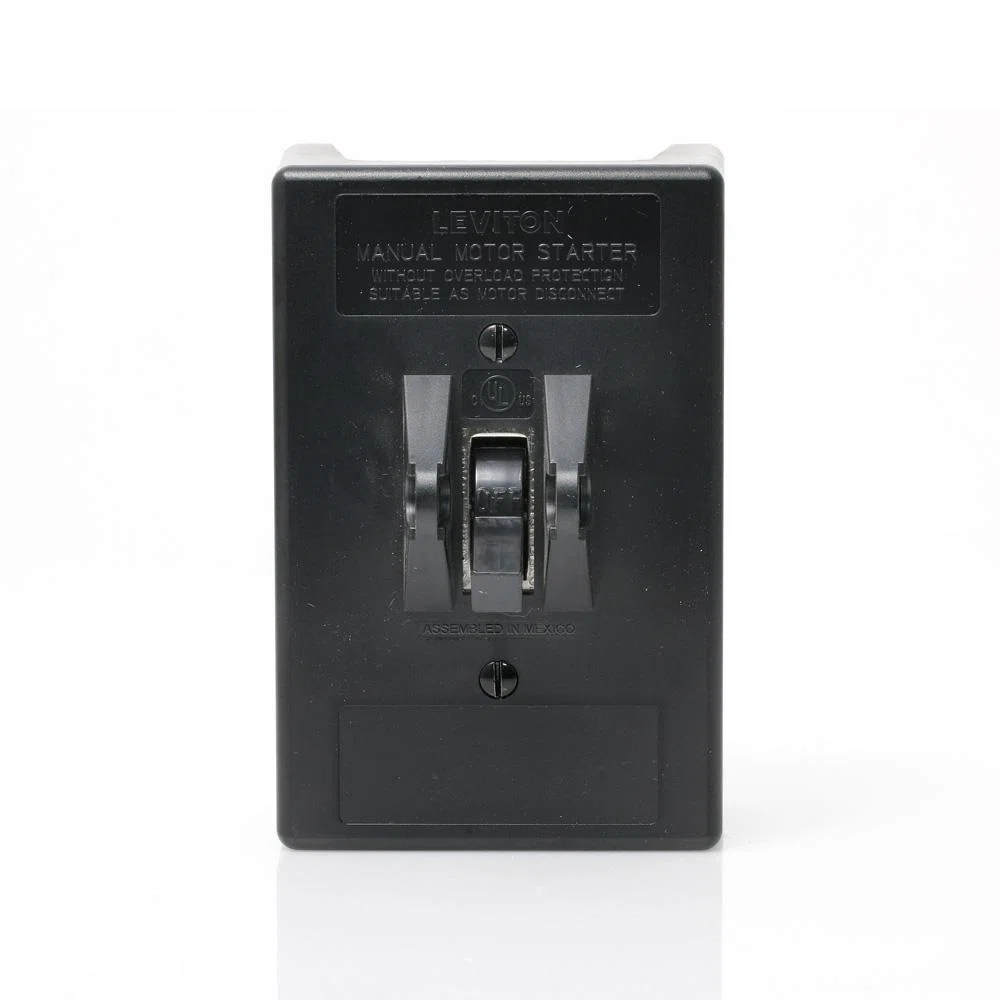

N1303-TDS Powerswitch Type 1 Grounding Industrial Grade Manual AC Motor Starter Switch, 600 V AC, 30 A, 20 hp Power Rating, 3PST Contact
- MFR:
- Leviton
- MFR #:
- N1303-TDS
- UPC:
- 078477374399
- Item #:
- 24906
N1303-TDS Powerswitch Type 1 Grounding Industrial Grade Manual AC Motor Starter Switch, 600 V AC, 30 A, 20 hp Power Rating, 3PST Contact
- MFR #:
- N1303-TDS
- UPC:
- 078477374399
- Item #:
- 24906
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$163.90
each
The power switch® line of industrial grade AC manual motor controllers provide safe, reliable control of a variety of motor loads. Suitable for use as motor disconnect, these switches are available for both 1 and 3-phase applications, with a continuous current rating at voltages up to 600 VAC and maximum horsepower ratings of 30 hp.
Manuals and Documentation
Features
- All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
| Manufacturer Part Number | N1303-TDS |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477374399 |
| Country Of Origin | MX |
| Amperage Rating | 30 A |
| Color | Black/Gray |
| Dimensions | 3.33 in W x 3.24 in D x 5.01 in H |
| Enclosure | NEMA WD-1/WD-6 |
| Material | Polyester |
| Type | Type 1 Grounding Industrial Grade Manual |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 9921282 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 10 Years Limited |
| Standards Approvals | ANSI C73 | cUL per CSA C22.2 No. 111 (File E63969) Certified | NOM-ANCE Certified | UL 60947-4-1 Supersedes UL 508 | UL94 V-0 Flammability Rating |
| Application | Commercial Applications |
| Actuator | Toggle |
| Connection | Back/Side Wire/Screw |
| Contact Configuration | 3PST |
| Contact Rating | 30 A at 600 V AC |
| Environmental Conditions | -40 to 60 deg C Operating Temperature |
| Number Of Poles | 3 |
| Operating Cycles | 6000 Cycles |
| Power Rating | 20 |
