VCCF5 TeSys Emergency Stop High Performance Open Main Disconnect Switch, 690 V AC, 68.5 A, 3NO 3 Form A Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- VCCF5
- Item #:
- 249
VCCF5 TeSys Emergency Stop High Performance Open Main Disconnect Switch, 690 V AC, 68.5 A, 3NO 3 Form A Contact, 3 Poles
- MFR #:
- VCCF5
- Item #:
- 249
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$612.51
each

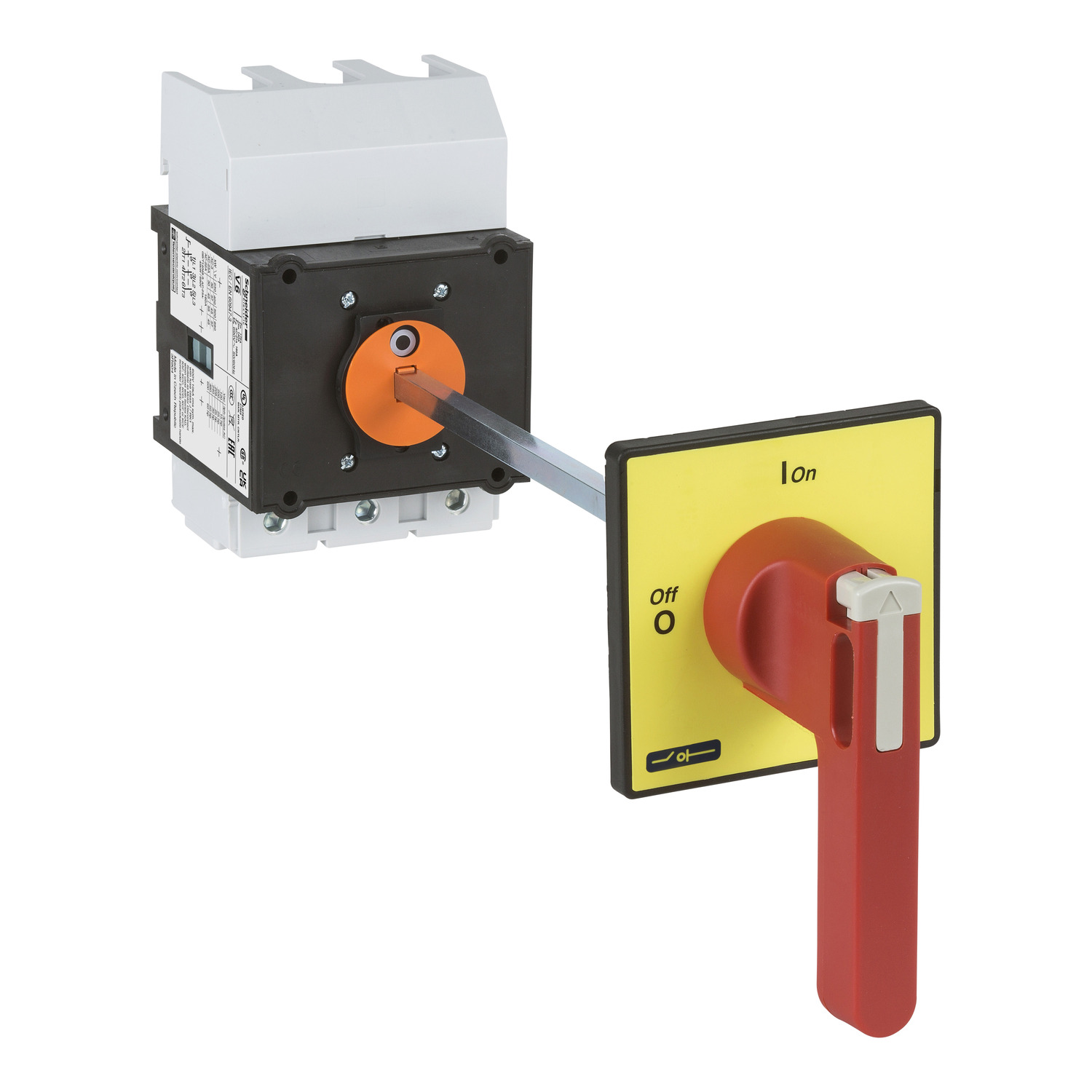

VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | VCCF5 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Actuator | Red;Rotary handle |
| Connection | Power circuit screw clamp terminals 95-95 mm² solid;power circuit screw clamp terminals 70-70 mm² flexible - with cable end |
| Contact Configuration | 3 NO |
| Mounting | Screw |
| Number of Poles | 3 |
| Special Features | 1 to 3 padlocks 4-8 mm;High performance |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643480&lang=en-us |
| GTIN | 03389110804652 |
| Item Type | Emergency stop switch disconnector |
| Size | 90 x 90 mm |
