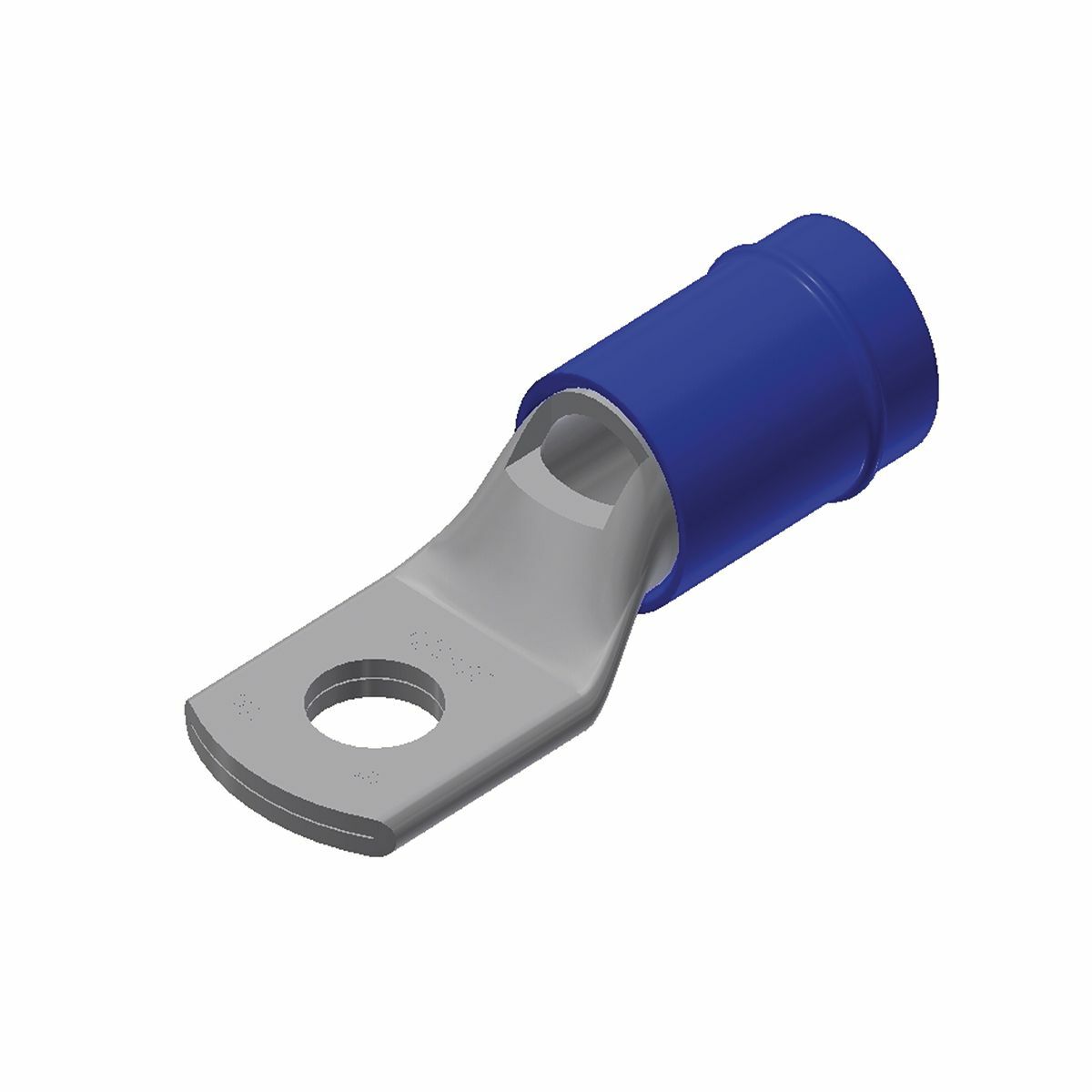

YAEV6CL1 YAEV-L 1-Hole Heavy Duty Compression Lug With Inspection Hole, 6 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAEV6CL1
- UPC:
- 781810027714
- Item #:
- 242541
YAEV6CL1 YAEV-L 1-Hole Heavy Duty Compression Lug With Inspection Hole, 6 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
- MFR #:
- YAEV6CL1
- UPC:
- 781810027714
- Item #:
- 242541
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4.69
each
Manuals and Documentation
| Catalog Number | YAEV6CL1 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants |
| Insulation | Y |
| Material | Copper |
| Special Features | Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Package: Bulk, Temperature Rating: 105 DEG C Maximum, Insulation Diameter (maximum): 0.313 IN, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC Tool, DEV6L Die Nest, Y29PLE-1 Die Indentor, Installation Tool: Non-Ratchet: MY28-6 Tool, Hydraulic: Y35, Y39 Tool With U6CET Die Set, Wire Shroud: No, Sae-as25036: -119, Finish: Electro-Tin Plated, Conductor Type: Commercial/Military Stranded Copper, Color Code: Blue, Wire Strip Length: 1/2 IN, Tongue Angle: Straight |
| Standard | UL486;Military Specified (Mil-Spec) |
| UPC | 781810027714 |
| GTIN | 00781810027714 |
| Item Type | YAEV-L, Heavy Duty |
