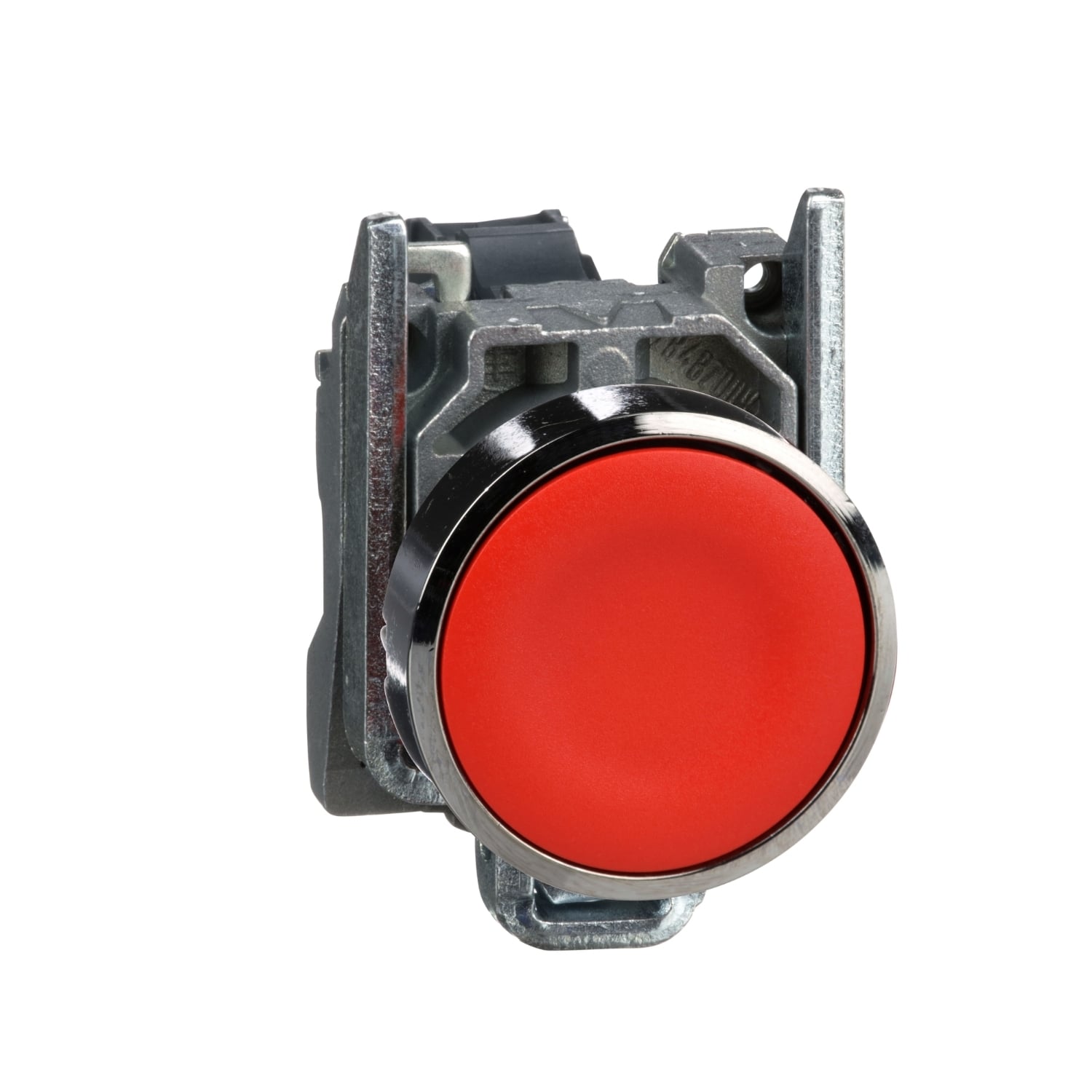

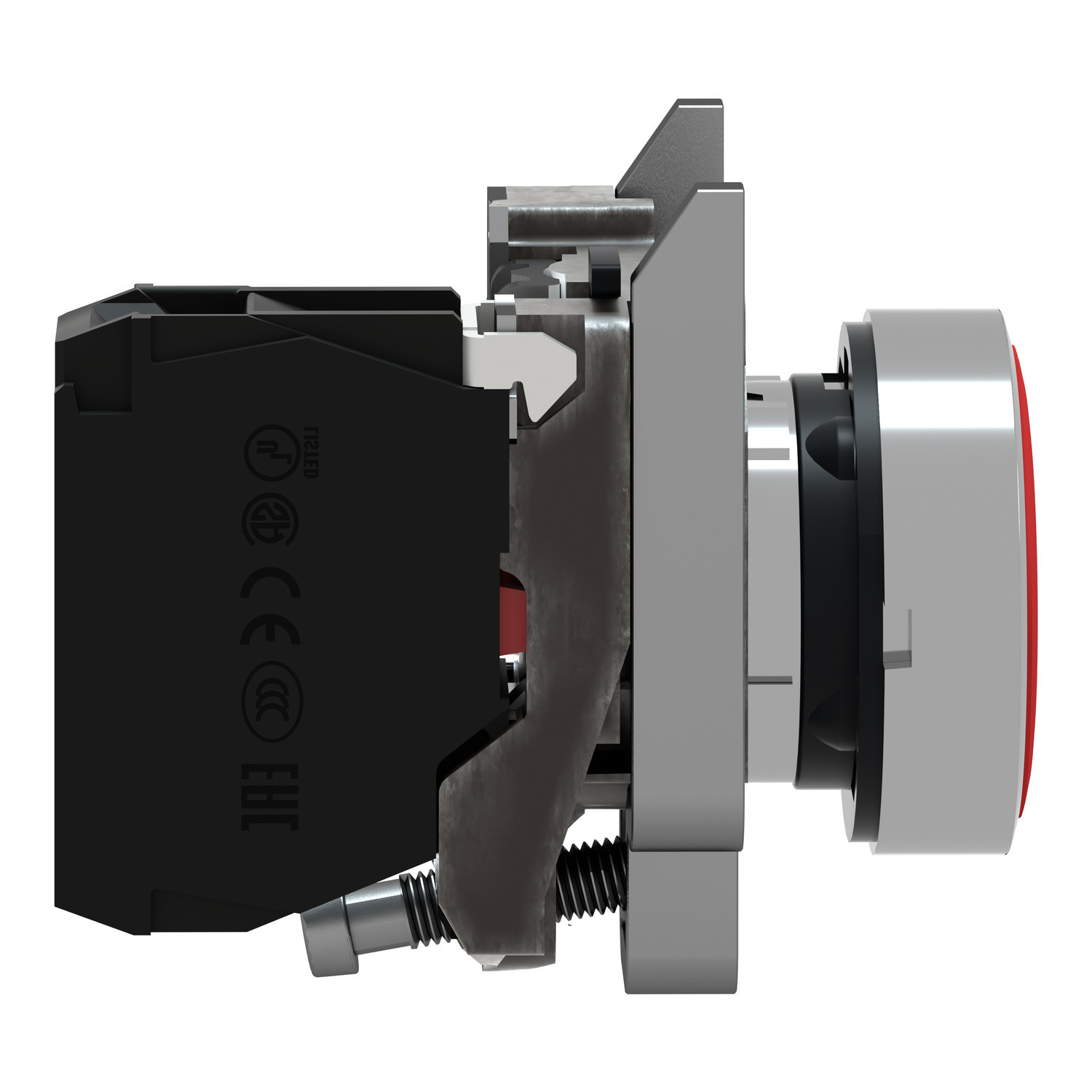

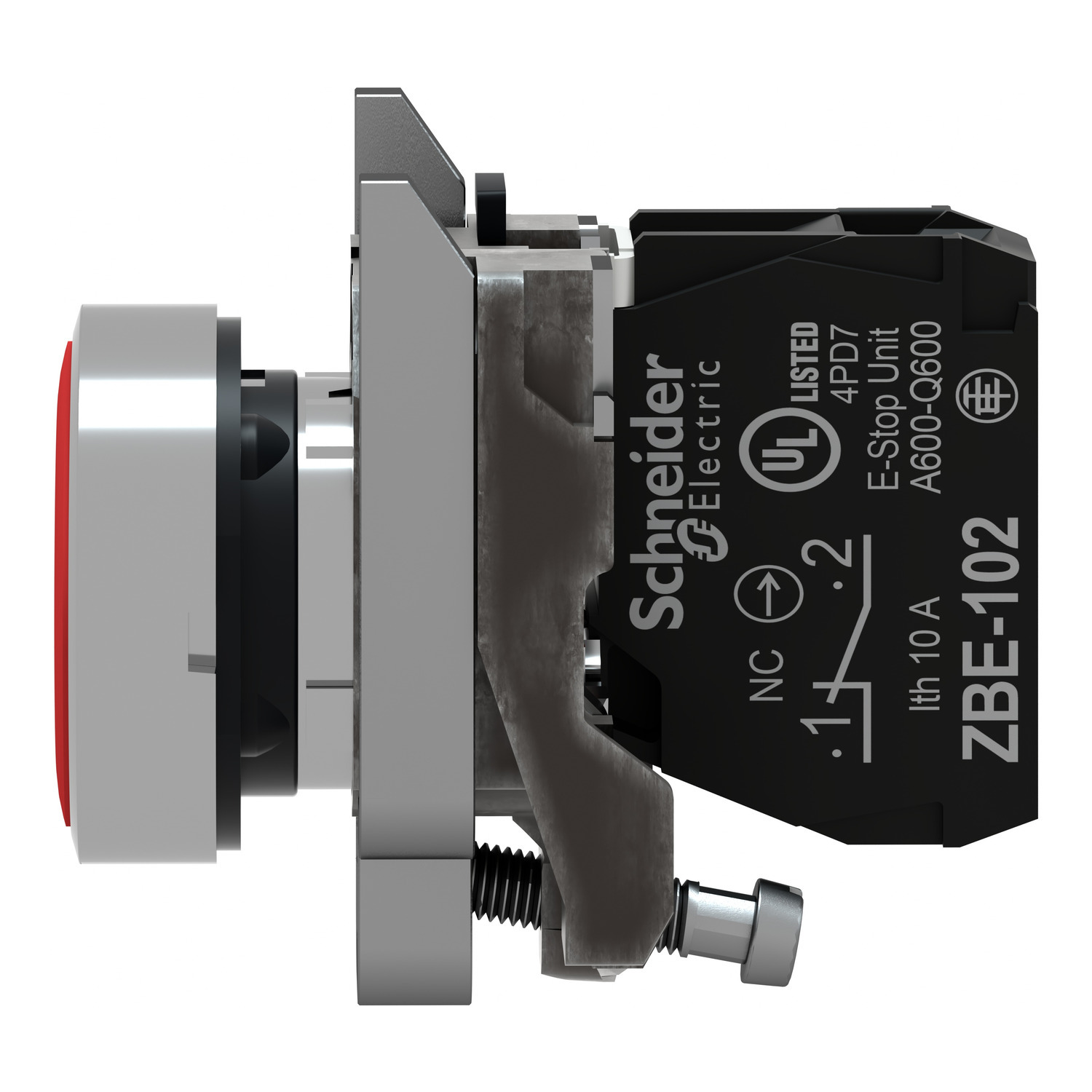

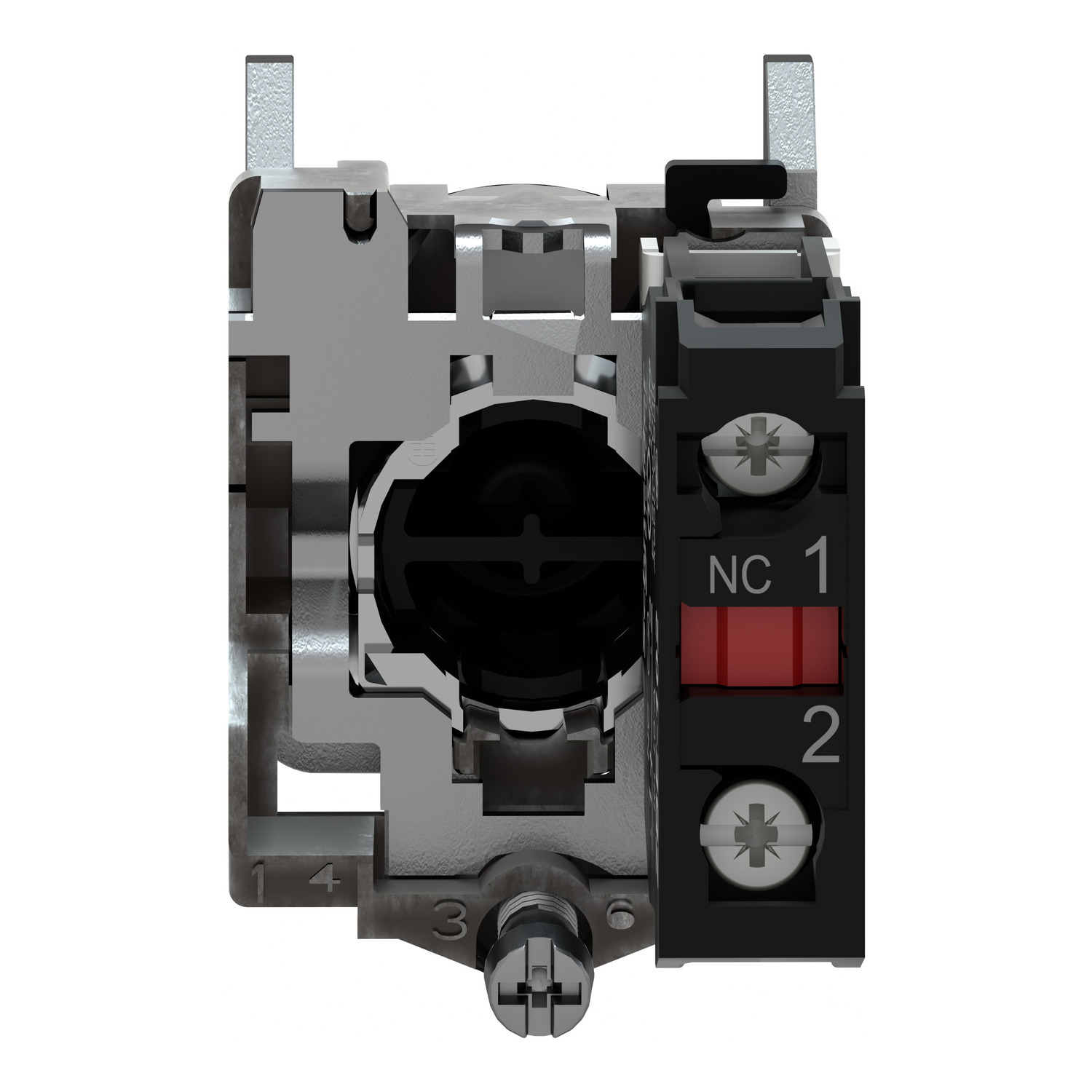

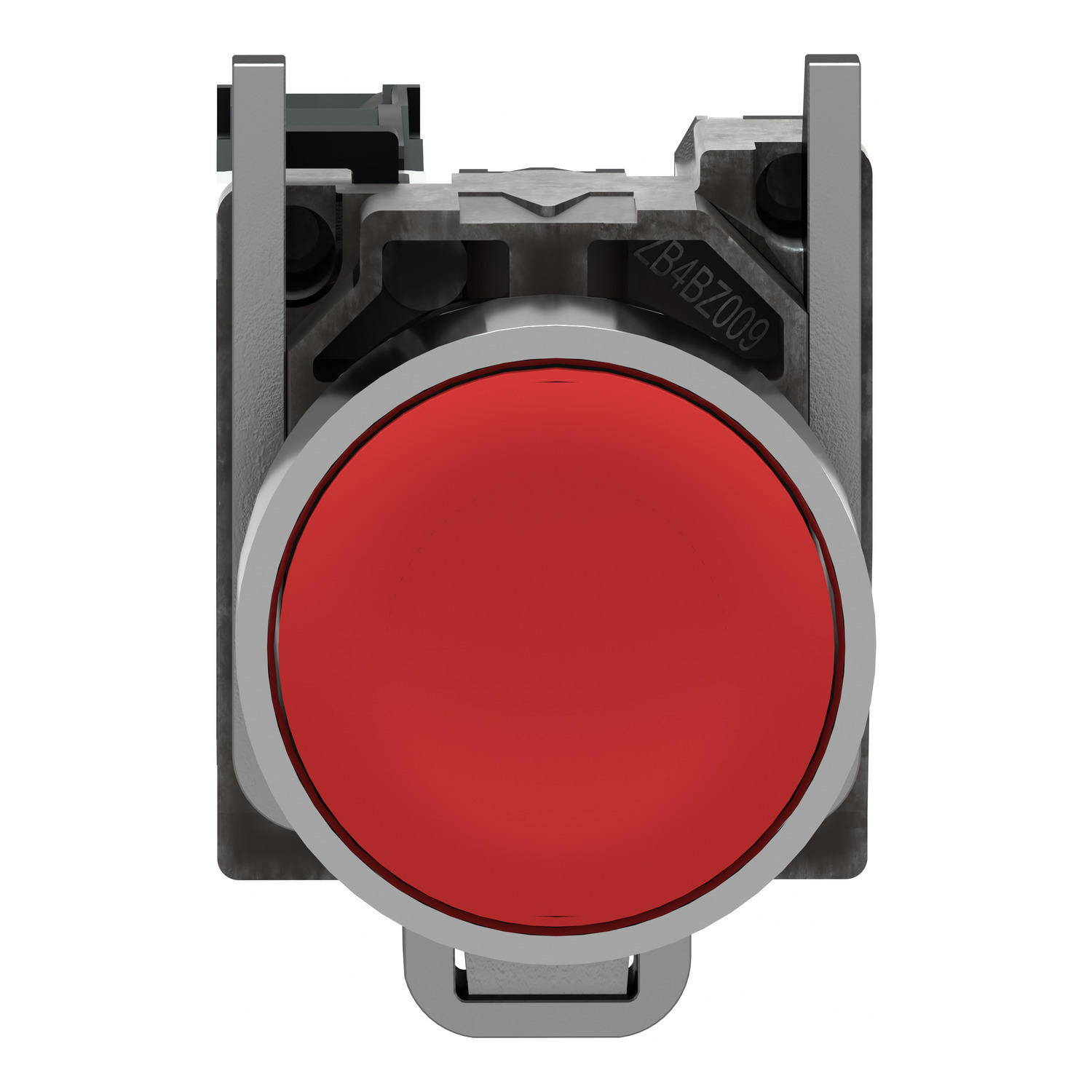

XB4BA42 Harmony Non-Illuminated Pushbutton, 22 mm, 1NC Contact, Flush Operator, Red
- MFR #:
- XB4BA42
- UPC:
- 785901380481
- Item #:
- 24247
XB4BA42 Harmony Non-Illuminated Pushbutton, 22 mm, 1NC Contact, Flush Operator, Red
- MFR #:
- XB4BA42
- UPC:
- 785901380481
- Item #:
- 24247
Product Details
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Manuals and Documentation
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection - screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- Large set of accessories to customize your panels
Specifications
Identifiers
| Manufacturer Part Number |
XB4BA42
|
|---|---|
| GTIN |
03389110886962
|
| UPC |
785901380481
|
|---|---|
| EAN |
3389110886962
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
FR
|
| Warranty |
18 months
|
|---|---|
| Standards Approvals |
Buy American Act Compliant | BV Certified | CCN NKCR | CE Marked | CSA C22.2 No. 14 | CSA File No. LR44087 Class 321103 | DNV Certified | EN/IEC 60947-1 | EN/IEC 60947-5-1 | EN/IEC 60947-5-4 | EN/IEC 60947-5-5 | GL Certified | JIS C 4520 | Lloyd's Register Certified | RINA Certified | RoHS Compliant | UL 508 | UL File No. E164353 | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
| Application |
Indoor/Outdoor Applications
|
Dimensions
| Size |
22 mm
|
|---|
Technical Information
| Actuator |
Round Button
|
|---|---|
| Bezel Housing |
Chromium Plated Metal
|
| Color |
Red
|
| Contact Configuration |
1NC
|
| Contact Mode |
Momentary
|
| Contact Rating |
10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC
|
| Enclosure Type |
NEMA 4/4X/13
|
| Environmental Conditions |
-40 to 70 deg C Operating Temperature
|
|---|---|
| Legend |
Unmarked
|
| Mounting Type |
Panel
|
| Operator Type |
Flush
|
| Series |
XB4
|
| Terminal Type |
Screw Clamp
|
