Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.
Manuals and Documentation
Features
- On/Off rotary handle with lockout provision
- Visible trip indication
- Class 10 overload protection
- Phase loss sensitivity
- Fixed short circuit trip 14 times maximum setting of overload FLA dial
- Identification markers standard on starter faceplate
- Built-in heater and magnetic trip elements to protect the motor
- Adjustment dial for setting to motor FLA
- Class 10 trip
- 45 mm frame

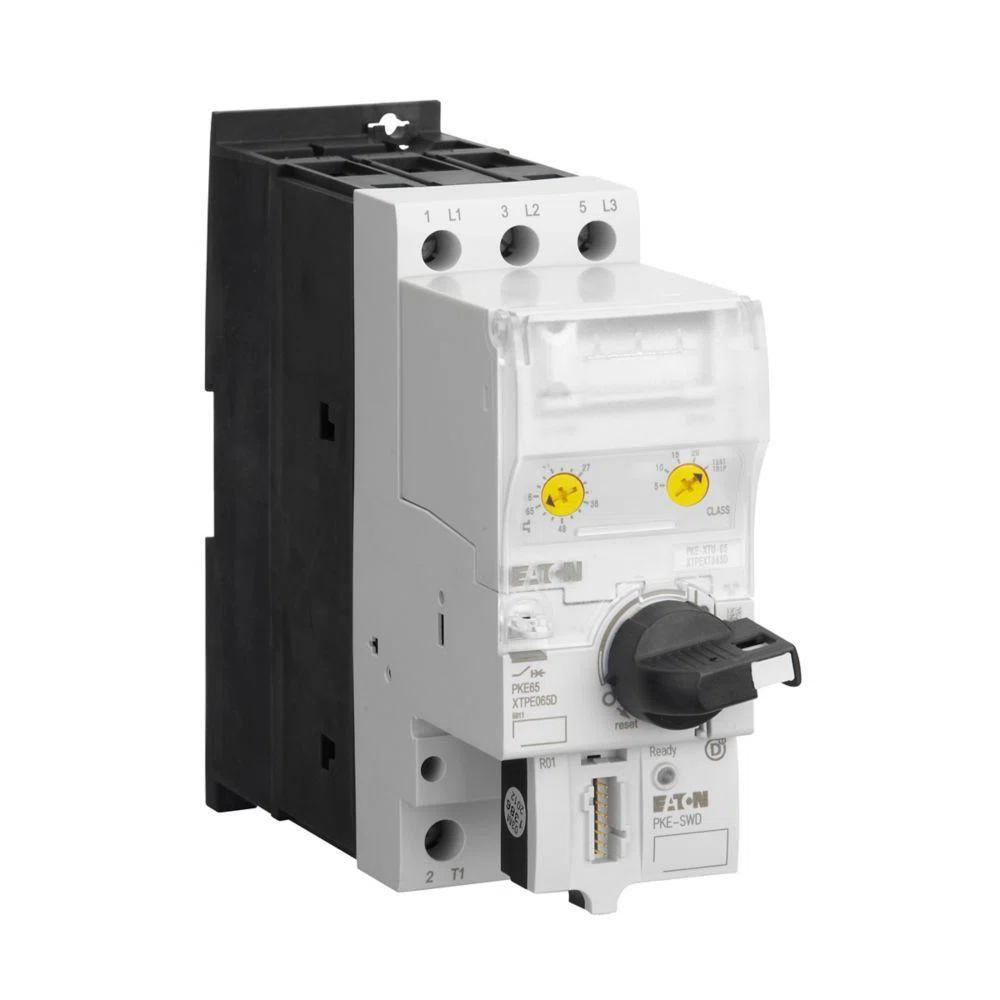

| Manufacturer Part Number | XTPE012BCS |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 786685491127 |
| Country Of Origin | DE |
| Dimensions | 2 in L x 4 in W x 4-1/4 in H |
| Series | XT Series |
| Voltage Rating | 690 V AC |
| Alternative Part Number | 11170113 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 year |
| Standards Approvals | CSA Std. C22.2,UL 508 |
| Application | Commercial / Institutional Buildings / Structures - Safety and Security Systems |
| Motor Power | 7.5 hp |
| Overload Relay | Electronic |
| Phase | 3 |
| Reset Type | Manual |
| Setting | 3 to 12 A |
