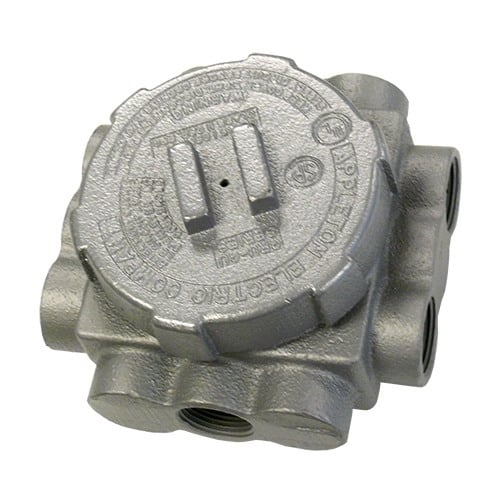

Explosionproof Conduit Outlet Box, Dust-Ignitionproof, Series: GRUJ, 3/4 in Size, 3-1/4 in Cover Opening, 25 cu-in Capacity, For Use With: Threaded Metal Conduit System, Malleable Iron, Triple Coated Finish, 4.88 in H x 4.88 in W x 1.5 in D Dimensions
MFR: Appleton Electric
MFR #: GRUJ-1P
UPC: 781381445658
Item #: 24208
Explosionproof Conduit Outlet Box, Dust-Ignitionproof, Series: GRUJ, 3/4 in Size, 3-1/4 in Cover Opening, 25 cu-in Capacity, For Use With: Threaded Metal Conduit System, Malleable Iron, Triple Coated Finish, 4.88 in H x 4.88 in W x 1.5 in D Dimensions
MFR #: GRUJ-1P
UPC: 781381445658
Item #: 24208
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$275.55
each
UNILETS GRUJ Outlet Box, Number Of Outlet: 7, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN 3/4 IN Hub On Each Side, (2) 3/4 IN 3/4 IN Hub On Top, (1) 3/4 IN 3/4 IN Hub At Bottom, Cubic Capacity: 25 CU-IN, Knockouts: No,
Manuals and Documentation
Features
- Explosion proof
- Dust-Ignition proof
- For use with threaded metal conduit
- UL listed
- CSA certified
- Catalog Number
- GRUJ-1P
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Metal Conduit
- Cable Entry
- (2) 3/4 IN 3/4 IN Hub On Each Side, (2) 3/4 IN 3/4 IN Hub On Top, (1) 3/4 IN 3/4 IN Hub At Bottom
- Cubic Capacity
- 25 CU IN
- Knockouts
- No
- Material
- Malleable Iron
- Special Features
- Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with cover; General purpose wiring; Union hubs permit easy wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance; Furnished with close-up plugs for all but three 3/4 IN hubs
- Standard
- UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381445658
- GTIN
- 00781381445658
- Item Type
- GRUJ Outlet Box
- Length
- 7.5000
- Length UOM
- Inch
- Width
- 7.0000
- Width UOM
- Inch
- Height
- 4.5000
- Height UOM
- Inch
- Weight
- 6.000
- Weight UOM
- Pounds
- Size
- 3/4
