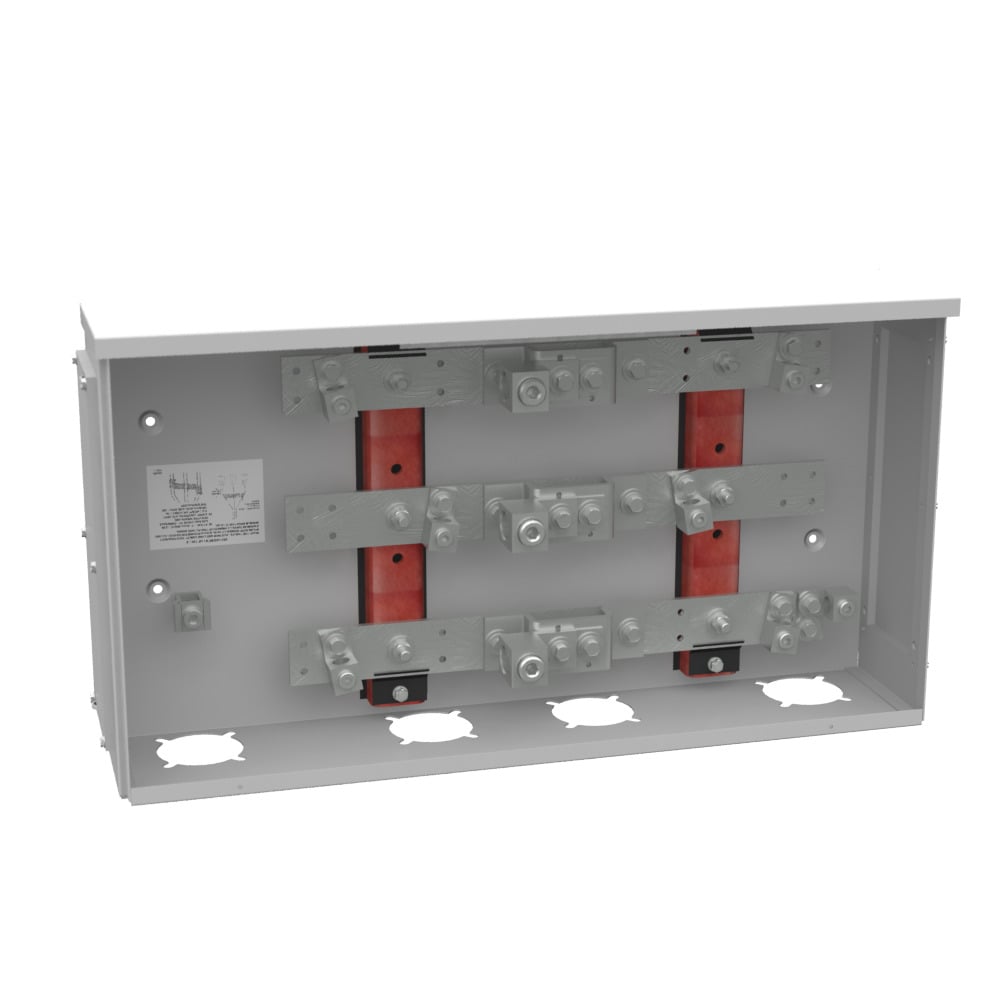

400 Ampere 1phase 600 Volt 28in-15in-6in Painted Steel Lift Off Screw Front 1 Lug Per Landing - 4-600kcmil 2 Lugs Per Landing - 6-250kcmil 42k Ampere Interrupting Capacity t
- MFR:
- Milbank
- MFR #:
- BC214
- UPC:
- 784572111318
- Item #:
- 241777
400 Ampere 1phase 600 Volt 28in-15in-6in Painted Steel Lift Off Screw Front 1 Lug Per Landing - 4-600kcmil 2 Lugs Per Landing - 6-250kcmil 42k Ampere Interrupting Capacity t
- MFR #:
- BC214
- UPC:
- 784572111318
- Item #:
- 241777
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,537.79
each
400 AMP 1 PH 600 VOLT 28IN-15IN-6IN PNTD STL LIFT OFF SCR FRONT 1 LUG PER LND - 4-600kcmil 2 LUGS PER LND - 6-250kcmil 42K AIC
Manuals and Documentation
| Catalog Number | BC214 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Bus Gutter |
| Color | Gray |
| Conductor Material | Aluminum |
| Connection | 4 AWG to 600 kcmil Line Side Lugs and 6 AWG to 250 kcmil Load Side Lugs |
| Construction | G90 Galvanized Steel |
| Finish | Powder Coat Finish |
| Insulation Material | Polypropylene |
| Jacket Material | No Jacket Material |
| Material | G90 Galvanized Steel |
| Number of Conductors | 1 |
| Phase | 1 |
| Standard | Type 3R |
| UPC | 784572111318 |
| GTIN | 00784572111318 |
| Item Type | Line to Load Distribution |
| Length | 6.125 |
| Length UOM | Inch |
| Width | 28.625 |
| Width UOM | Inch |
| Height | 15.313 |
| Height UOM | Inch |
| Size | 6.125L x 28.625W x 15.313H |
| Temperature Rating | No Temperature Rating |
| Voltage Rating | 600 V |
