Mersen

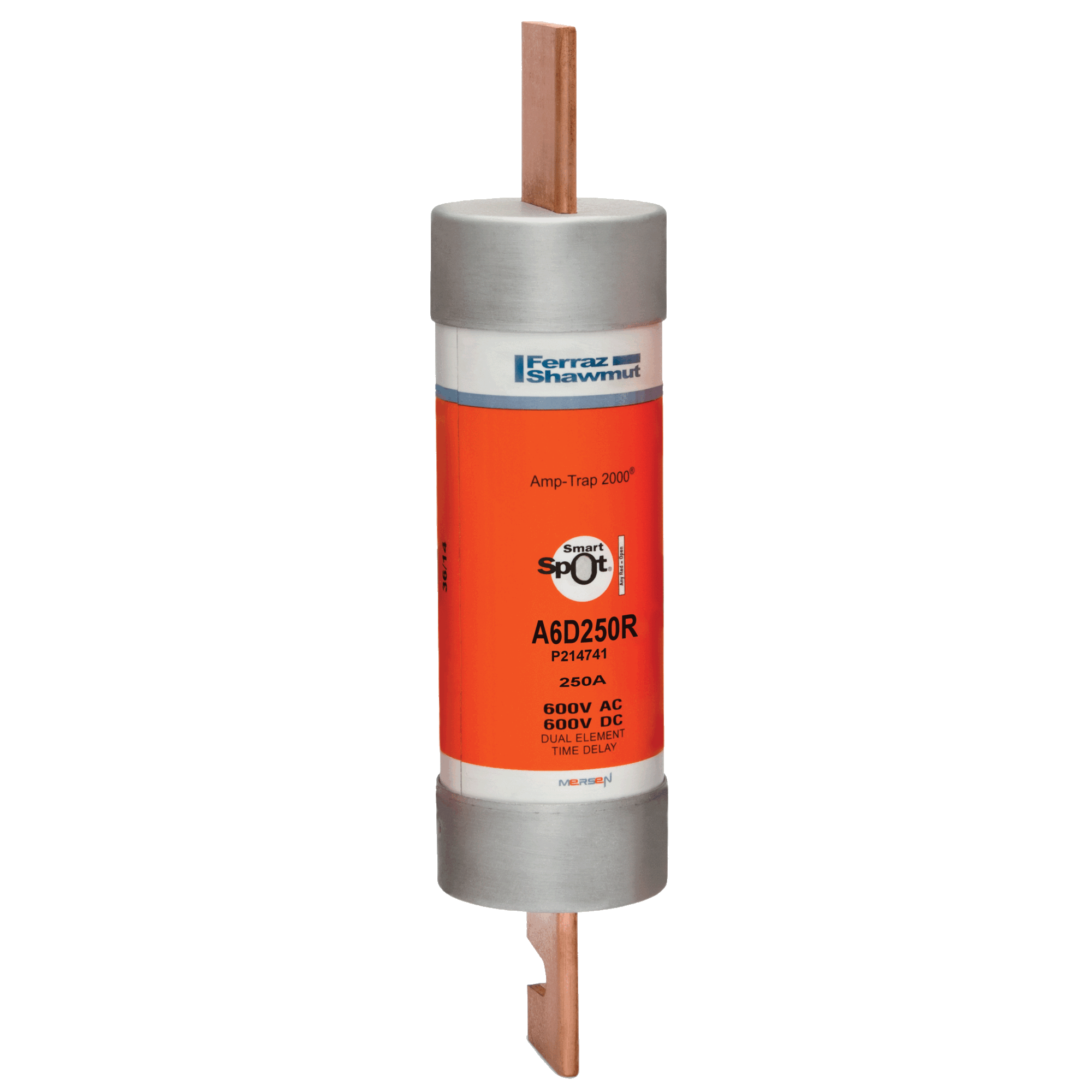

A6D250R Amp-Trap 2000 SmartSpot Current Limiting Low Voltage North American Time Delay Power Fuse, 250 A, 600 V AC, 200 kA Interrupt, RK1 Class, Cylindrical Body

MFR:
Mersen
MFR #:
A6D250R
UPC:
782001992224
Item #:
239488

Availability

Location Available Qty
Available Available to Order
$1,249.93 each

Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 250A Blade SmartSpot Amp-Trap 2000

Manuals and Documentation
Catalog Number A6D250R
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 250
Application Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits
Connection Blade
Interrupt Rating 200 KA
Mounting Clip
Special Features Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of class RK5, K, and H fuses Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings
Standard UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12
UPC 782001992224
GTIN 00782001992224
Item Type Class RK1
Size 11.63 x 2.56
Type of Indicators SmartSpot®
Voltage Rating 600
