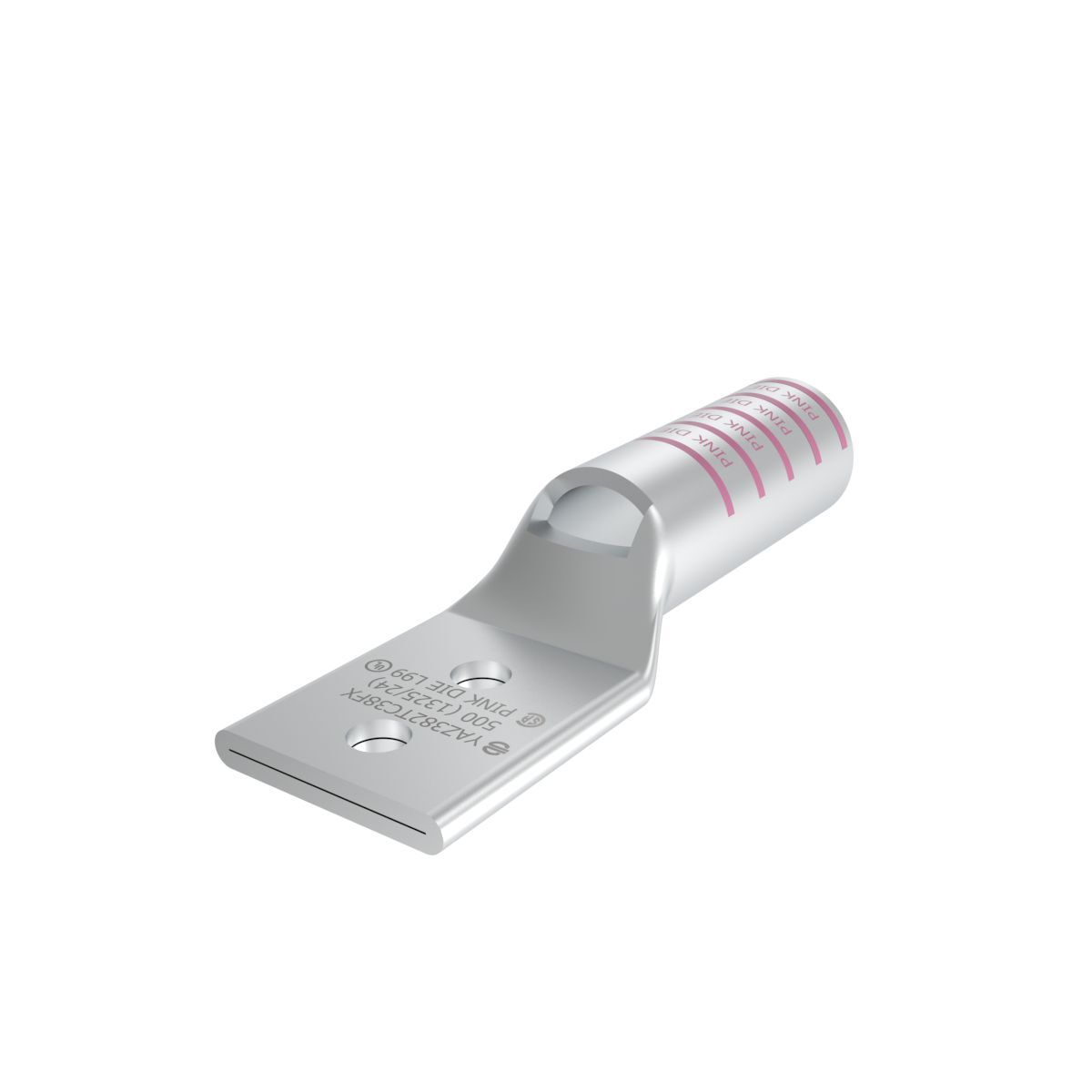

YAZ382TC38FX YAZ-2TC-FX 2-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ382TC38FX
- UPC:
- 781810135389
- Item #:
- 239399
YAZ382TC38FX YAZ-2TC-FX 2-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YAZ382TC38FX
- UPC:
- 781810135389
- Item #:
- 239399
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$185.94
each
Manuals and Documentation
| Catalog Number | YAZ382TC38FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: L99, Temperature Rating: 90 DEG C, Wire Strip Length: 2-7/8 IN, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810135389 |
| GTIN | 00781810135389 |
| Item Type | Long Barrel, Skive |
| Voltage Rating | 35 |
