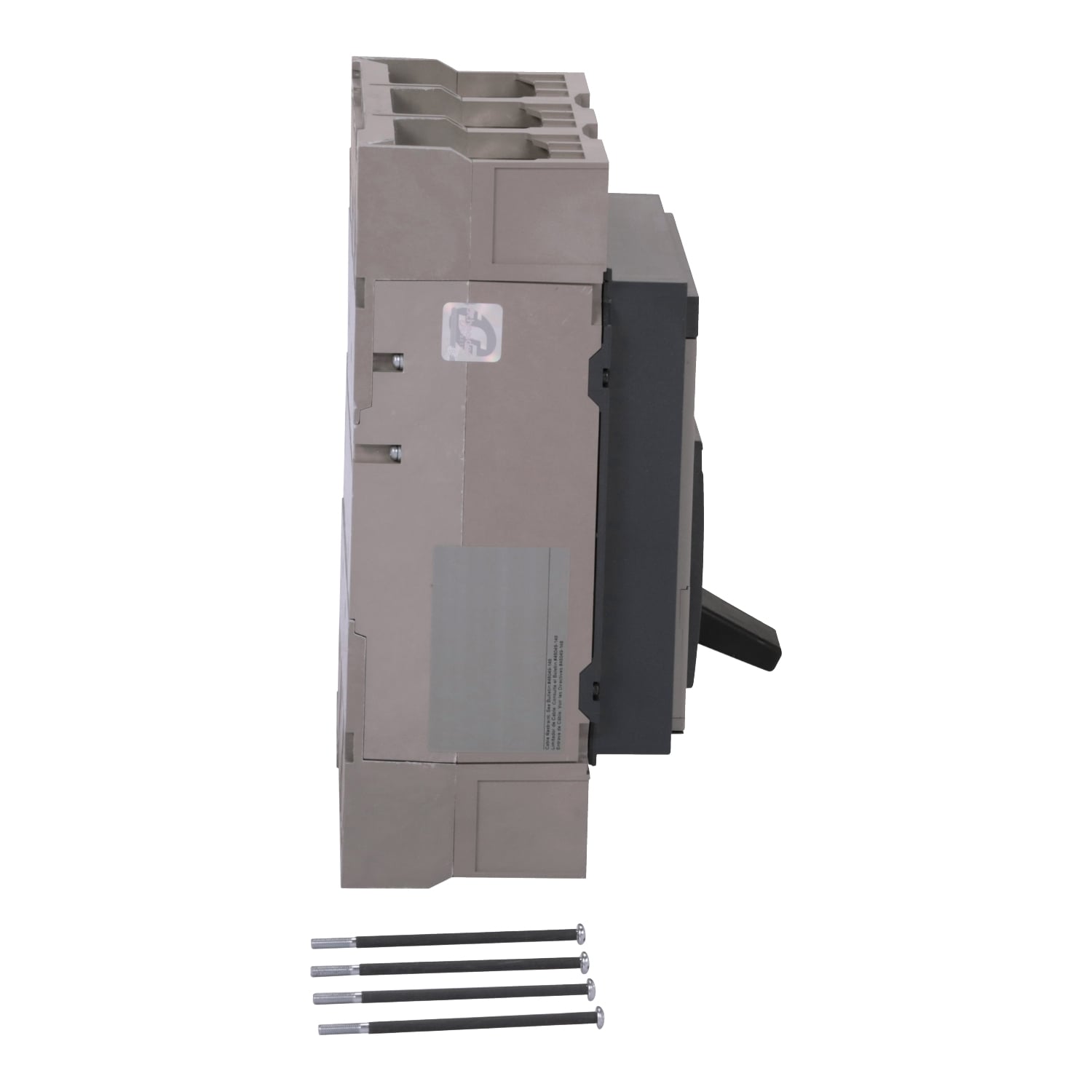

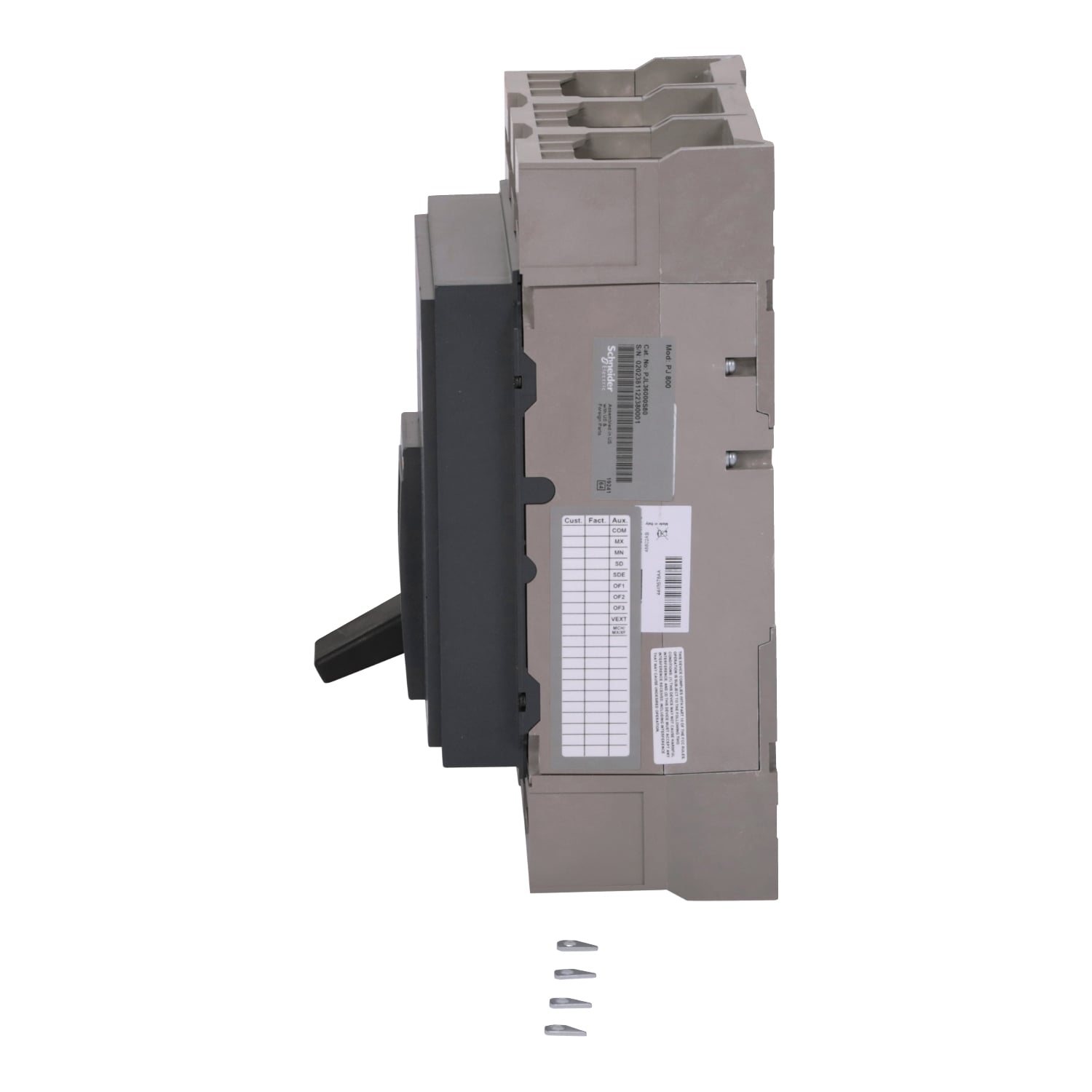

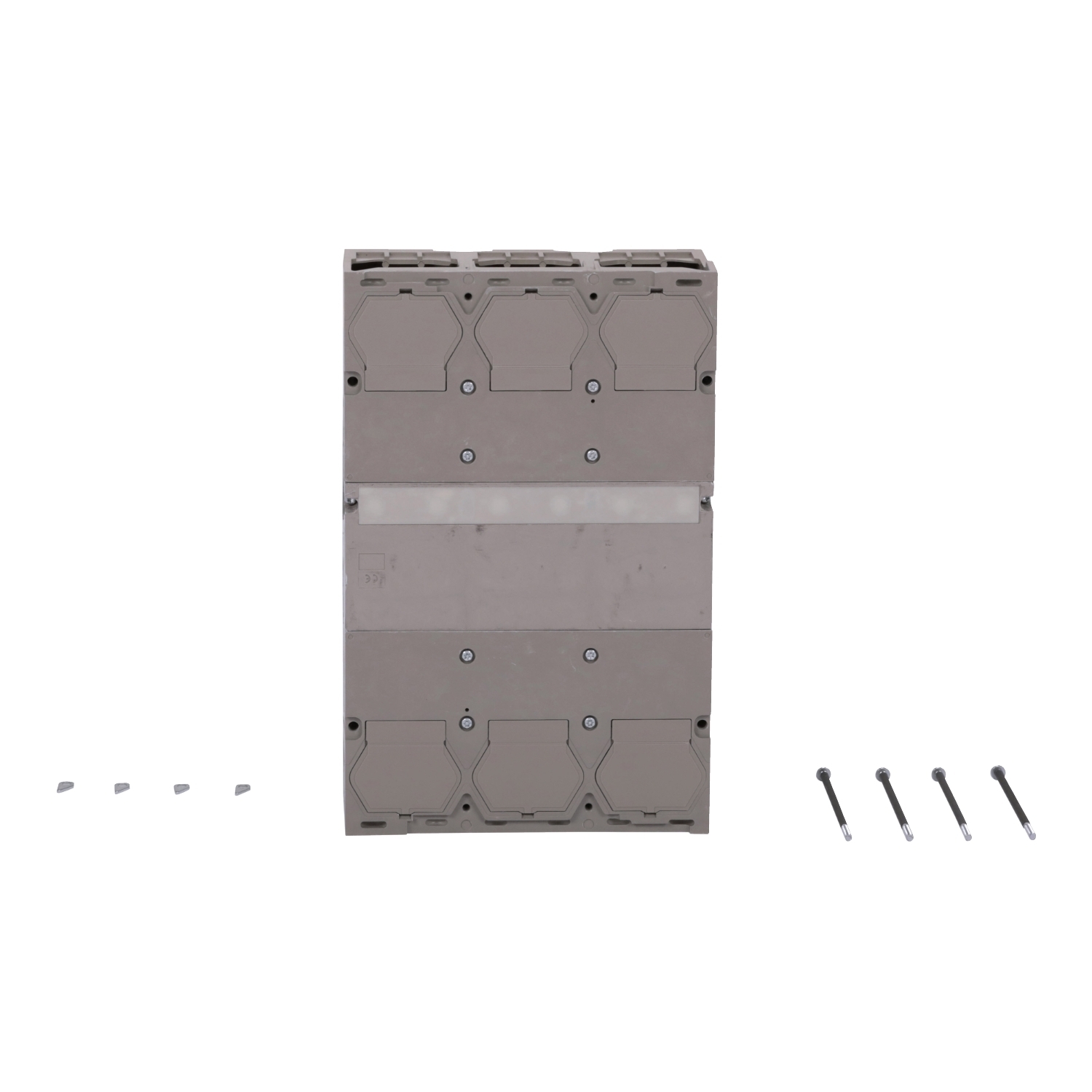

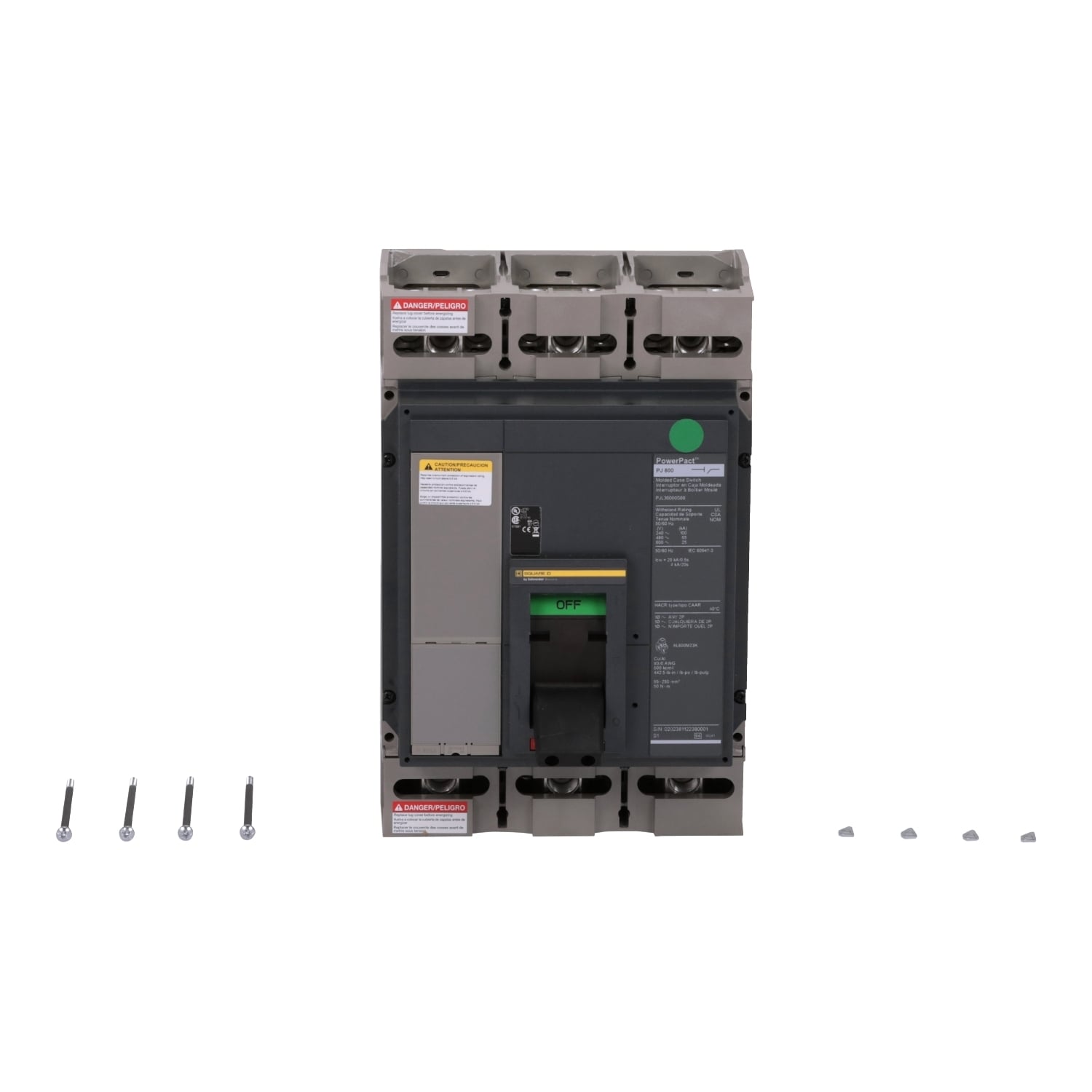

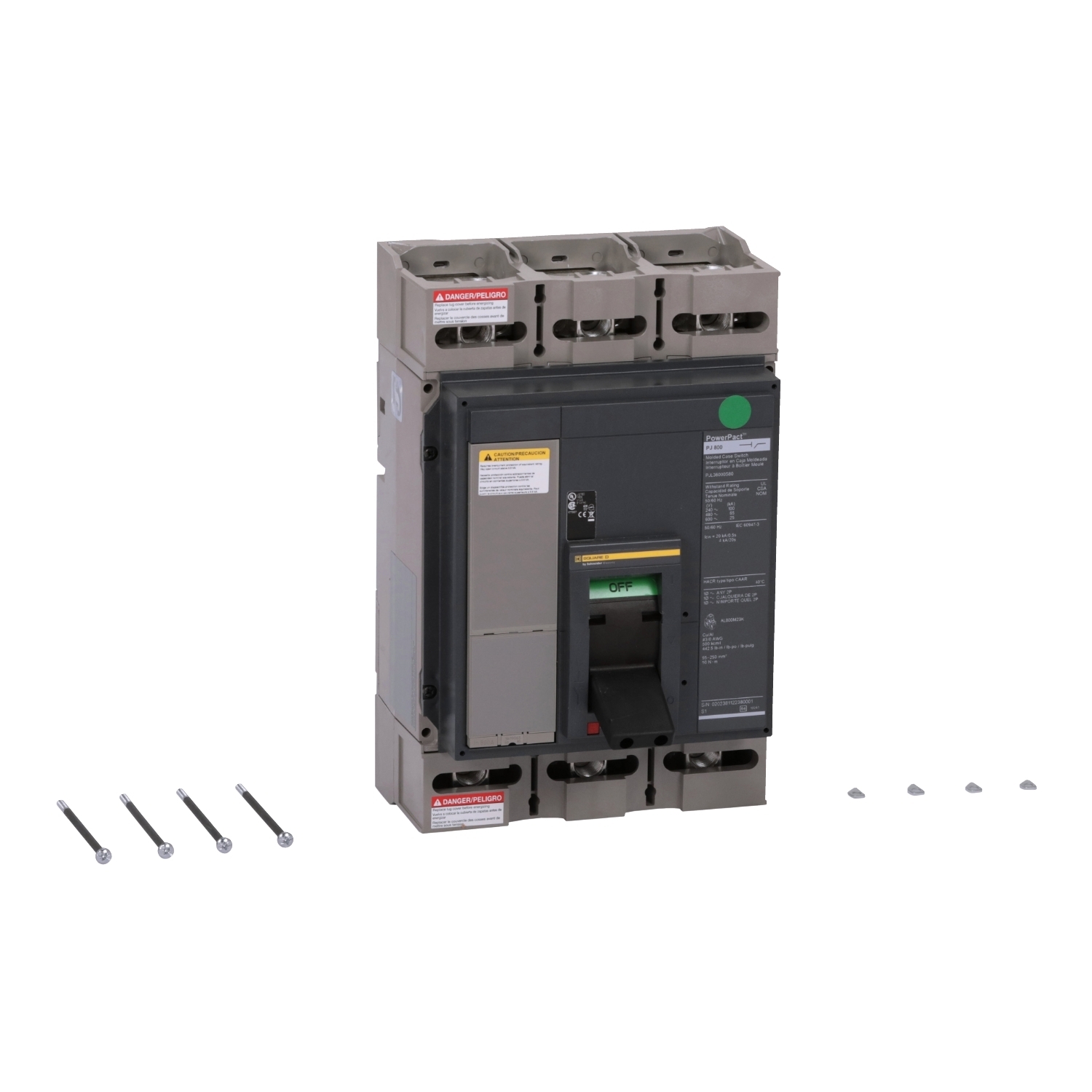

PJL36000S80 PowerPact MasterPact Automatic Molded Case Circuit Breaker, 600 V AC, 800 A, 25/65/100 kA Interrupt, 3 Poles, Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- PJL36000S80
- UPC:
- 785901863717
- Item #:
- 238526
PJL36000S80 PowerPact MasterPact Automatic Molded Case Circuit Breaker, 600 V AC, 800 A, 25/65/100 kA Interrupt, 3 Poles, Magnetic Trip
- MFR #:
- PJL36000S80
- UPC:
- 785901863717
- Item #:
- 238526
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 800A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
Manuals and Documentation
| Catalog Number | PJL36000S80 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Distribution |
| Connection | Lugs, line;lugs, load |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432657&lang=en-us |
| UPC | 785901863717 |
| GTIN | 00785901863717 |
| Item Type | Automatic switch |
| Width | 8.27 |
| Width UOM | Inch |
| Height | 12.86 |
| Height UOM | Inch |
| Depth | 8.05 IN |
