Square D

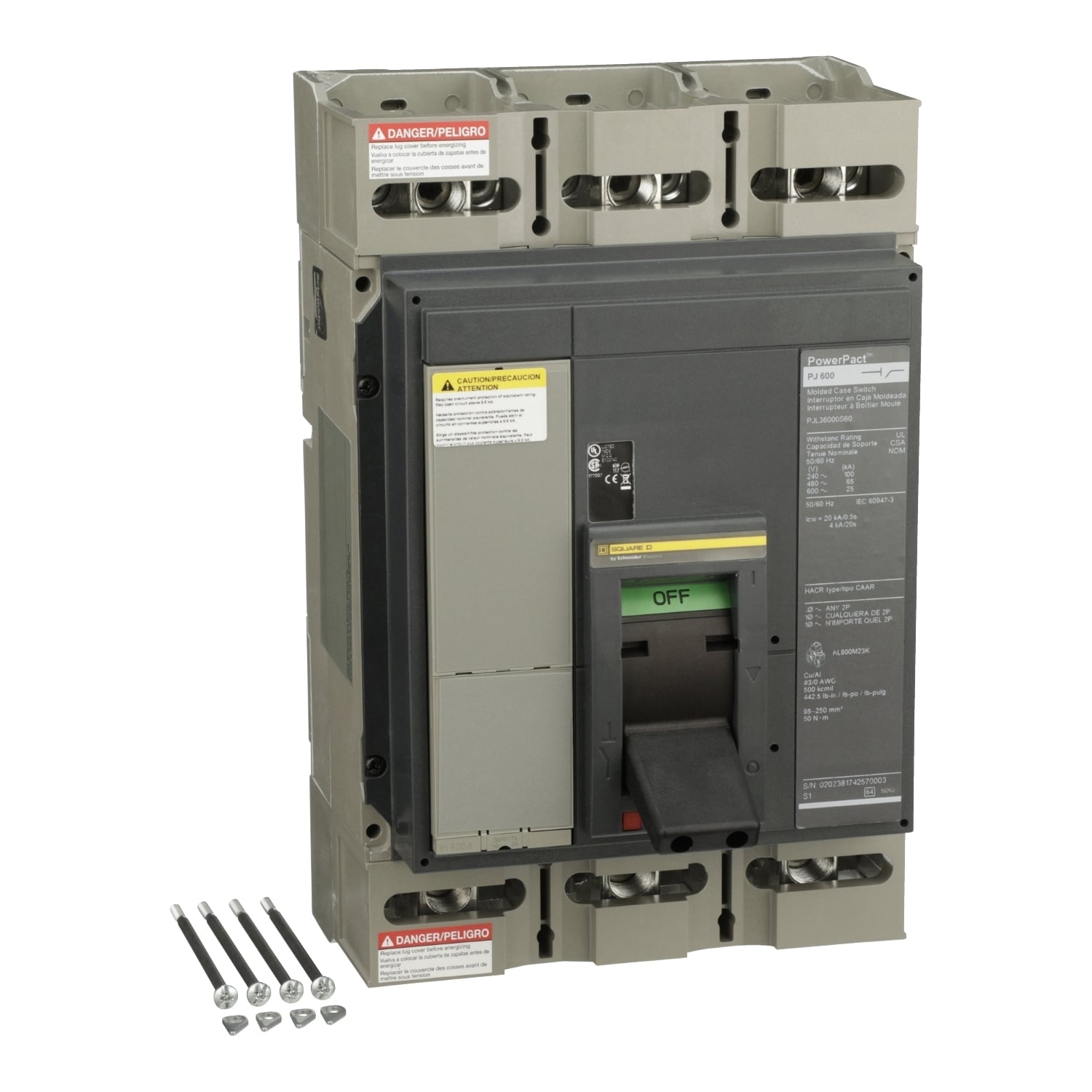

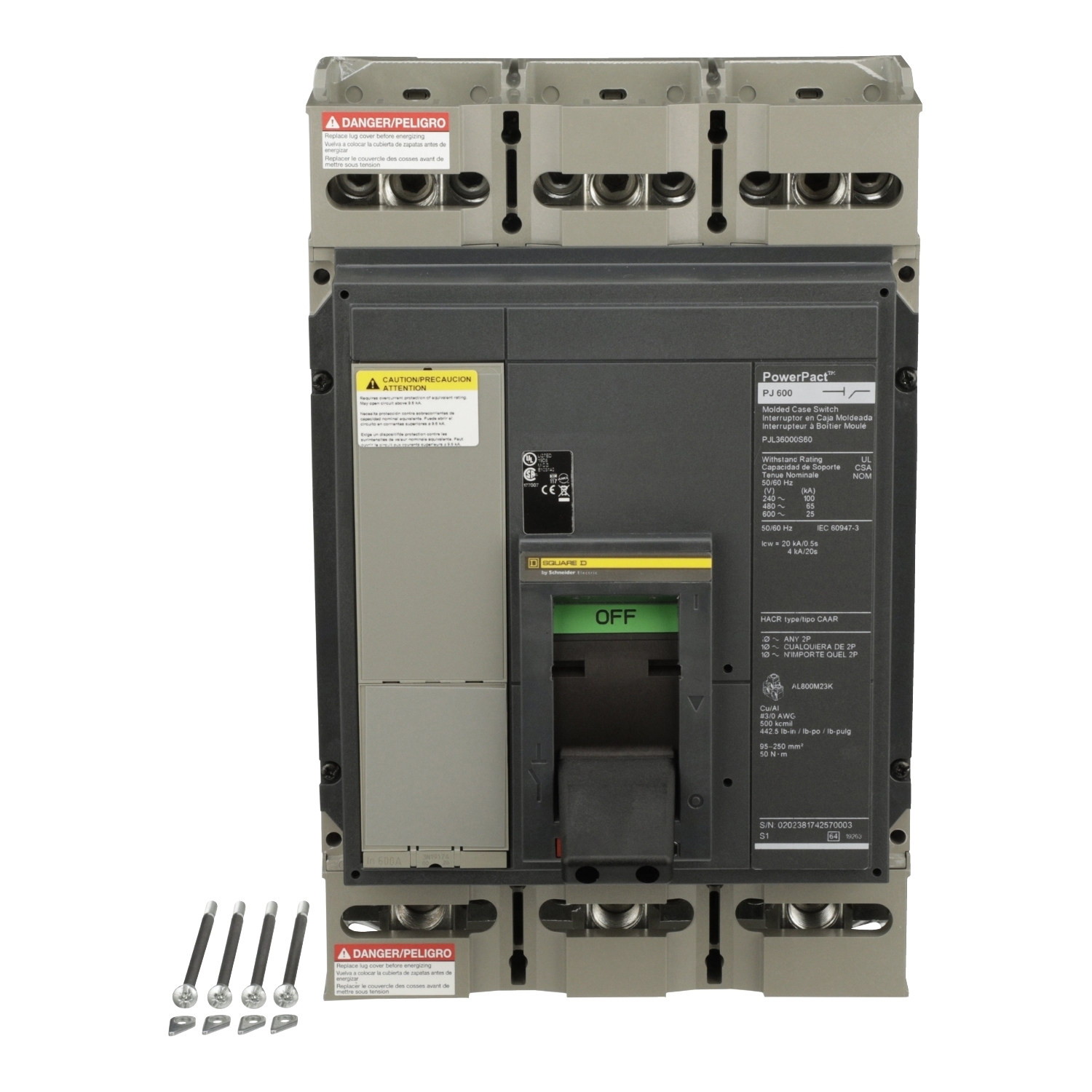

PJL36000S60 PowerPact MasterPact Automatic Molded Case Circuit Breaker, 600 V AC, 600 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Magnetic Trip

MFR:
Schneider Electric
MFR #:
PJL36000S60
UPC:
785901854869
Item #:
238325

Availability

Location Available Qty
Available Available to Order
$6,945.15 each

PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.

Manuals and Documentation
Catalog Number PJL36000S60
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Distribution
Connection Lugs, line;lugs, load
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432653&lang=en-us
UPC 785901854869
GTIN 00785901854869
Item Type Automatic switch
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
Cross Reference Products Grainger 2DL78|Rockwell S6H600DW|Schneider MHL360006M|Schneider PJL36000S60|Siemens LXD63S600A|SquareD MHL360006M|SquareD PJL36000S60
