LC1D80008U7 TeSys D LC1D Non-Reversing IEC Contactor, 240 V AC V Coil, 125 A, 2NO-2NC Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D80008U7
- Item #:
- 23727
LC1D80008U7 TeSys D LC1D Non-Reversing IEC Contactor, 240 V AC V Coil, 125 A, 2NO-2NC Contact, 4 Poles
- MFR #:
- LC1D80008U7
- Item #:
- 23727
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

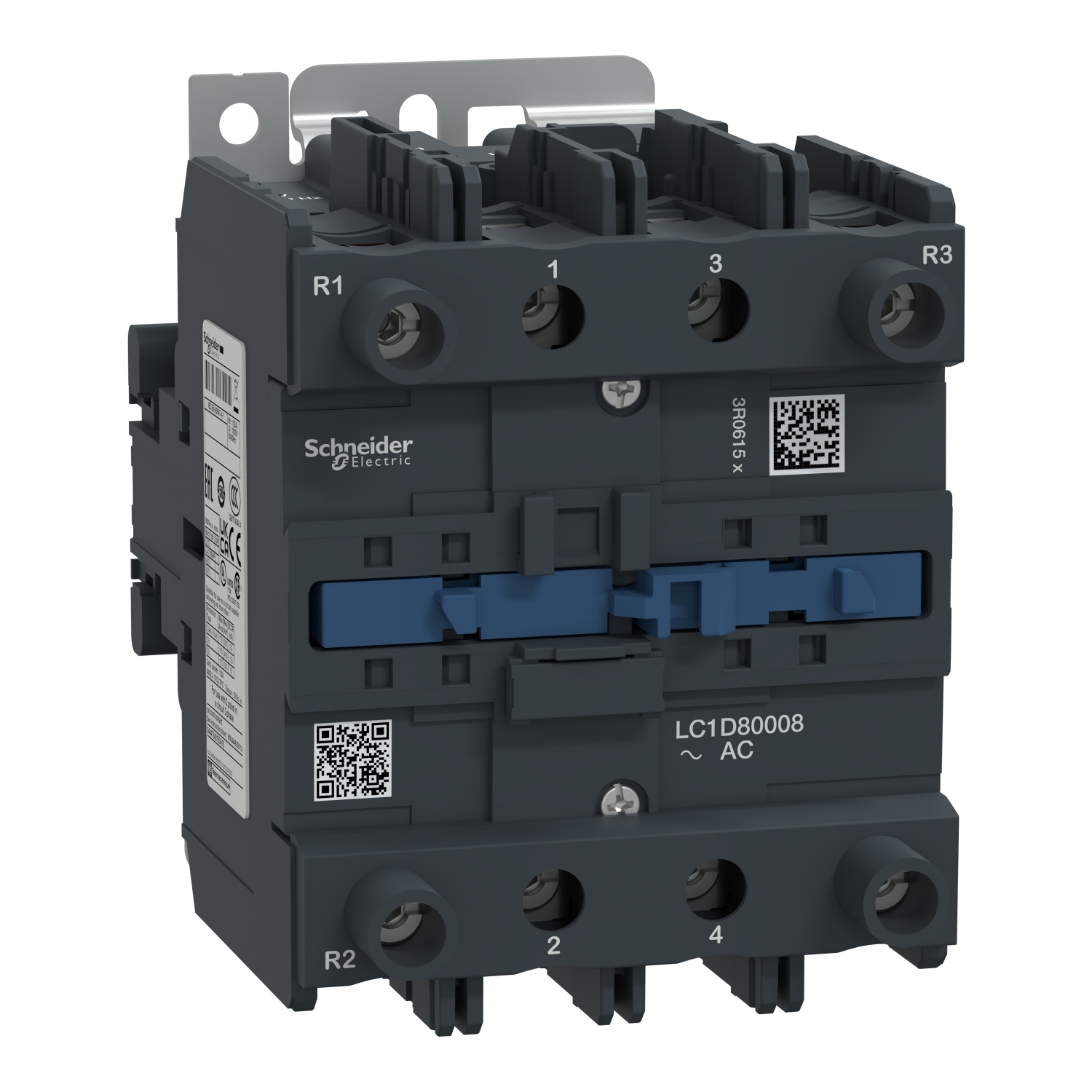

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 110A resistive load rating. Contactor is supplied with a 240 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 5.51 inches deep. It weighs 4.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D80008U7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 240 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: solid |
| Contact Configuration | 2 NO + 2 NC |
| Mounting | Rail Plate |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=618680&lang=en-us |
| GTIN | 03389110075618 |
| Item Type | Contactor |
