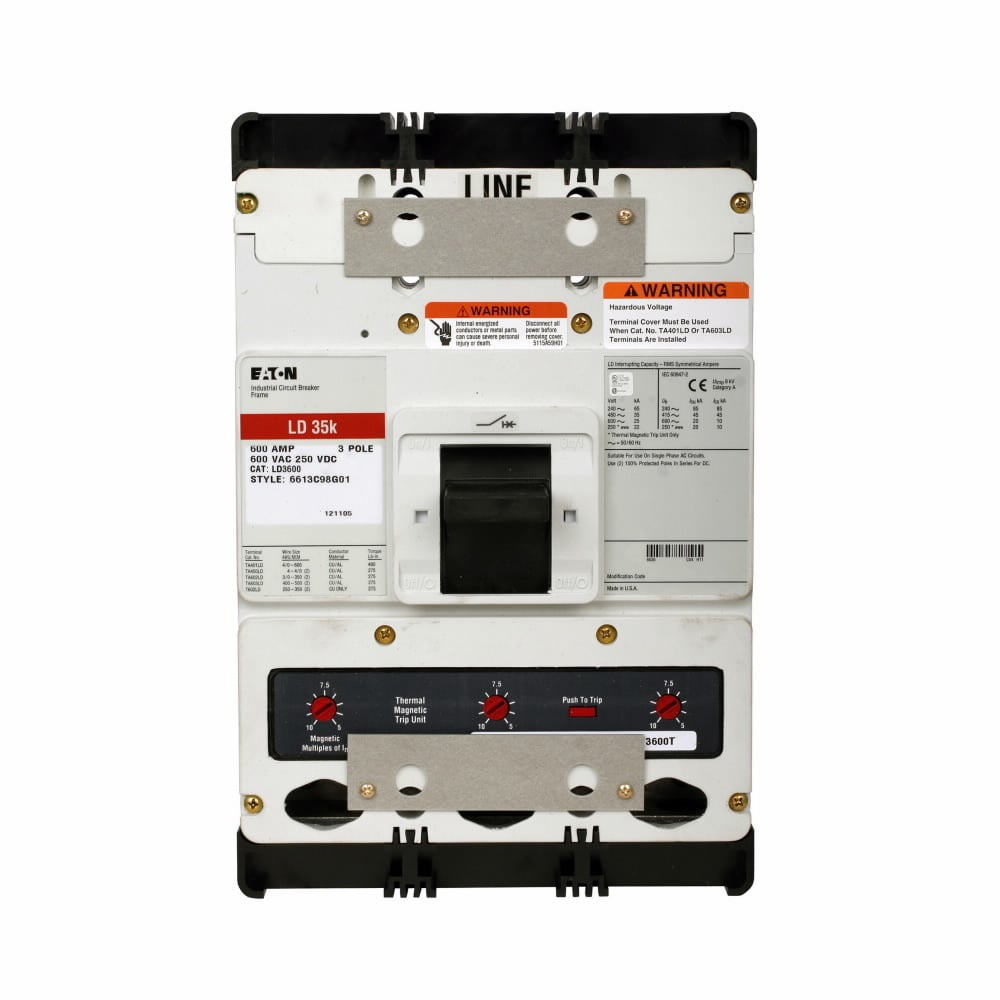

LD3500 C Series Type LD Molded Case Circuit Breaker, 600 V AC/250 V DC, 500 A, 35 kAIC at 480 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Eaton
- MFR #:
- LD3500
- UPC:
- 786679013045
- Item #:
- 237047
LD3500 C Series Type LD Molded Case Circuit Breaker, 600 V AC/250 V DC, 500 A, 35 kAIC at 480 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- LD3500
- UPC:
- 786679013045
- Item #:
- 237047
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$19,117.19
each
Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker. The Series Ccircuit breakeris ideal forpanelboards,switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.
| Catalog Number | LD3500 |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Current Rating | 500 A |
| Frame | L |
| Frequency Rating | 50 to 60 Hz |
| Interrupt Rating | 35 kAIC at 480 Vac|65 kAIC at 240 Vac |
| Number of Poles | 3 |
| Standard | UL 489 |
| UPC | 786679013045 |
| GTIN | 00786679013045 |
| Item Type | Molded case circuit breaker |
| Dimensions | 8.2500 IN X 8.2500 IN X 8.2500 IN |
| Trip Type | Fixed thermal, fixed magnetic |
| Voltage Rating | 600 Vac, 250 Vdc |
