| Special Features |

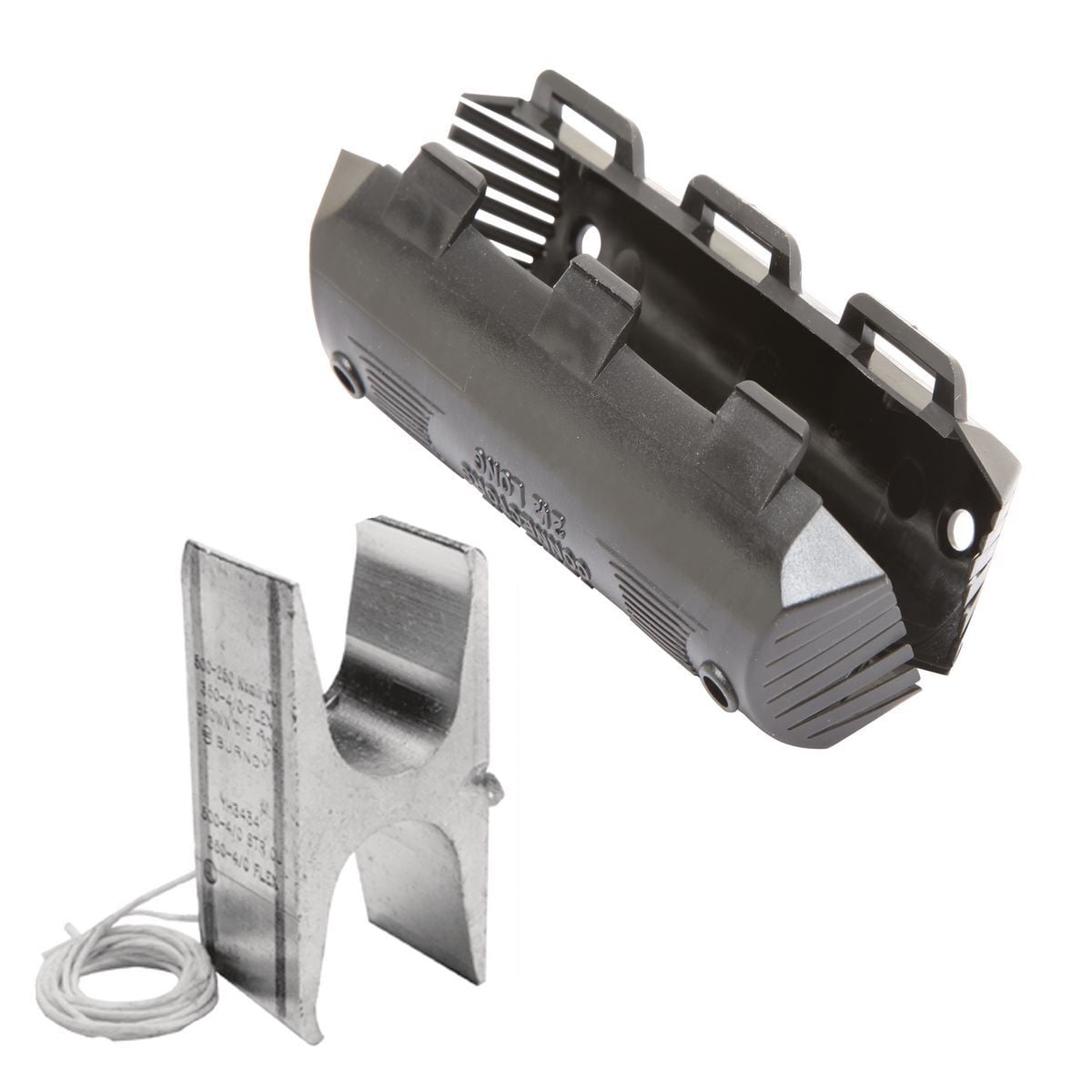

Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable, Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty, Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die, Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp, Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements, A Complete Insulated UL Listed Instal - Lation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp. Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Conductor Type: Run And Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (run - Range): 750 - 500 KCMIL, Shape: H, Conductor Size (tap Range): 750 - 350 KCMIL, Die Index: KR Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (1), Wire Strip Length: 1-3/8 IN, Cover Packaged With Connector: Yes, Includes: CFR-FR Black Flame Retardant Cover |
