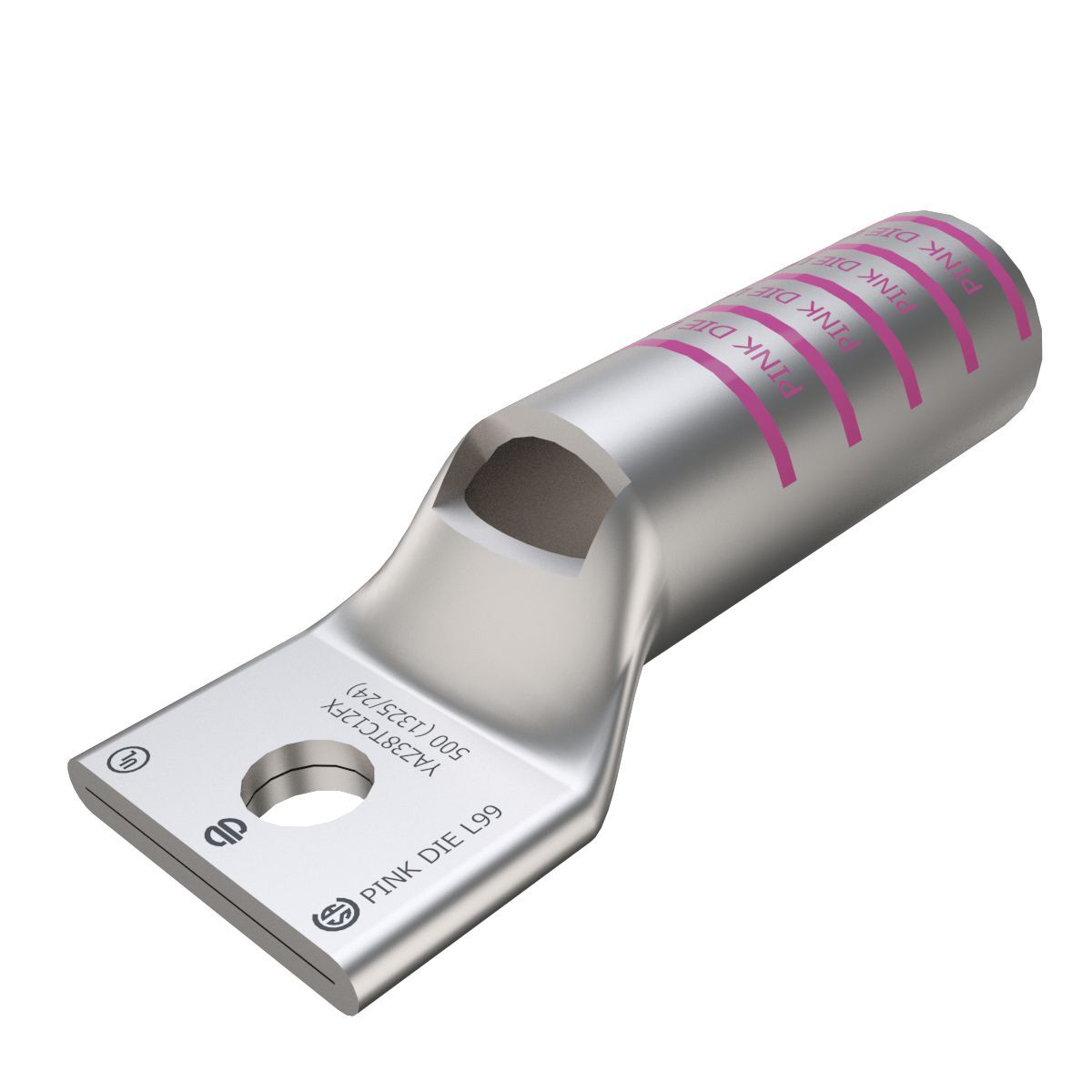

YAZ38TC12FX YAZ-TC-FX 1-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ38TC12FX
- UPC:
- 781810242063
- Item #:
- 233824
YAZ38TC12FX YAZ-TC-FX 1-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YAZ38TC12FX
- UPC:
- 781810242063
- Item #:
- 233824
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$146.00
each
Manuals and Documentation
| Catalog Number | YAZ38TC12FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 2-7/8 IN, Die Index: L99, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible |
| Standard | UL 486A-486B |
| UPC | 781810242063 |
| GTIN | 00781810242063 |
| Item Type | Long Barrel, Skive |
| Voltage Rating | 35 |
