Hubbell Wiring Device - Kellems

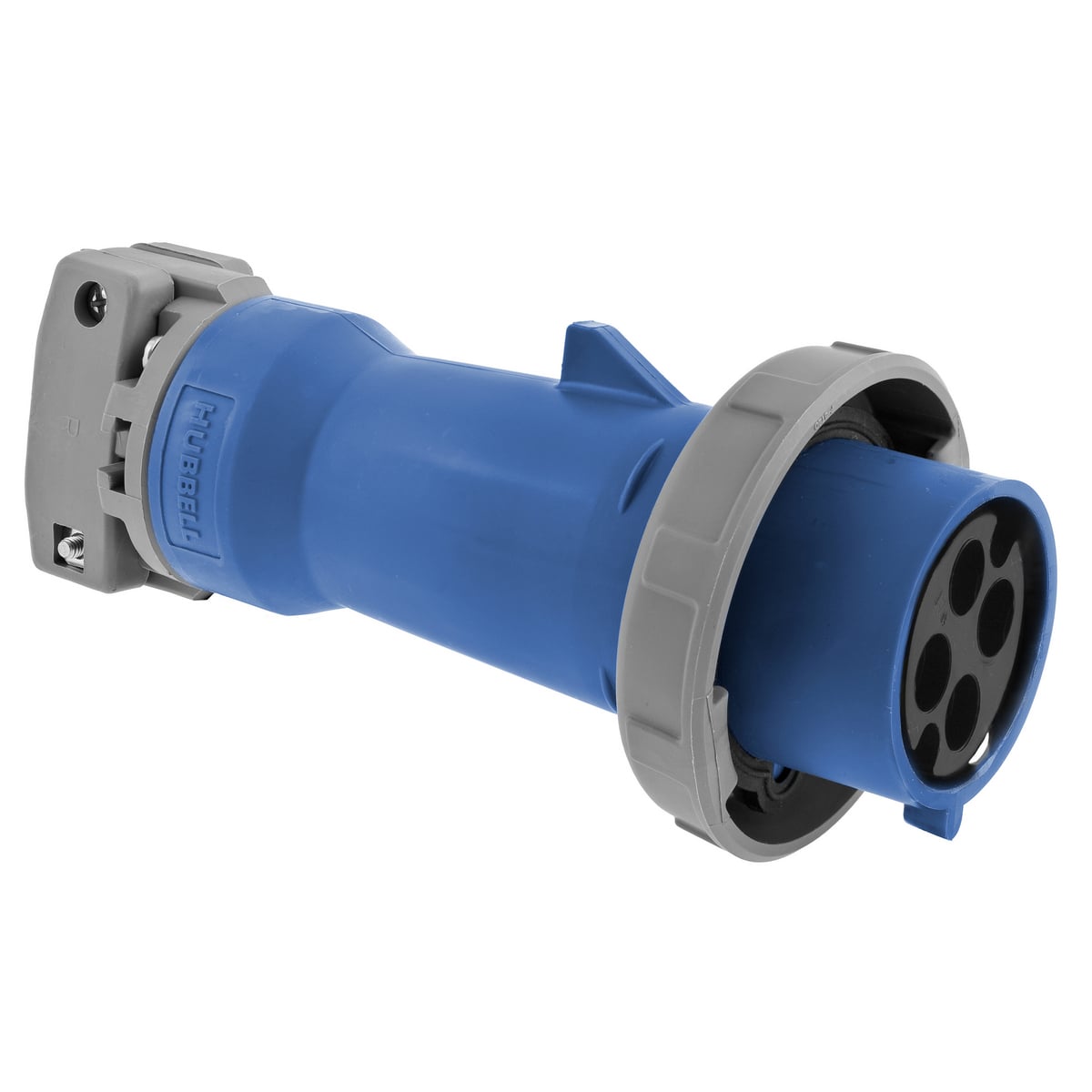

HBL430P9WR HBL 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount Mating Plug, 240 V AC, 30 A, 3 Poles, 4 Wires, Blue

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL430P9WR
UPC:
783585012711
Item #:
233666

Availability

Location Available Qty
Available Available to Order
$437.39 each

Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.

Manuals and Documentation
Catalog Number HBL430P9WR
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 30
Application High Ampacity Connections
Color Blue
Connection Pressure Terminal Screws
Material Composite
Mounting Cord
Number of Poles 3
Number of Wires 4-Wire
Phase 3
Special Features Watertight
Standard CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
UPC 783585012711
GTIN 00783585012711
Item Type Watertight Mating Plug
Size Standard Sized
Environmental Conditions Watertight
Voltage Rating 3 Phase 240
Wire Size #12 AWG to #8 AWG
