Appleton

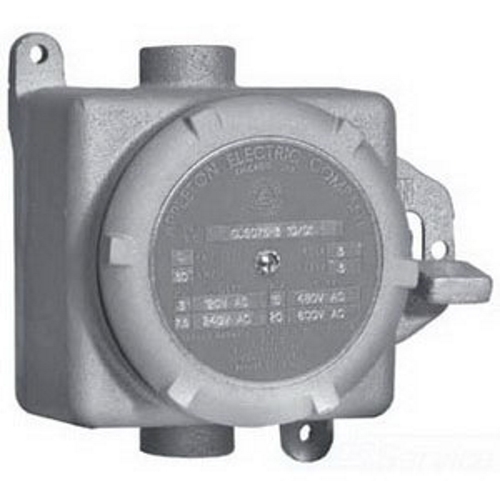

Unilet; Tumbler Switch; 600 Volt AC, 30 Amp, Black

MFR:
Appleton Electric
MFR #:
GUSC75-3
UPC:
781381452700
Item #:
233192

Availability

Location Available Qty
Available Available to Order
$1,308.60 each

UNILETS GUSC Series Heavy-Duty Tumbler Switch, Voltage Rating: 600 VAC, Amperage Rating: 30 AMP, Number Of Poles: 3, Enclosure: NEMA 7D, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, HP Rating: 7-1/2 HP At 240 VAC, 15 HP At 480 VAC, 20 HP At 600 VAC, Material: Malleable Iron Body, Copperfree Aluminum Cover, Finish: Body: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Cover: Natural, Height: 4.63 IN, Width: 4.19 IN, Depth: 3.94 IN, Standard: Class I, Division 1 And 2, Group D, Class II, Division 1 And 2, Groups E, F, G , Class III, For Controlling Motors And Other Apparatus

Manuals and Documentation
Catalog Number GUSC75-3
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 30
Application For Controlling Motors And Other Apparatus
Enclosure NEMA 7D, 9EFG
Mounting Surface
Number of Poles 3
Special Features Heavy-duty disconnect use up to 600 VAC; Compact design permits use in cramped quarters as on machinery; Threaded cover provides easy access for wiring and maintenance; Provided with mounting lugs; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Threaded stainless steel shaft for operating handle; Lockable operating handle; For use in such classified locations as: paint and varnish plants, grain elevators, coal or grain processing, gasoline bulk loading terminals, metal finishing areas
Standard Class I, Division 1 And 2, Group D, Class II, Division 1 And 2, Groups E, F, G , Class III
UPC 781381452700
GTIN 00781381452700
Item Type GUSC Series Heavy-Duty Tumbler Switch
Voltage Rating 600
