Mersen

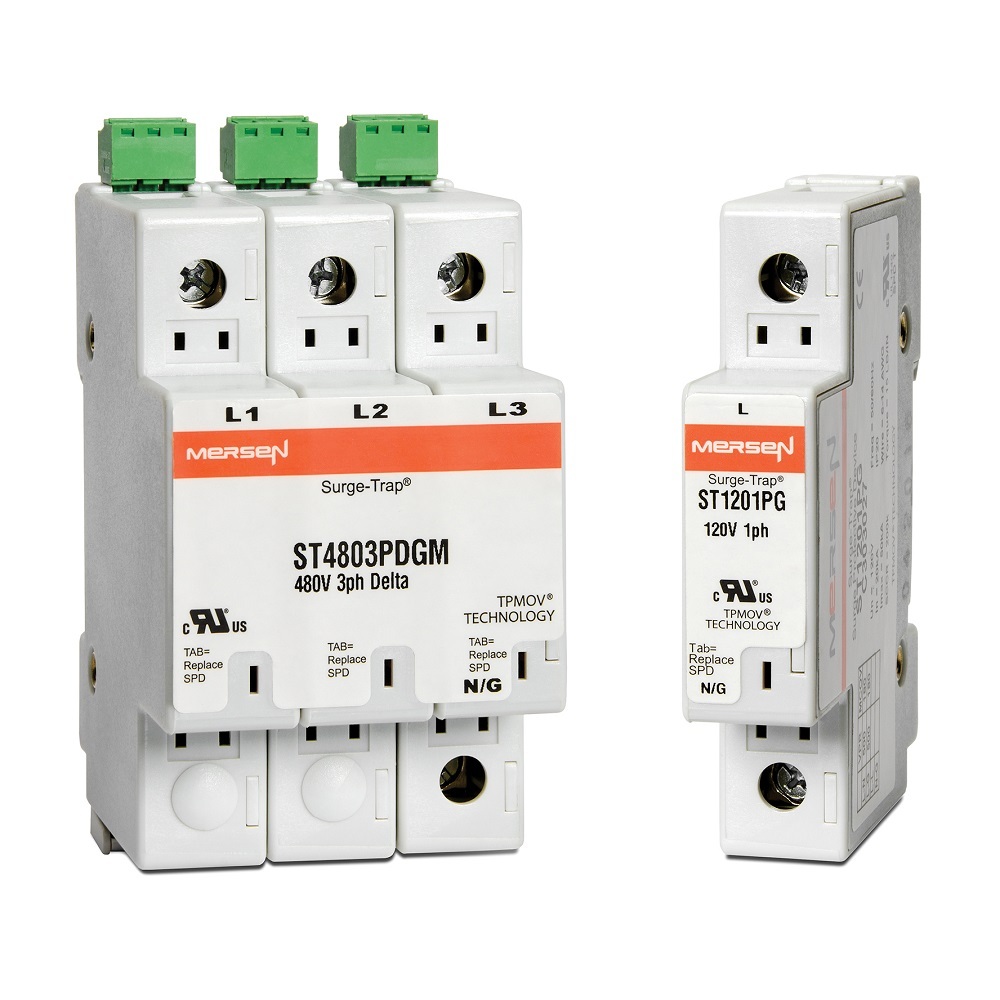

ST4803PDGM Surge-Trap Modular Surge Protective Device, 480 V AC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase

MFR:
Mersen
MFR #:
ST4803PDGM
UPC:
782001361686
Item #:
232886

Availability

Location Available Qty
Available 2 ea
$962.25 each

Surge-Trap Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

Manuals and Documentation
Catalog Number ST4803PDGM
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment
Connection Box
Mounting Din Rail
Short Circuit Rating 200 KA
Special Features Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed
Standard UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant
UPC 782001361686
GTIN 00782001361686
Item Type Surge-Trap® SPD
Type of Indicators Microswitch
Voltage Rating 480
