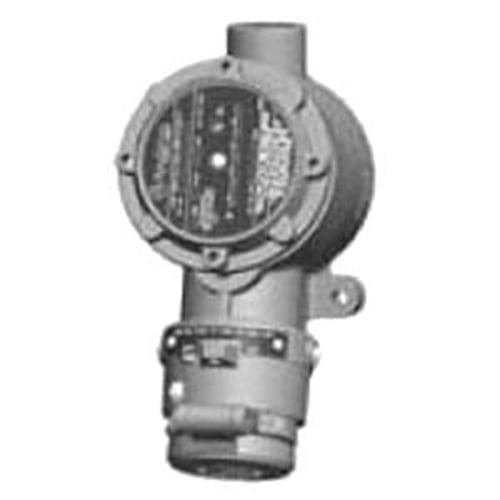

FSQC Series Receptacle With Disconnect Switch; 30 Amp, 600 Volt AC, 4-Pole, 3-Wire, 3/4 Or 1 Inch Hub
MFR: Appleton Electric
MFR #: FSQC3430
UPC: 781381208888
Item #: 232760
FSQC Series Receptacle With Disconnect Switch; 30 Amp, 600 Volt AC, 4-Pole, 3-Wire, 3/4 Or 1 Inch Hub
MFR #: FSQC3430
UPC: 781381208888
Item #: 232760
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2291.31
each
FSQC Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 10 - 8 AWG (Terminal Block), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum
Manuals and Documentation
- Catalog Number
- FSQC3430
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 30
- Application
- For ACP3034BC Mating Plug
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Mounting
- Surface
- NEMA Rating
- 3, 3R, 4, 4X
- Number of Poles
- 4
- Number of Wires
- 3
- Phase
- 3
- Special Features
- Explosionproof, dust-ignitionproof; Large housing provides ample wiring room; Style 2 (shell and extra pole) grounding; Spring door keeps dust out of receptacle when plug is not in use, screw cover also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 3/4 IN tapped NPT conduit openings at top and bottom; Interlocked Disconnect Switch provides safe connect and disconnect operation at 30, 60 or 100 AMP, 600 VAC maximum, three pole, non-fused motor circuit switch, FSQC permits safe operation in Class I, Group B as well as Class I, Groups C and D, Class II, Groups F, G and Class III;
- Standard
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159
- UPC
- 781381208888
- GTIN
- 00781381208888
- Item Type
- FSQC Series Receptacle With Mounting Box
- Voltage Rating
- 600 VAC, 250 VDC
- Wire Size
- 10 - 8 AWG (Terminal Block)
