Square D™

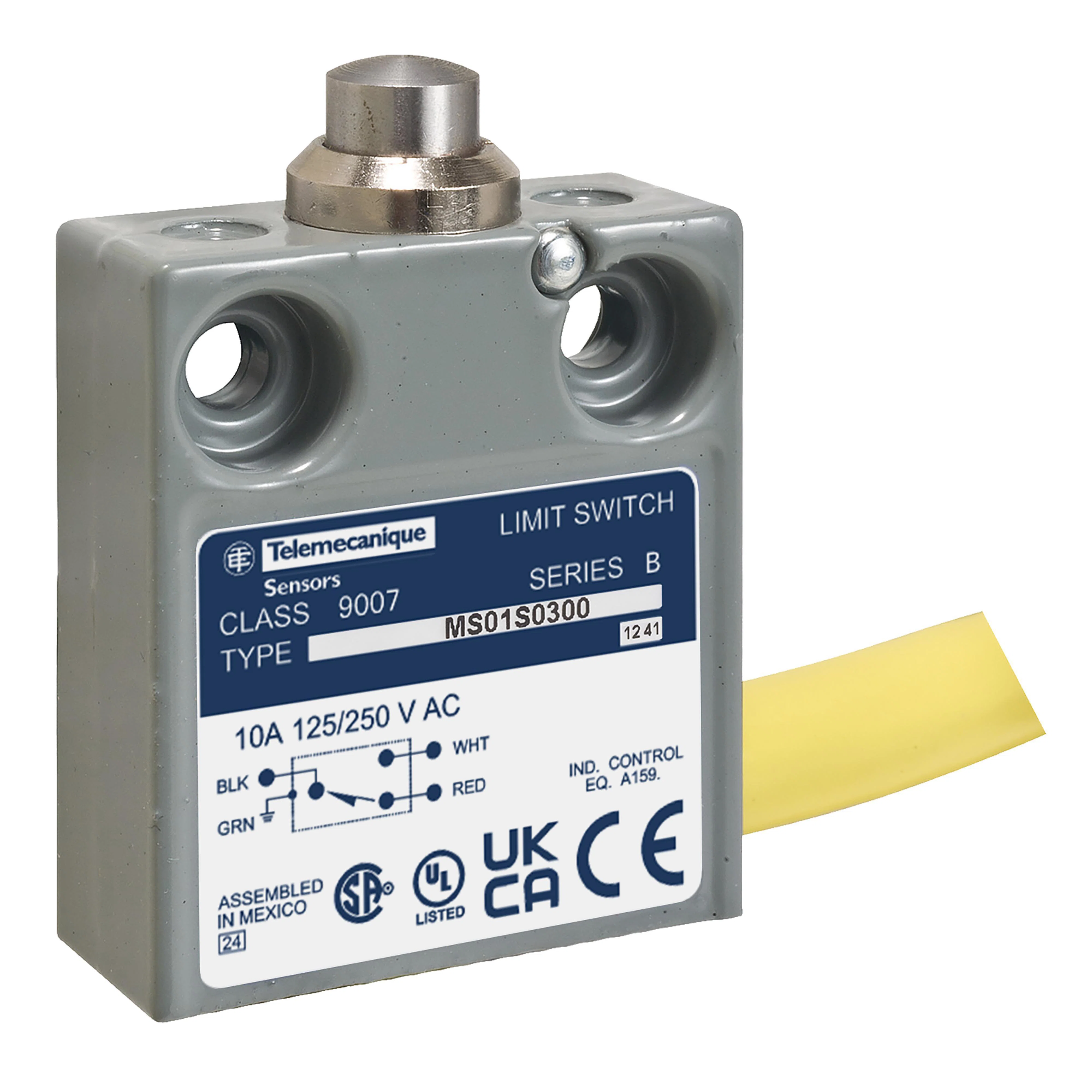

Limit switch, 9007, 240 VAC 10amp ms +options

MFR:
Schneider Electric
MFR #:
9007MS01S0306
UPC:
785901319344
Item #:
232604

Availability

Location Available Qty
Available Available to Order
$238.99 each

LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Manuals and Documentation

Features

  • Ms+ options limit switch
  • Linear movement of operating head
  • Form C, snap action silver contacts
  • Side entrance #18 AWG SJTO 9 ft black cable
  • 6 A 120 VAC at A300 NEMA rating designation, 3 A 240 VAC at A300 NEMA rating designation, 5 A 28 VDC
Manufacturer Part Number 9007MS01S0306
Brand Square D™
Manufacturer Schneider Electric
UPC 785901319344
EAN 0785901319344
Country Of Origin MX
Amperage Rating 10 A
Enclosure Type NEMA 1/2/4/6/6P/12/13/IP67
Finish Epoxy Powder Coated
Material Cast Zinc
Mounting Type Fixed
Series 9007MS/ML
Type Miniature Potted Linear
Voltage Rating 240 V AC/28 V DC
Size 1.56 in W x 0.62 in D x 1.75 in H
Alternative Part Number 8137748
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals CSA C22.2 File No. 14 | CENELEC | CE Marked | EN 50041/EN 609475-1 | EN 60204-1 | IEC 60204-1/609475-1 | IEC 60068-2-6 | IEC 60068-2-27 | IEC 60529 | LR 25490 CLASS 32 11 03-E78403 | UL 508 | PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application Material Working, Packaging, Materials Handling, Conveying, Food, Beverage, Mining, Mineral Constructions, Oil and Gas, Crane/Hoisting, Mill and Foundry Applications
Action Vertical/Snap
Connection Type Pre-Wired Side Cable
Contact Configuration 1NO-1NC
Contact Rating 3 A at 240 V AC/5 A at 28 V DC
Environmental Conditions -40 to 220 deg F Storage Temperature
Number Of Poles 1
Operating Cycles 100000 Cycles
Operating Temperature -40 to 220 deg F
