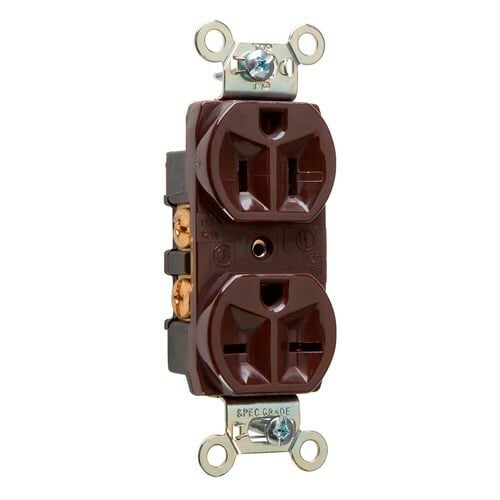

5290 Hard Use Spec Grade Combination Duplex Receptacle Side-Wire 15 Amp 125/250V
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- 5290
- UPC:
- 785007529005
- Item #:
- 232181
5290 Hard Use Spec Grade Combination Duplex Receptacle Side-Wire 15 Amp 125/250V
- MFR #:
- 5290
- UPC:
- 785007529005
- Item #:
- 232181
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$34.69
each
Hard Use Spec Grade Combination Duplex Receptacle Side-Wire 15A 125/250V
| Catalog Number | 5290 |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | Brown |
| Connection | Side wire |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. 8 hole internal screw-pressure-plate back wire terminals accept #14 – #10 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. |
| Standard | UL498, CSA C22.2 No. 42 |
| UPC | 785007529005 |
| GTIN | 00785007529005 |
| Item Type | Spec Grade Combination Receptacle, Hard Use |
| Size | 1.322 L x .780 W x 3.281 H |
| Environmental Conditions | Flammability: UL94 V2 |
| Temperature Rating | -40° - 60° C |
| Voltage Rating | 125/250 |
| Wire Size | 14 - 10 AWG |
