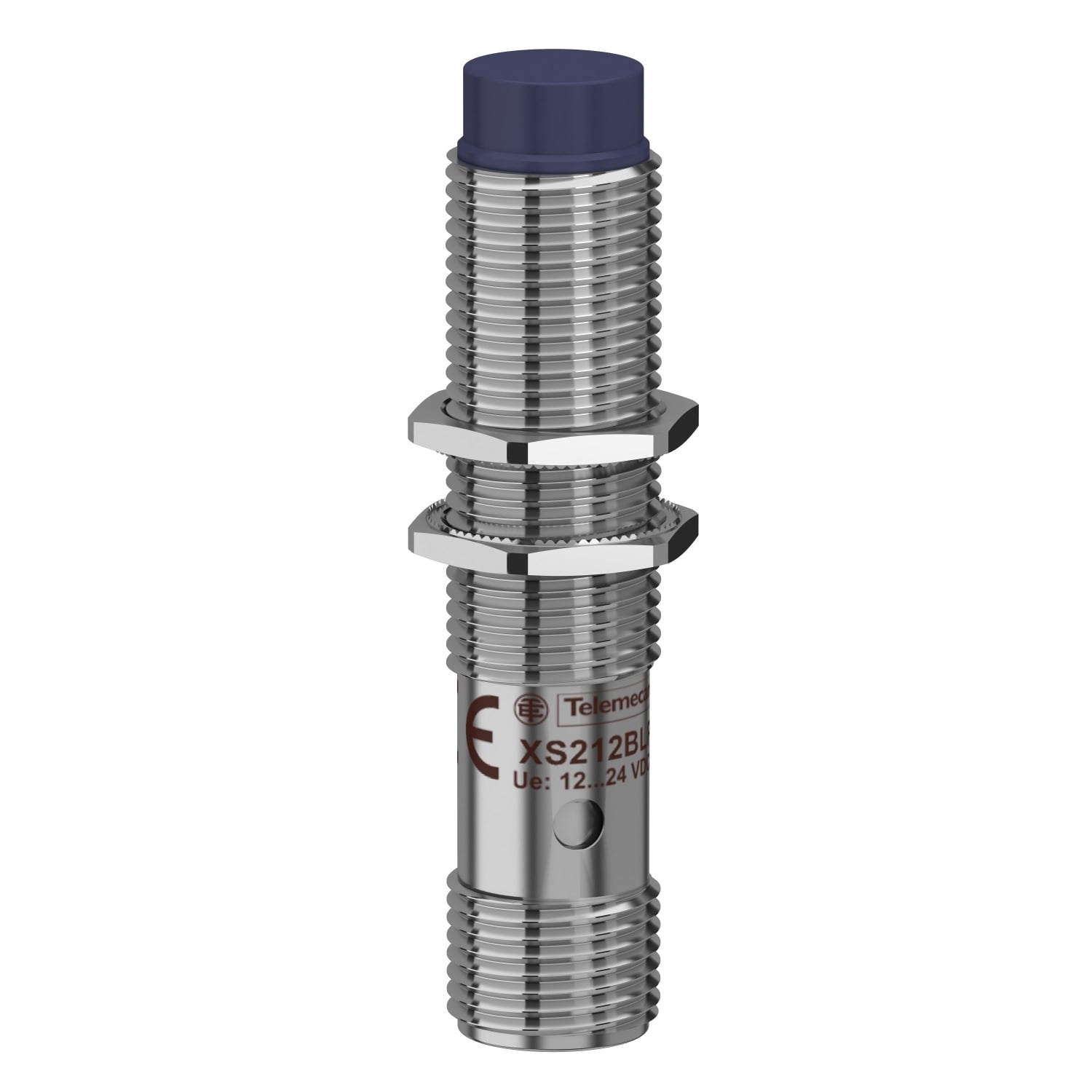

XS212BLPAM12 Osiprox Fixed Cylindrical Probe Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS212BLPAM12
- UPC:
- 785901438526
- Item #:
- 232067
XS212BLPAM12 Osiprox Fixed Cylindrical Probe Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR #:
- XS212BLPAM12
- UPC:
- 785901438526
- Item #:
- 232067
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$80.90
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a metal cylindrical boby and a M12 connector. It has a sensing distance of 4mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
Manuals and Documentation
| Catalog Number | XS212BLPAM12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | GENERAL PURPOSE |
| Connector | Male connector M12, 4 pins |
| Control Output | DC 3-WIRE (PNP) - 1 N.O. |
| Enclosure | Nickel Plated Brass |
| Indicator | Output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | 4 MM,> 0.1...0.16 IN (> 2.5...4 MM) |
| Sensor | 12 MM,55 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867634&lang=en-us |
| UPC | 785901438526 |
| GTIN | 03389119002790 |
| Item Type | Inductive proximity sensor;Cylindrical M12 |
| Operating Temperature | -25-70 A Degrees C |
| Cross Reference Products | Teknic 12X04AP024SEM4LK |
