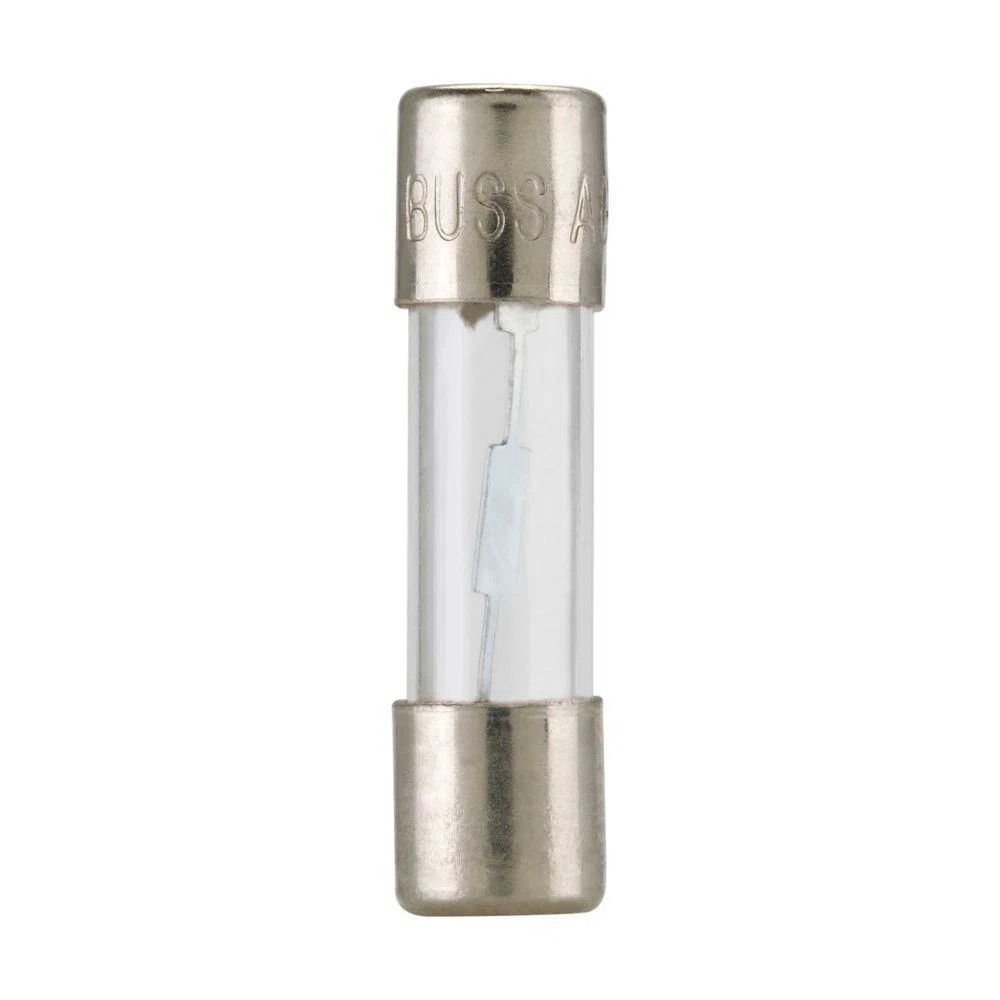

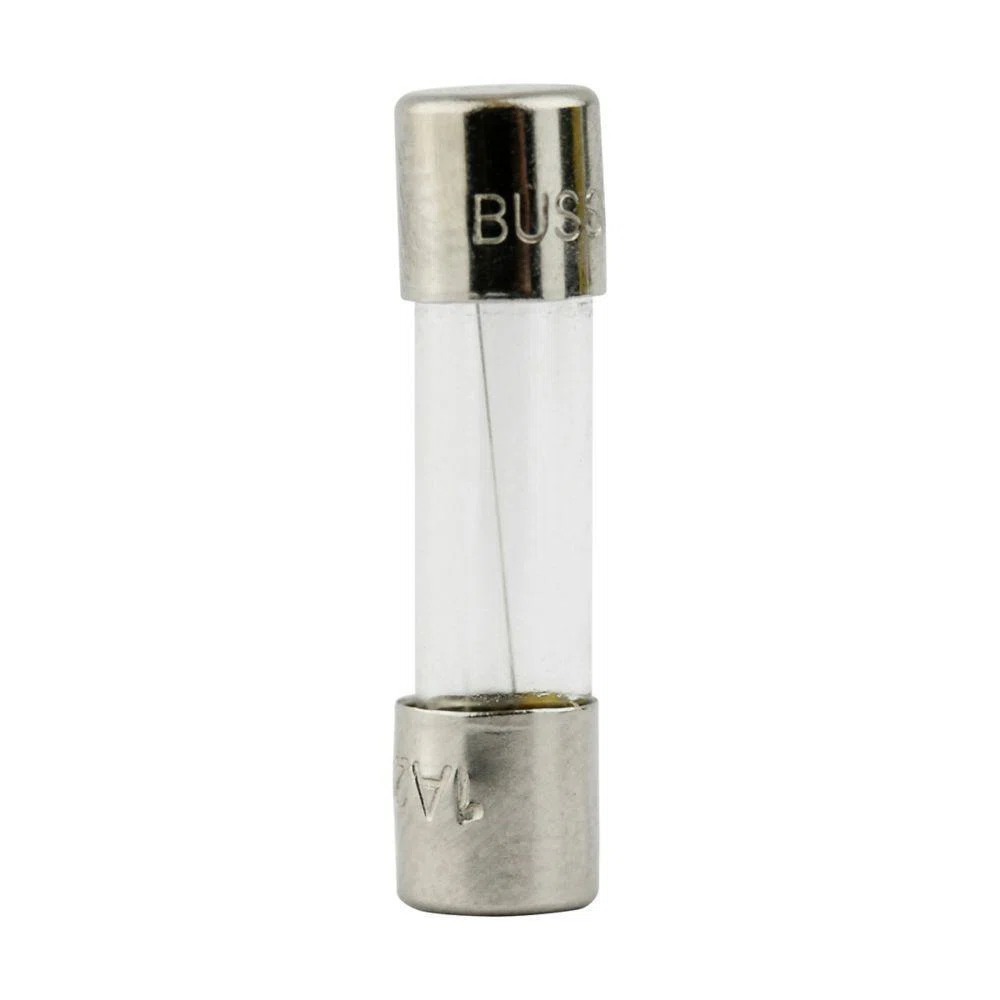

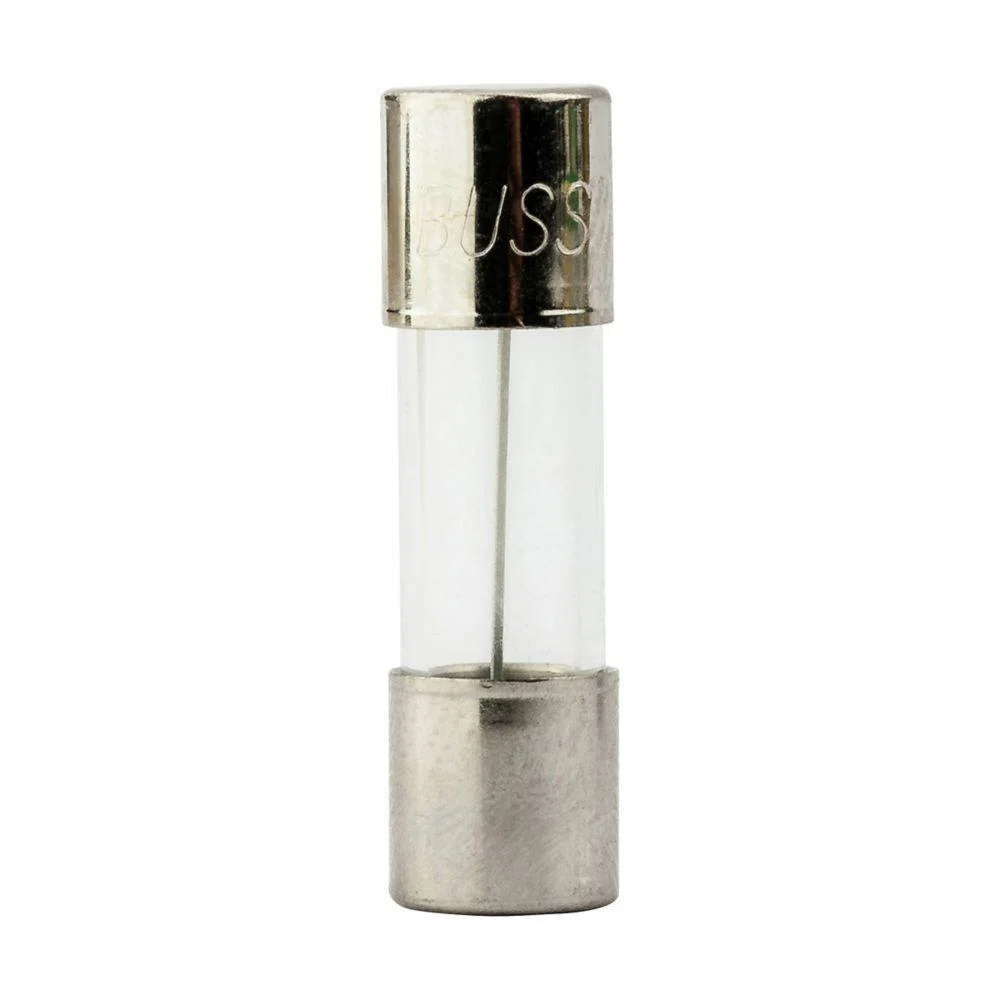

Fast-acting, glass tube 1/4" x 1" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Eaton’s AGX fast-acting, glass tube 1/4" x 1" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip.
Manuals and Documentation
Features
- Size rejects insertion of other fuse types
- 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200% response time
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
| Manufacturer Part Number | AGX-1/10 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712704656 |
| Country Of Origin | TW |
| Amperage Rating | 0.1 A |
| Material | Glass |
| Mounting Type | Holder |
| Series | AGX |
| Type | Small Dimension |
| Voltage Rating | 250 V AC |
| Alternative Part Number | 7637370 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Guide JDYX | UL File No. E19180 | Guide JDYX7 | cULus Listed | CE Certified |
| Application | Instruments, Electronic and Small Appliance Circuits Applications |
| Body Size | 1/4 in Dia x 1 in L |
| Body Type | Cylindrical |
| Element | Single |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 35 A, 10 kA |
| Rejection Non Rejection | Rejection |
| Response Time | 4 hr, 60 min, 5 s |
| Terminal Type | Ferrule |
