Appleton

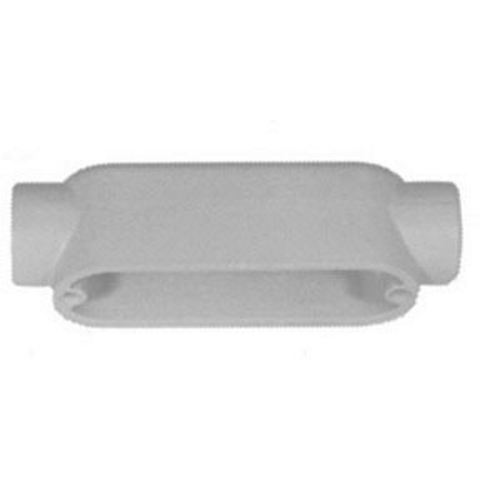

Conduit Body, Type: C, Size: 3/4", Form 85, Aluminum

MFR:
Appleton Electric
MFR #:
C75-A
UPC:
781381164306
Item #:
23023

Availability

Location Available Qty
Available 1
$46.92 each

Form 85 UNILETS Type C Conduit Outlet Body, Hub Size: 3/4 IN, Form: 85, Length: 5.63 IN, Width: 1.56 IN, Height: 1.63 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT

Manuals and Documentation
Catalog Number C75-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin India
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
Connection Tapered Female Threaded
Finish Epoxy Powder Coat
Form 85
Hub Size 3/4 IN
Material Pressure Cast Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 7 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381164306
GTIN 00781381164306
Item Type Type C Conduit Outlet Body
Length 5.63
Length UOM Inch
Width 1.56
Width UOM Inch
Height 1.63
Height UOM Inch
