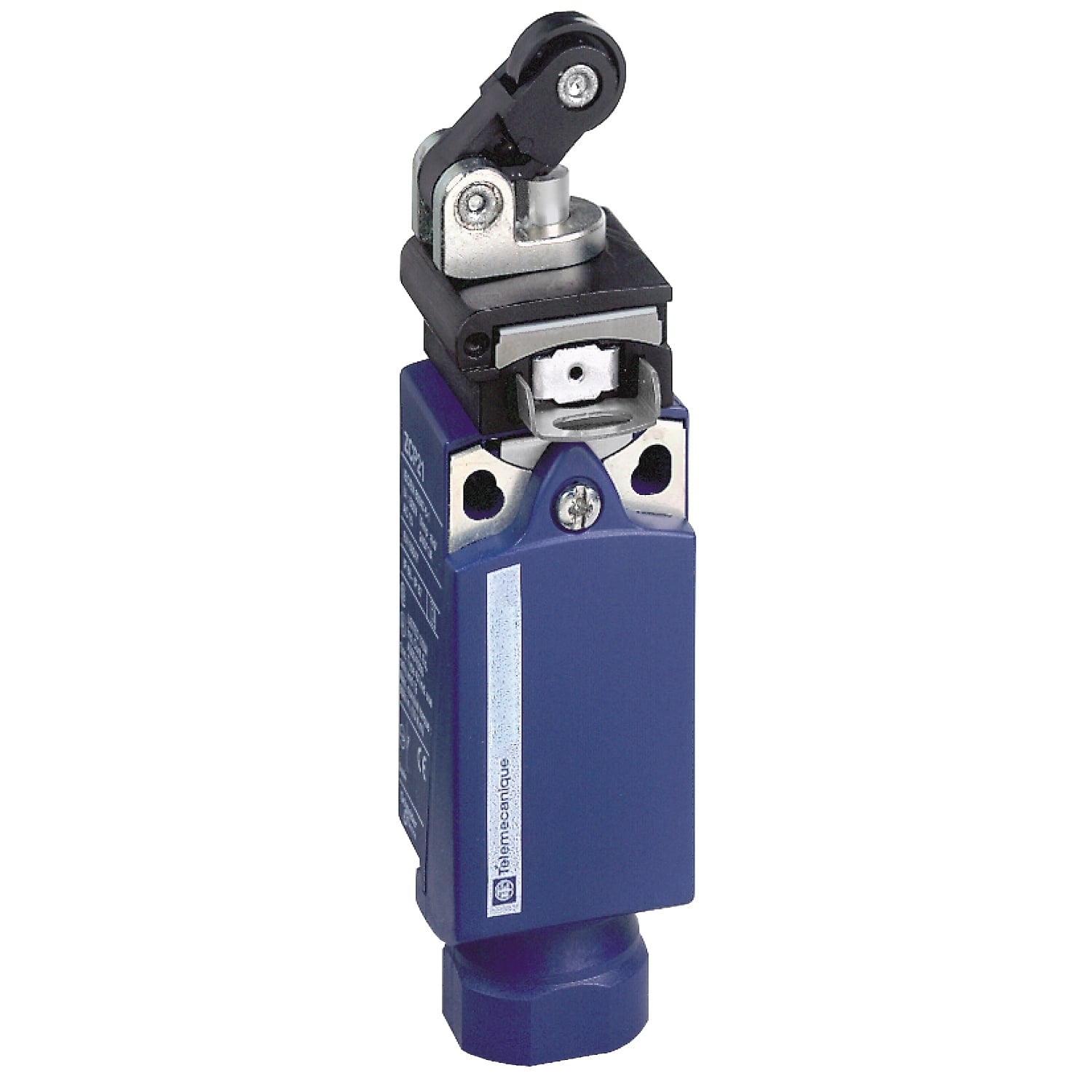

XCPR2121P20 OsiSense XC Compact Fixed Standard Format Limit Switch, 300/500 V, Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCPR2121P20
- UPC:
- 785901856085
- Item #:
- 230096
XCPR2121P20 OsiSense XC Compact Fixed Standard Format Limit Switch, 300/500 V, Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCPR2121P20
- UPC:
- 785901856085
- Item #:
- 230096
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$100.90
each
limit switch XCPR - th.plastic roller lever plung. Hor - 1NC+1NO - snap - M20
Manuals and Documentation
| Catalog Number | XCPR2121P20 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action;By 30 Degrees cam |
| Actuator | Linear;Spring return roller lever plunger thermoplastic;Lateral approach, 1 direction |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL,IEC 60204-1-UL 508-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-EN 60204-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858122&lang=en-us |
| UPC | 785901856085 |
| GTIN | 03389110209051 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
