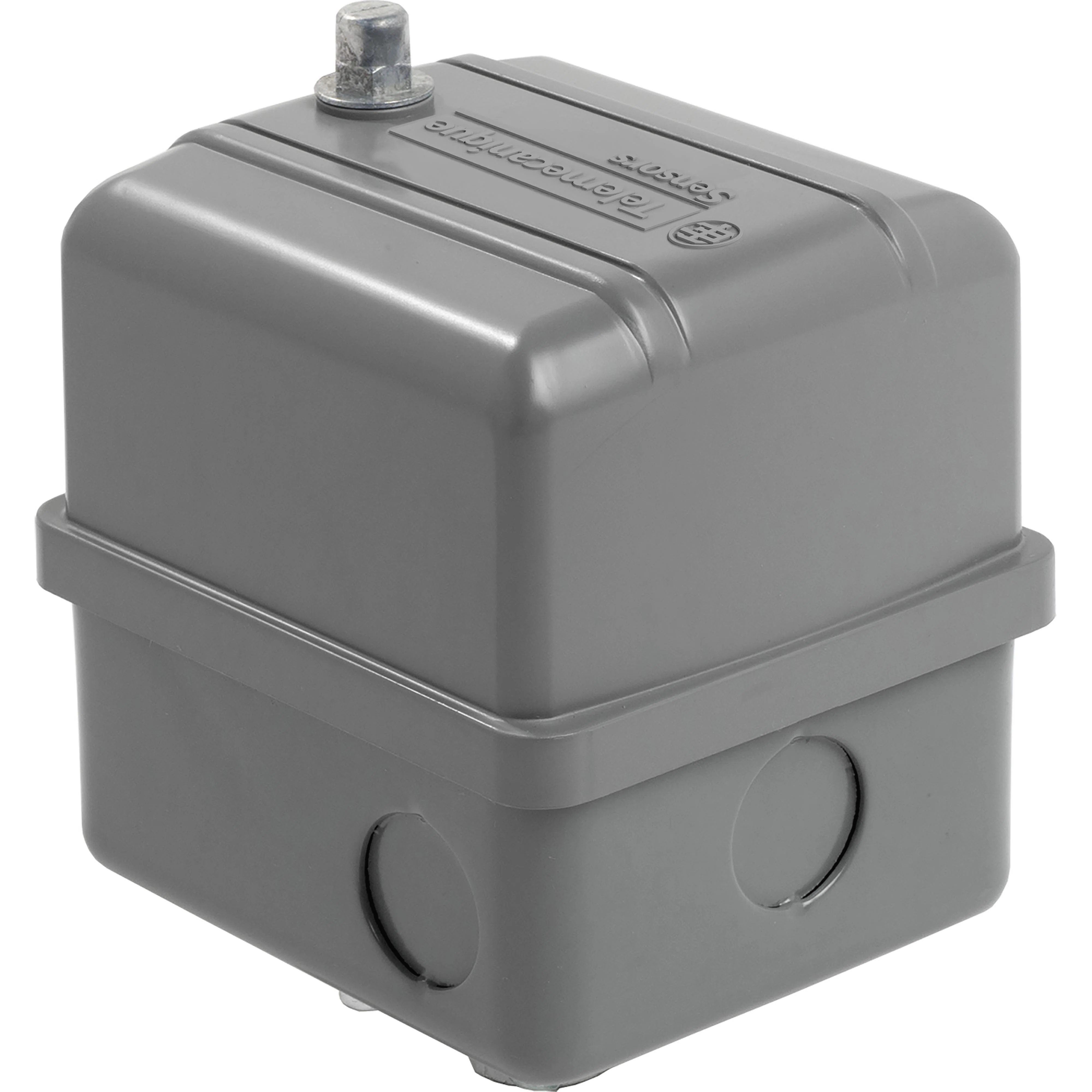

Pumptrol, pressure switch 480 VAC 10 A g special
- MFR:
- Schneider Electric
- MFR #:
- 9013GHG2S31J21
- UPC:
- 785901151661
- Item #:
- 229937
Pumptrol, pressure switch 480 VAC 10 A g special
- MFR #:
- 9013GHG2S31J21
- UPC:
- 785901151661
- Item #:
- 229937
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$154.69
each
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.
Manuals and Documentation
Features
- 9013G power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF Internal pressure
- 30 to 50 psi decreasing pressure
| Manufacturer Part Number | 9013GHG2S31J21 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901151661 |
| EAN | 0785901151661 |
| Country Of Origin | MX |
| Dimensions | 3.44 in W x 3.68 in D x 5.72 in H |
| Enclosure Type | IP20/NEMA 1 |
| Series | 9013 |
| Type | Type G |
| Alternative Part Number | 9793766 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ECCN: EAR99 | CSA Certified | REACH Compliant | UL E12158 CCN NKPZ | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Control electrically driven water pumps and air compressors |
| Connection Material | Zinc Plated Steel Flange |
| Connection Type | Screw Clamp |
| Contact Configuration | DPST |
| Diaphragm Material | Nitrile |
| Maximum Pressure | 300 psig |
| Pressure Rating | 40 to 170 psi |
