Discontinued
Lutron

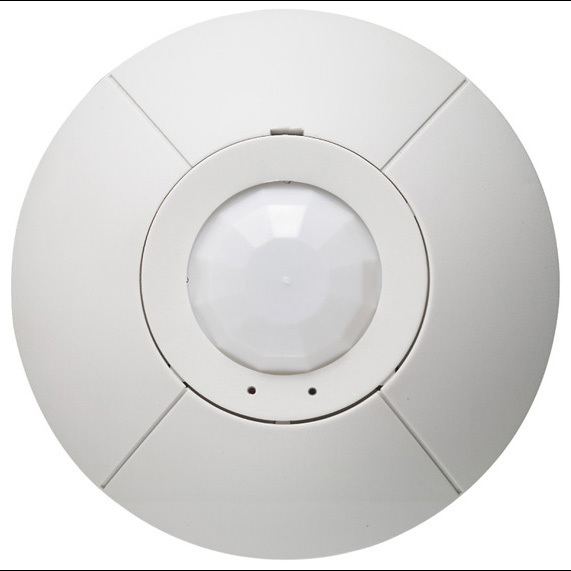

LOS-CIR-450-WH Occupancy Sensor, 20 to 24 V DC, Passive/Ultrasonic Infrared Sensor, 450 sq-ft Coverage, 360 deg Viewing

MFR:
Lutron Electronics
MFR #:
LOS-CIR-450-WH
UPC:
027557212397
Item #:
229224

Availability

Location Available Qty
Available Available to Order
Manuals and Documentation
Catalog Number LOS-CIR-450-WH
Manufacturer Lutron Electronics
Brand Lutron
Application Lighting Control
Enclosure Plastic
Mounting Ceiling
Sensing Range 450 ft2 (42 m2), 360 degree field of view
Special Features Can integrate into Lutron systems or function as a stand-alone control using a Lutron power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on. Intelligent, continually adapting Passive Infrared (PIR) sensor. Reliable motion detection with high error immunity. The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 450 ft2 to 1500 ft2 (42 m2 to 140 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.
Standard UL, cUL
Supply Voltage 20 to 24 VDC
UPC 027557212397
GTIN 00027557212397
Item Type Infrared ceiling-mount sensor
Environmental Conditions Relative humidity less than 95 percent, non-condensing. For indoor use only
Operating Temperature 32 to 104 F
