Appleton

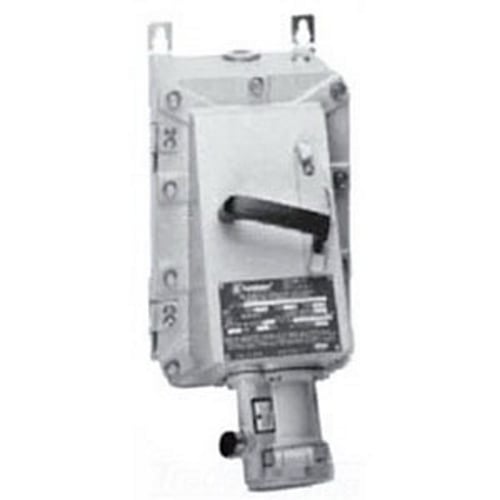

EBRH Receptacles with Disconnect Switch; 600 Volt AC, 4-Pole, Copper-Free Aluminum

MFR:
Appleton Electric
MFR #:
EBRH3034DS
UPC:
781381513418
Item #:
22811

Availability

Location Available Qty
Available Available to Order
$10,714.15 each

EBRH Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7CD

Manuals and Documentation
Catalog Number EBRH3034DS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 30
Application For ACP And CPH Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Includes 3-pole 150 AMP FD circuit breaker and molded case switch; Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection; Explosionproof, dust-Ignitionproof; Weatherproof spring cover; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings; one top to bottom; Fiber glass reinforced polyester insulating blocks;
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360
UPC 781381513418
GTIN 00781381513418
Item Type EBRH Series Receptacle With Mounting Box
Voltage Rating 600
