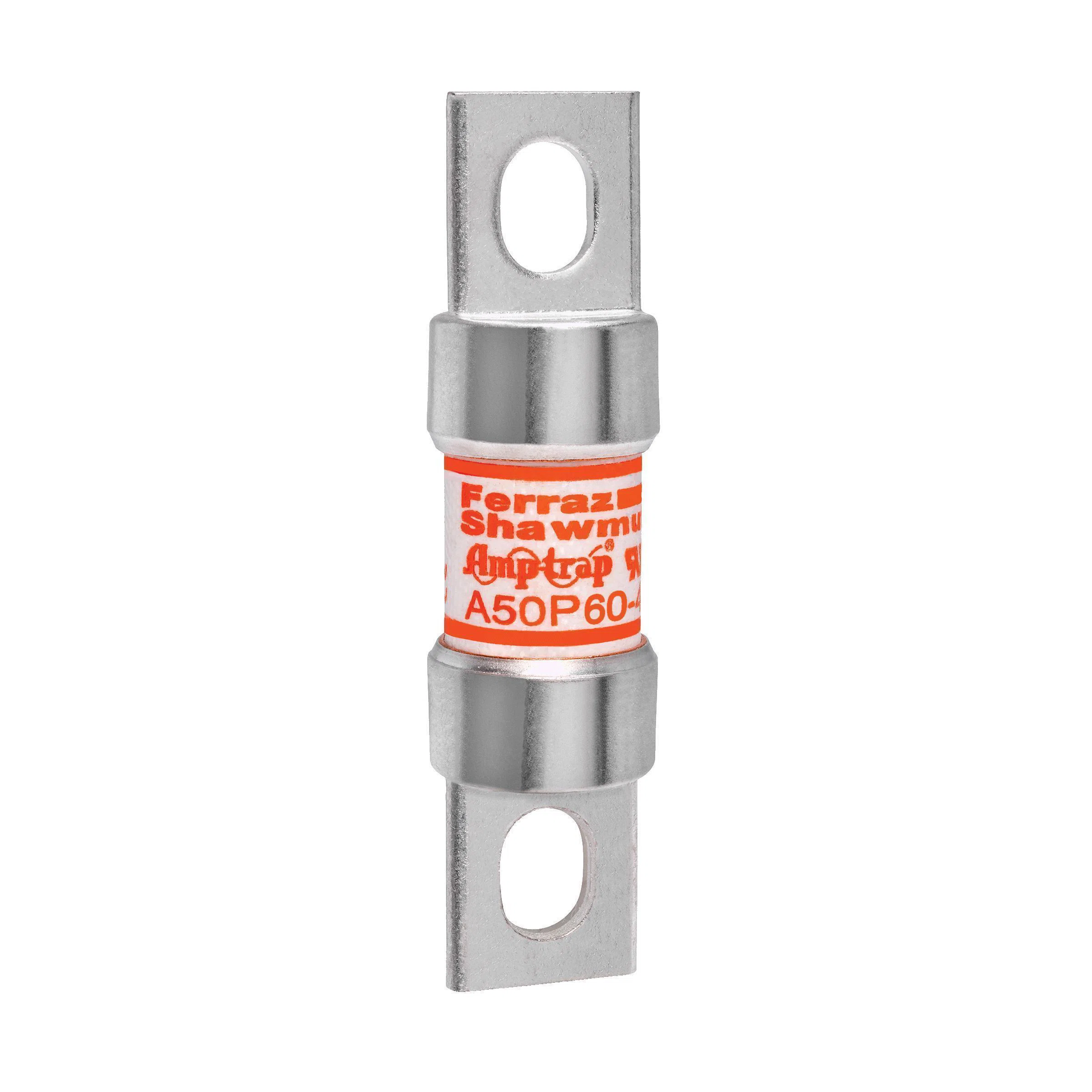

A50P60-4 Amp-Trap Current Limiting Fast Acting Semiconductor Fuse, 60 A, 500 V AC, 100 kA Interrupt, Cylindrical Body
- MFR:
- MERSEN
- MFR #:
- A50P60-4
- UPC:
- 782001946005
- Item #:
- 228016
A50P60-4 Amp-Trap Current Limiting Fast Acting Semiconductor Fuse, 60 A, 500 V AC, 100 kA Interrupt, Cylindrical Body
- MFR #:
- A50P60-4
- UPC:
- 782001946005
- Item #:
- 228016
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$234.97
each
A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.
Manuals and Documentation
Features
- Low I2T minimizes damage to protected components on short circuit
- Controlled arc voltage reduces stress to circuit components during fuse clearing
- Choice of mounting types helps in equipment design
- North American round style
- Tin-plated copper contact
| Manufacturer Part Number | A50P60-4 |
| Brand | Mersen |
| Manufacturer | MERSEN |
| UPC | 782001946005 |
| Country Of Origin | MX |
| Amperage Rating | 60 A |
| Material | Fiber |
| Mounting Type | Bolt |
| Series | A50P |
| Type | Current Limiting Fast Acting |
| Voltage Rating | 500 V AC |
| Alternative Part Number | 7716630 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | UL 60314 | UL Guide No. JFHR2 |
| Application | For protection of DC drives, UPS and other equipment of 500 V or less |
| Body Size | 0.81 in Dia x 3.19 in L |
| Body Type | Cylindrical |
| Interrupt Rating | 100 kA |
| Rejection Non Rejection | Non-Rejection |
| Response Time | 10 ms |
| Terminal Type | Blade |
