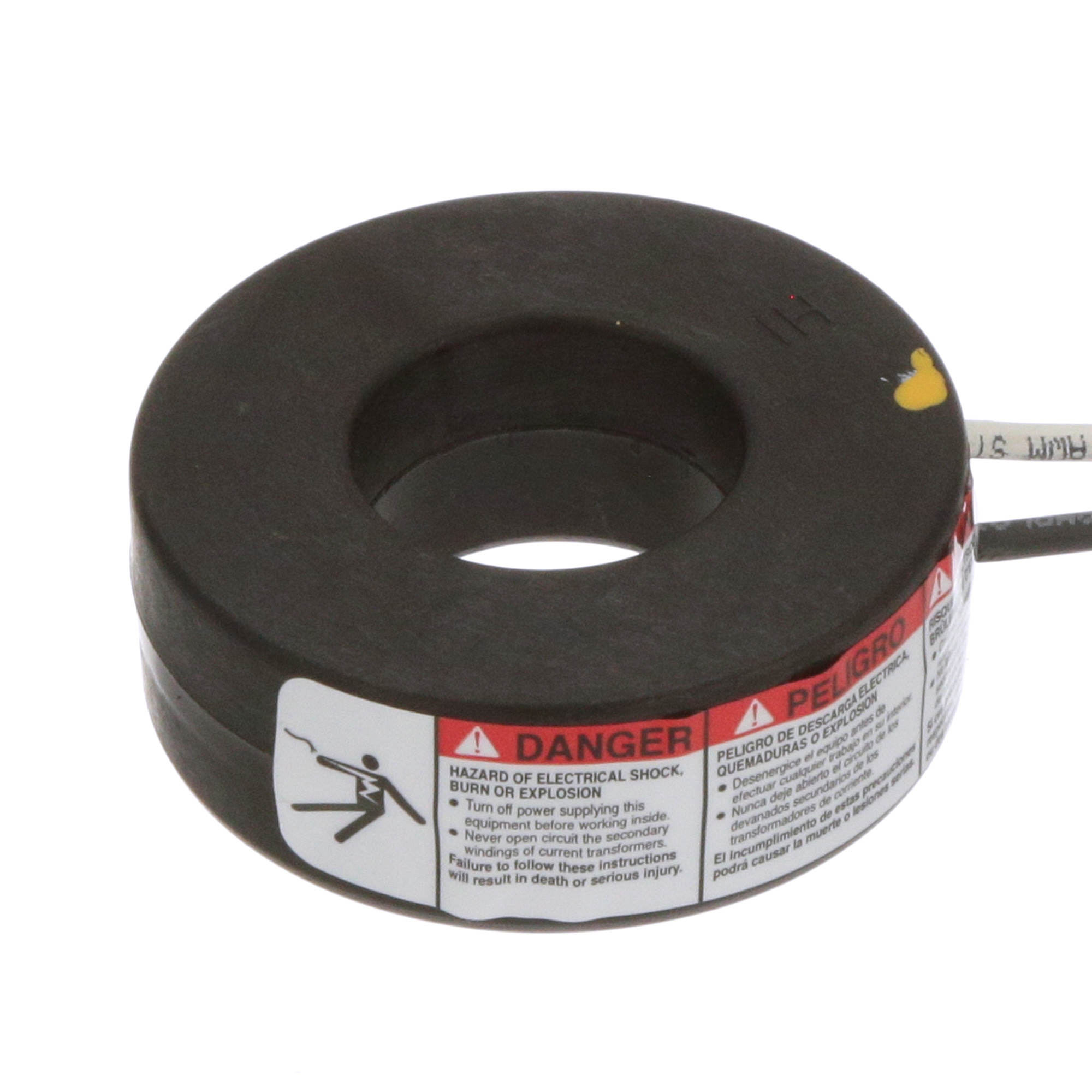

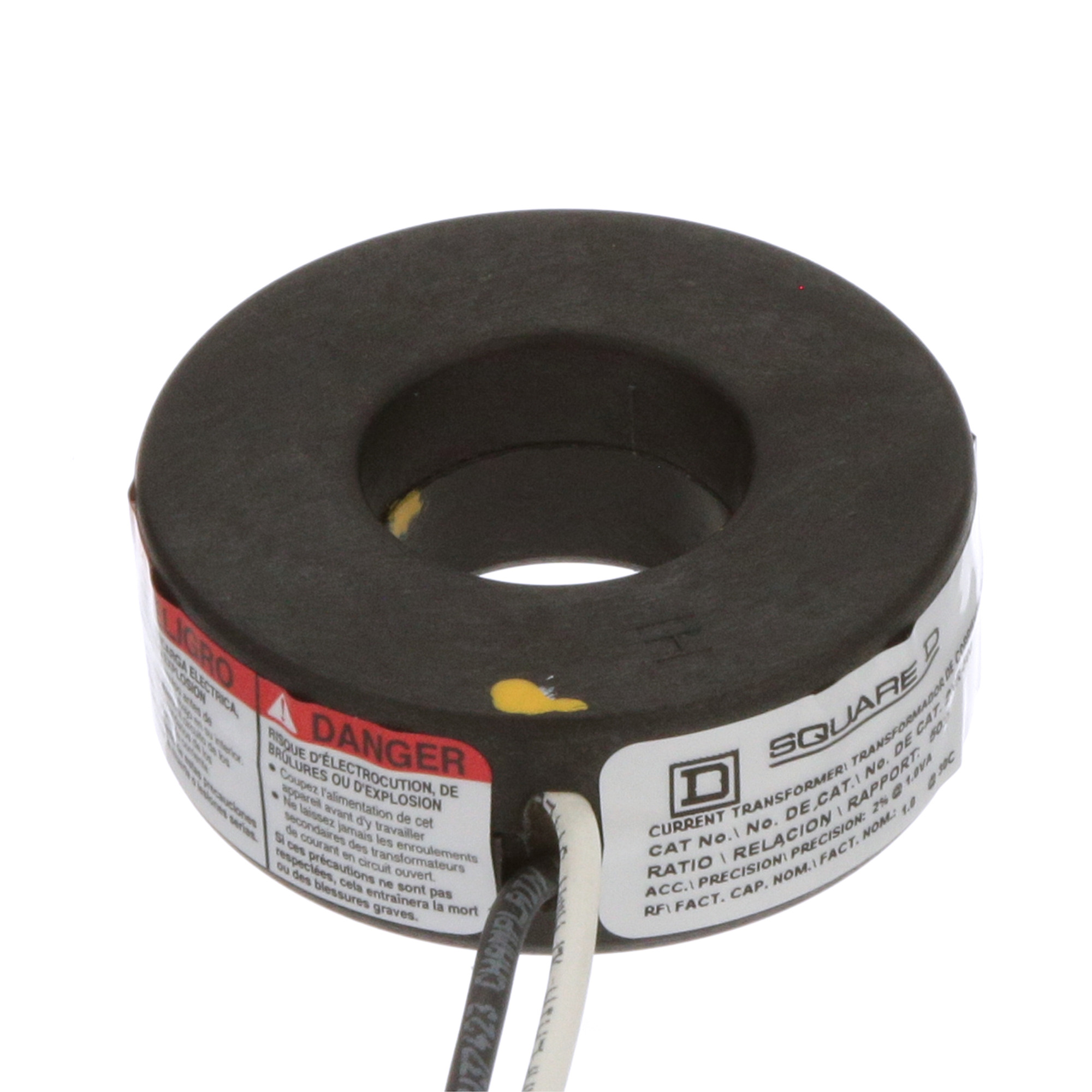

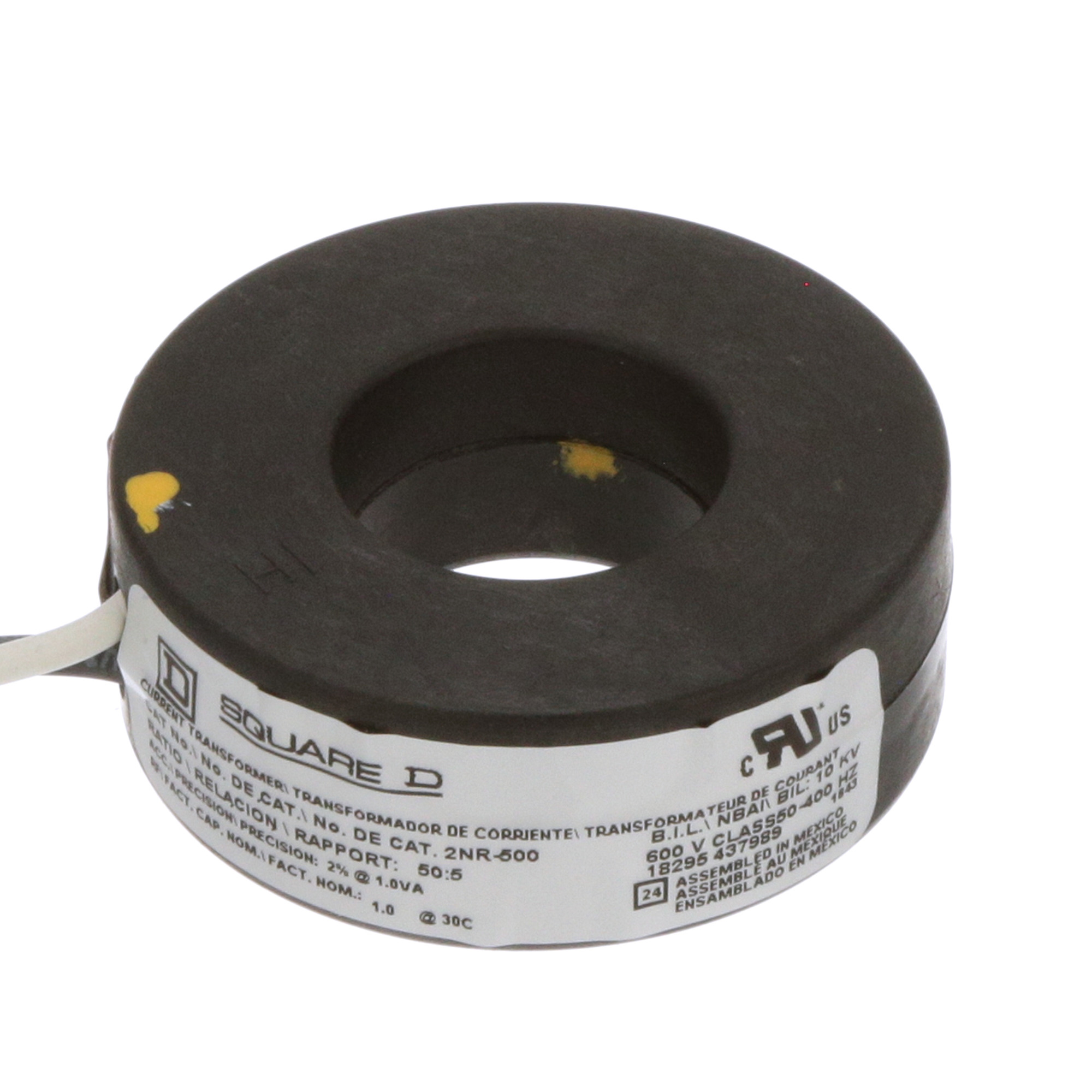

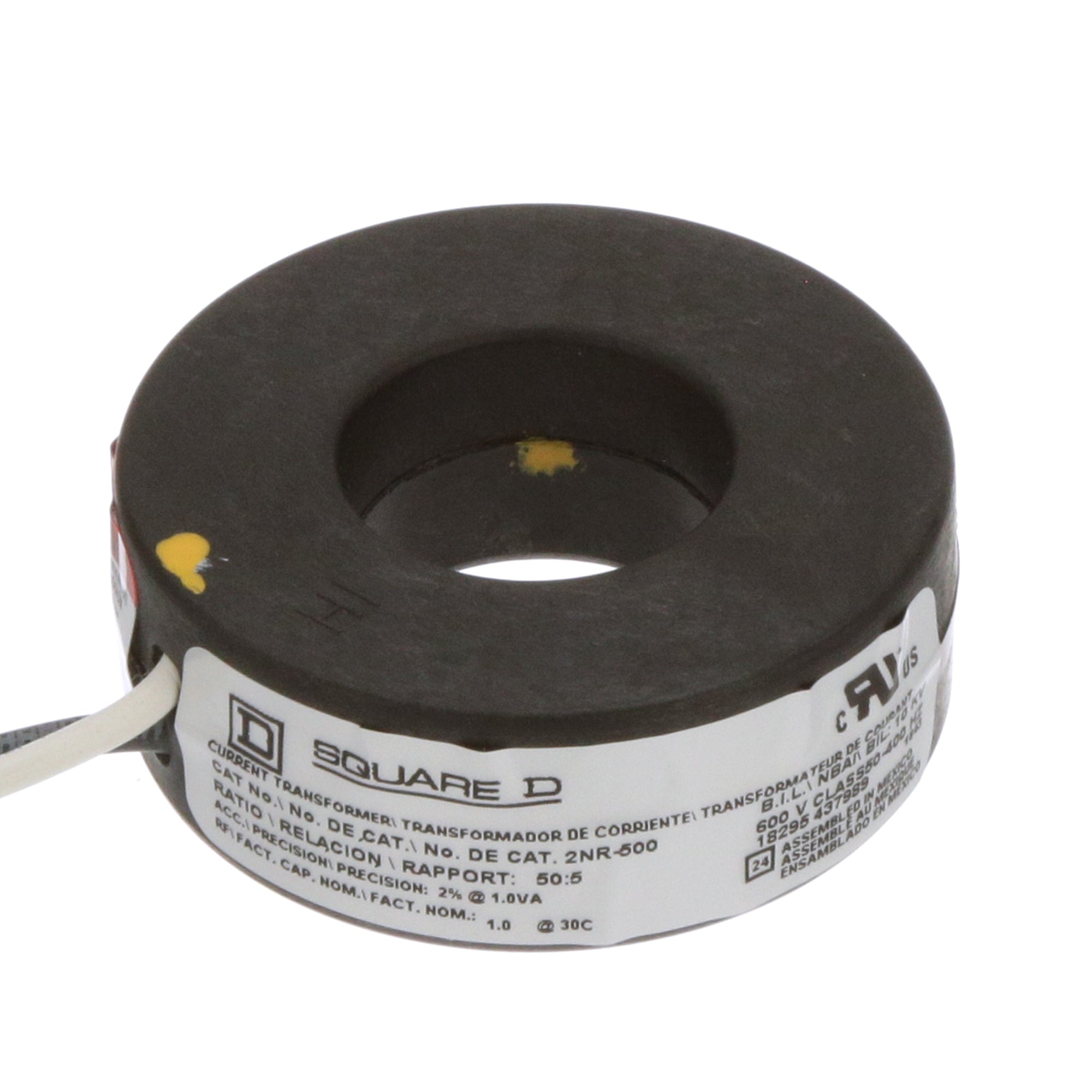

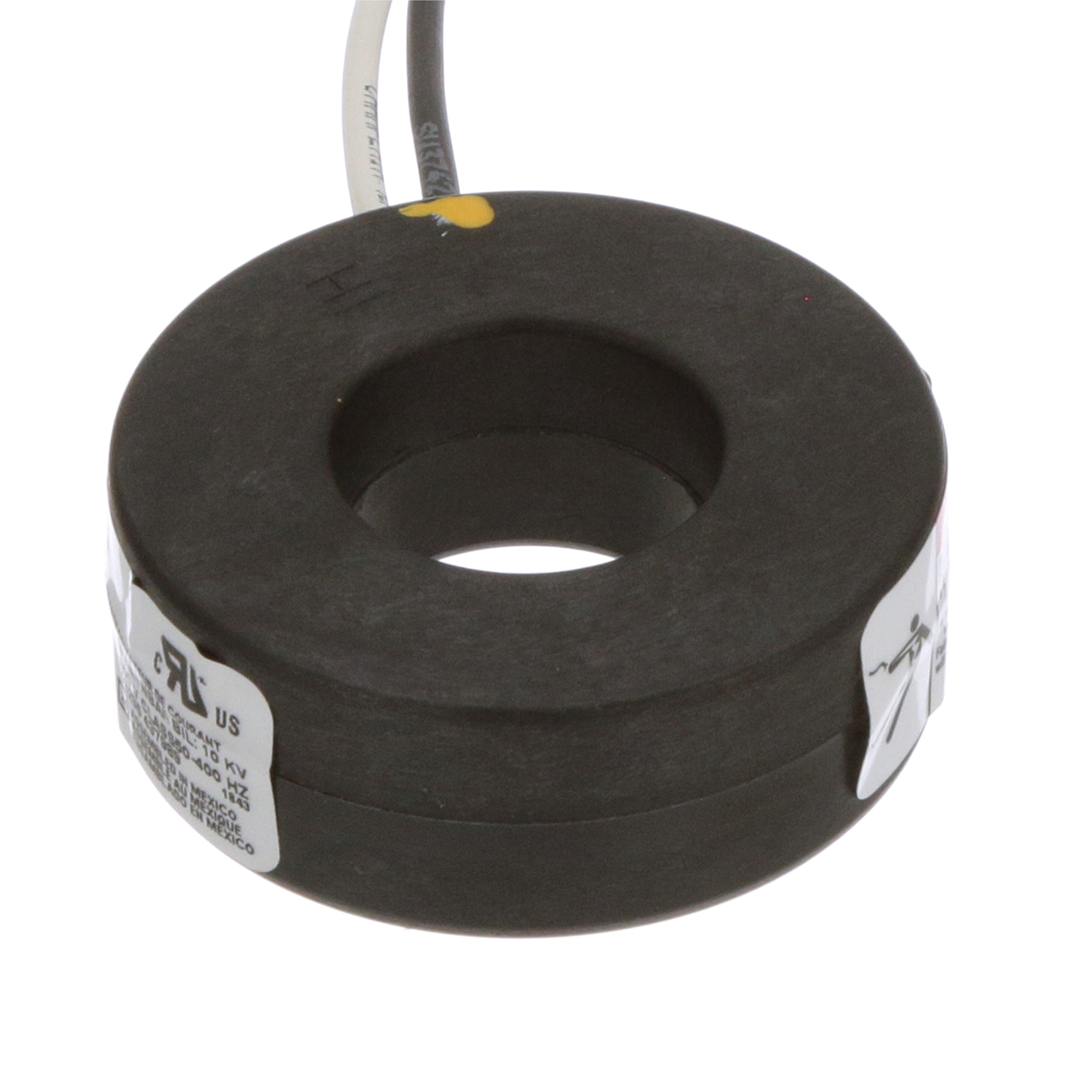

2NR500 Transformer, 50:5 Current Ratio, 50 A Primary, 5 A Secondary, 600 V AC
- MFR:
- Schneider Electric
- MFR #:
- 2NR500
- UPC:
- 785901098935
- Item #:
- 227800
2NR500 Transformer, 50:5 Current Ratio, 50 A Primary, 5 A Secondary, 600 V AC
- MFR #:
- 2NR500
- UPC:
- 785901098935
- Item #:
- 227800
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$168.29
each
Square D offers a line of instrument current and voltage transformers that are used for measurement and control of distribution equipment. There are 5 different current transformer configuration which are General Purpose Round, Toridal, Bushing, Rectangular, and Split Core configurations. There are also 3 different type of voltage transformers which have varying levels of accuracy for different applications. This product is current transformer with a current rating ratio of 50 to 5 with a window size of 1 and 1/8 inch with a rated power of 1 VA. This transformer is NEMA 1 degree of protection and is UL, CA and ANSI certified.
Manuals and Documentation
| Catalog Number | 2NR500 |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | DESIGNED FOR AMMETER USE |
| Connection | Flying leads 24 in, AWG 16 |
| Enclosure | NEMA 1 |
| Mounting | Direct |
| Phase | 1 |
| Special Features | GENERAL PURPOSE CURRENT TRANSFORMER,FLYING LEADS 24 IN, AWG 16 |
| Standard | UL Recognized |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=449685&lang=en-us |
| UPC | 785901098935 |
| GTIN | 00785901098935 |
| Item Type | General Purpose Current Transformer |
| Size | Ø 1.13 IN |
