Telemecanique

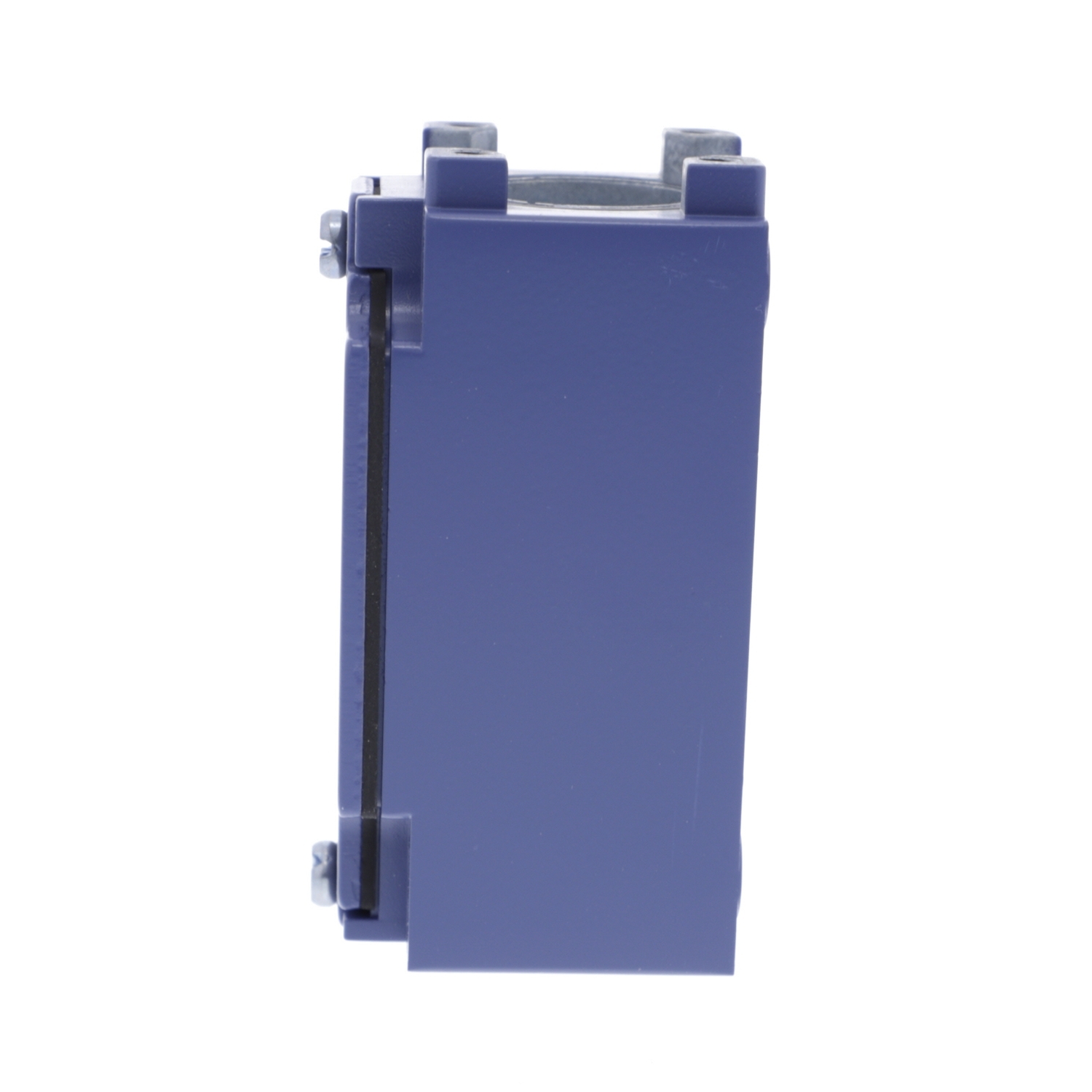

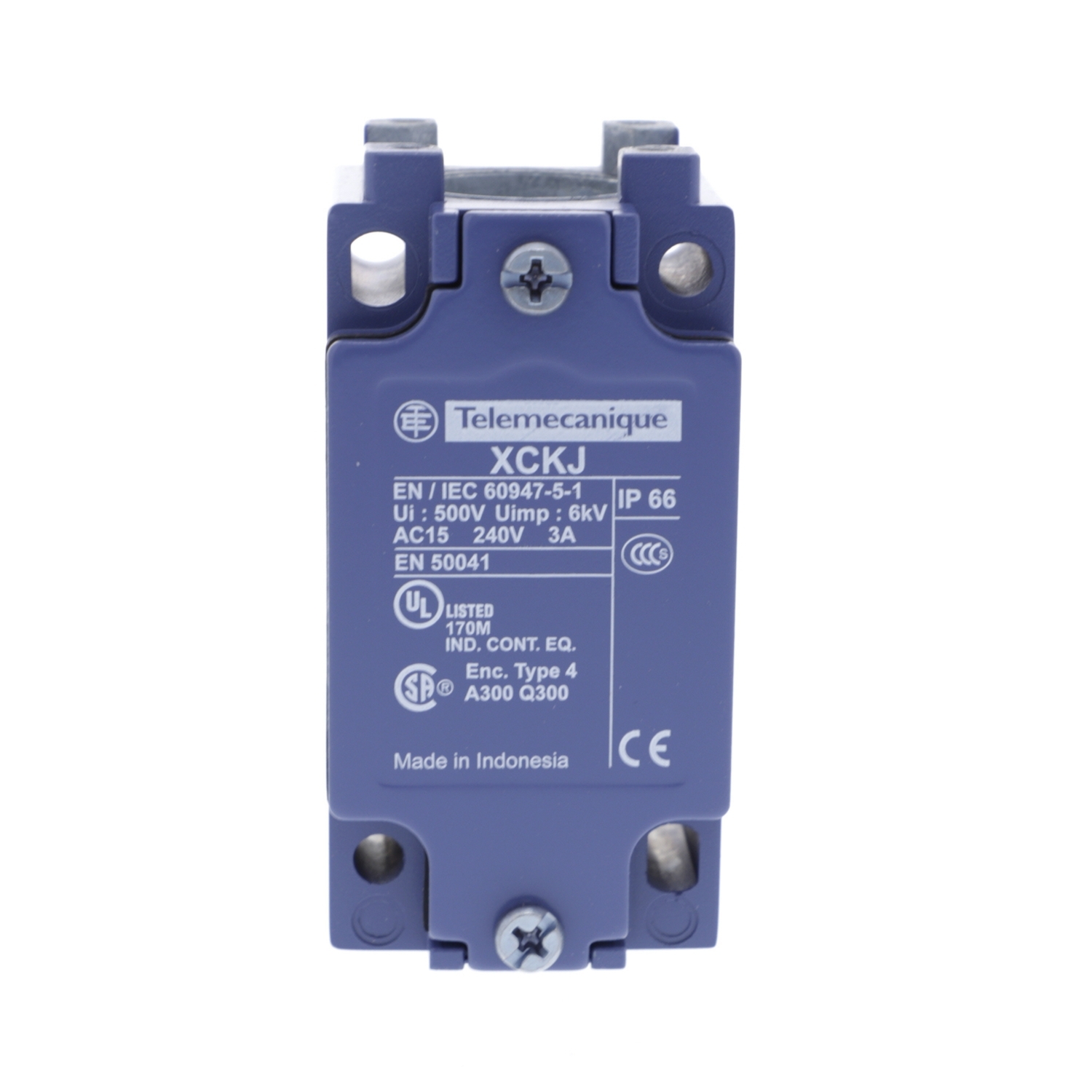

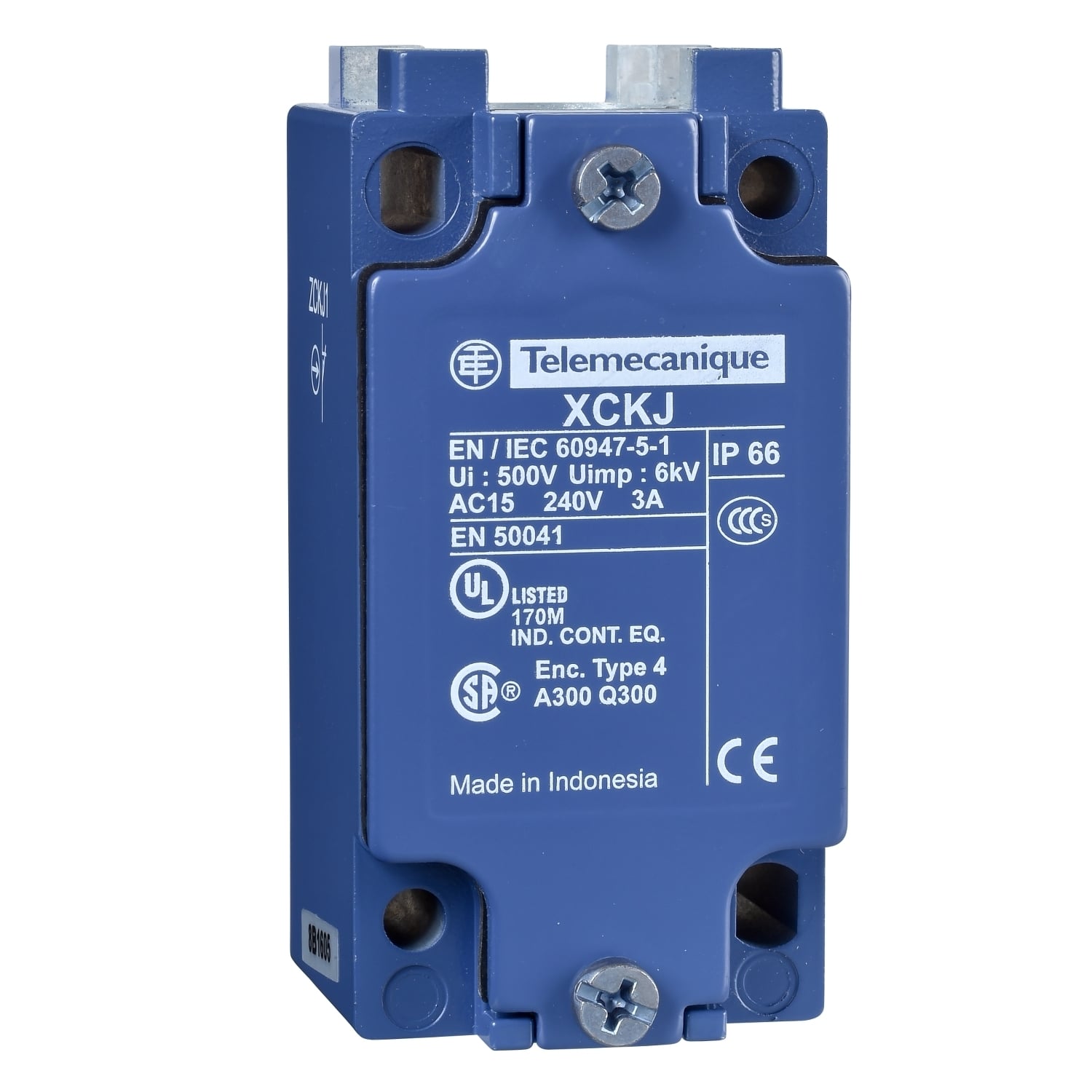

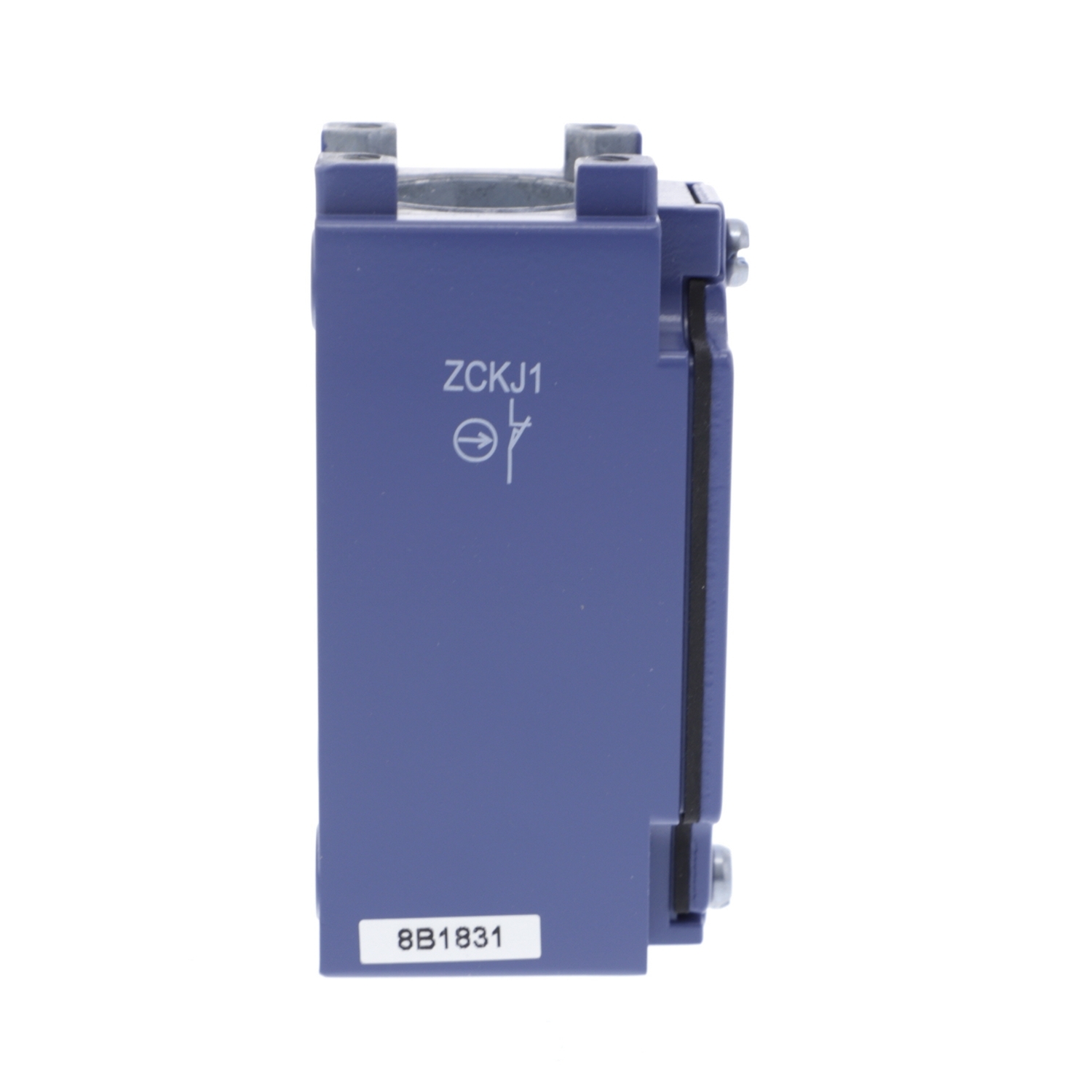

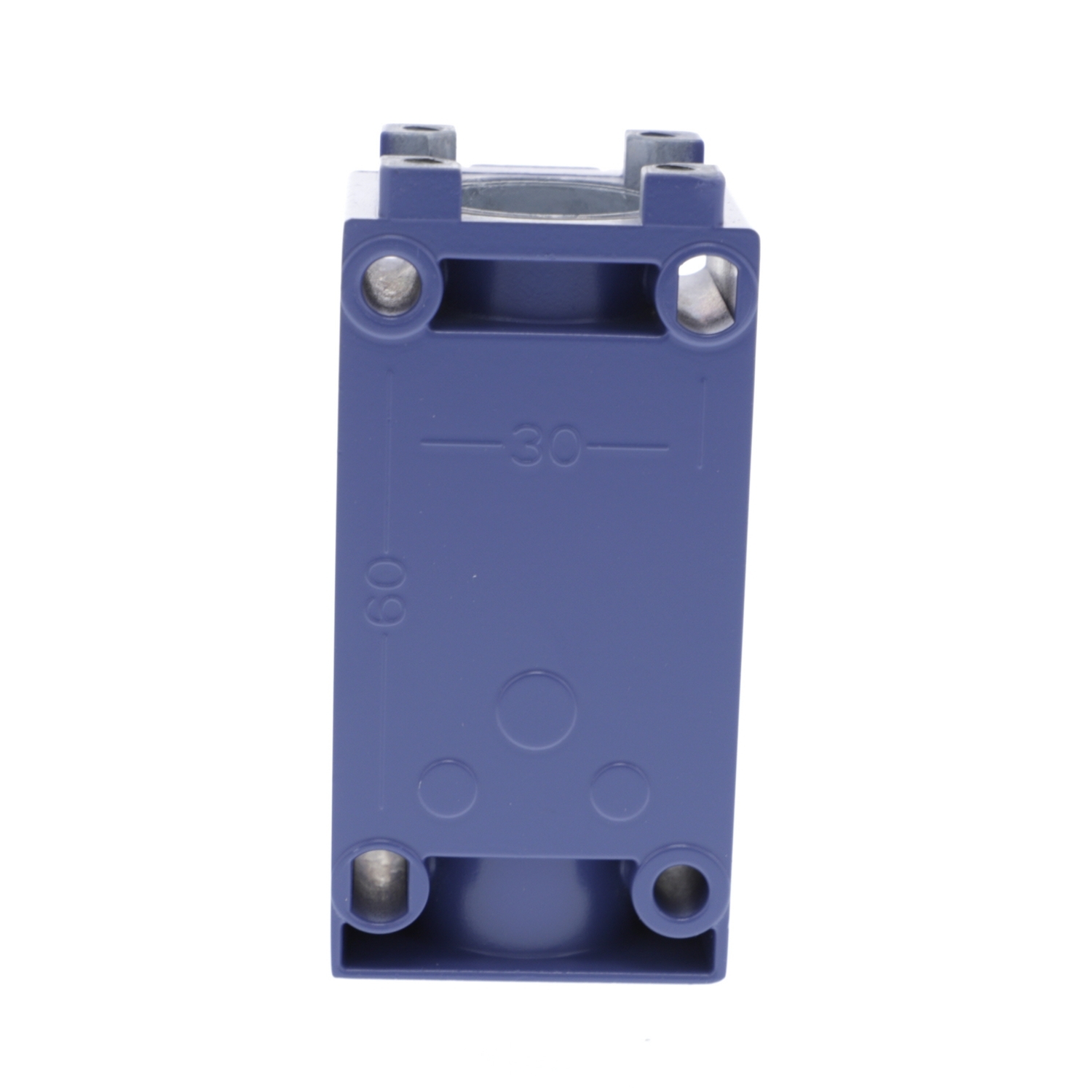

ZCKJ5H7 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKJ Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP66/IK07 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ5H7
UPC:
785901466697
Item #:
227763

Availability

Location Available Qty
Available Available to Order
$149.17 each

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKJ5H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure IP66
Operating Cycles 5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879730&lang=en-us
UPC 785901466697
GTIN 03389110599558
Item Type Limit switch body
Size 1.73
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
