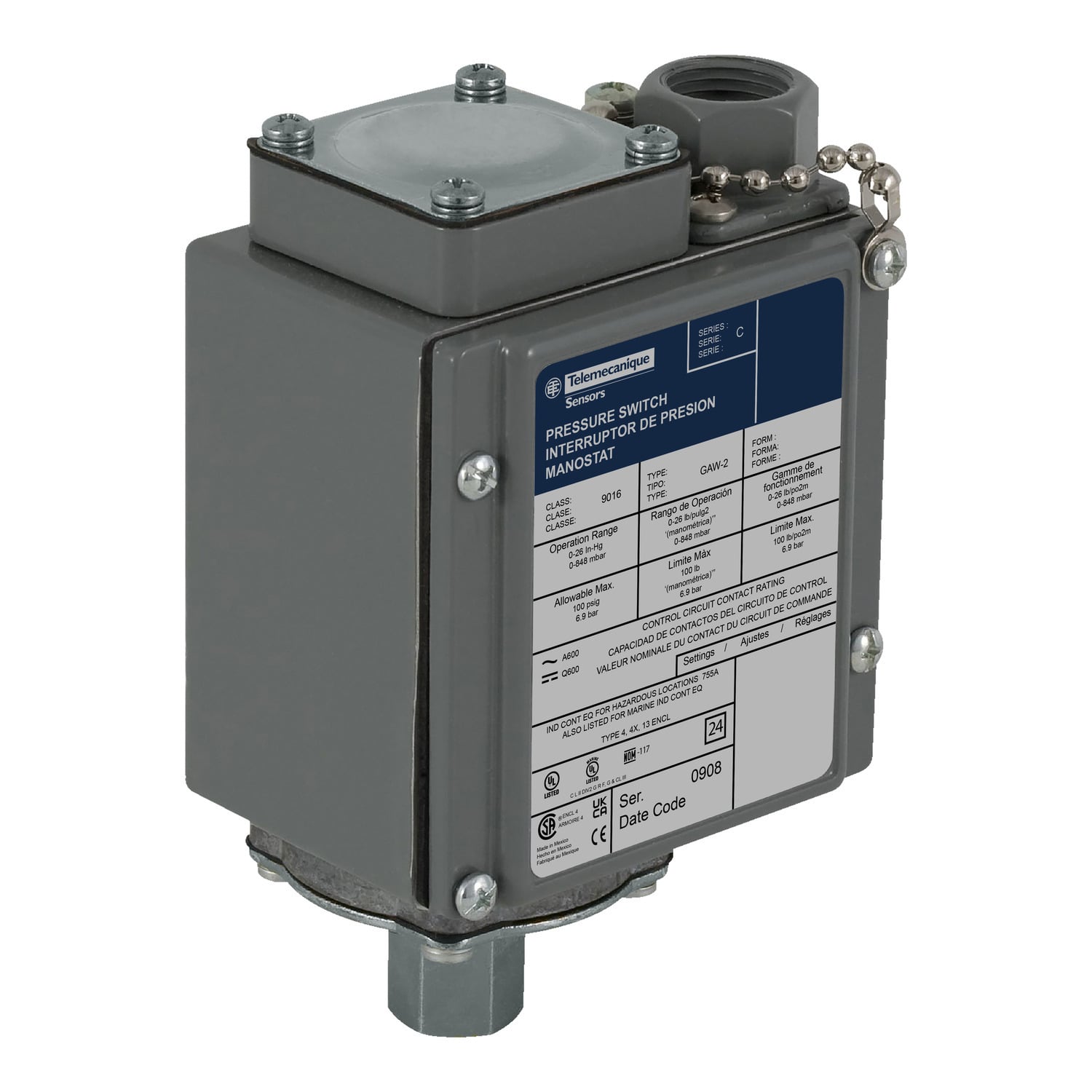

9016GAW22 Type GAW Electromechanical Vacuum Switch, 480 V AC, 10 A, Nitrile Diaphragm Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- 9016GAW22
- UPC:
- 785901053811
- Item #:
- 227466
9016GAW22 Type GAW Electromechanical Vacuum Switch, 480 V AC, 10 A, Nitrile Diaphragm Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact
- MFR #:
- 9016GAW22
- UPC:
- 785901053811
- Item #:
- 227466
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$864.22
each
vacuum switch 9016G - adjustable scale - 2 thresholds - Set 0 to 25 InHg
Manuals and Documentation
| Catalog Number | 9016GAW22 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Sensitive control application;Regulation between two thresholds |
| Contact Configuration | 2(NC-NO), DPDT, Form ZZ, snap action, silver nickel contacts |
| Enclosure | Die cast aluminium alloy 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | 8 screw terminals;- |
| Standard | 2 GN 40-150 HZ)IEC 68-2-6,50 GN IEC 58-2-27,CSA FILE LR25490-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT,UL 508 |
| UPC | 785901053811 |
| GTIN | 00785901053811 |
| Item Type | Electromechanical vacuum switch;Adjustable differential |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | 10-185 A Degrees F |
| System Pressure | 100 |
