Telemecanique

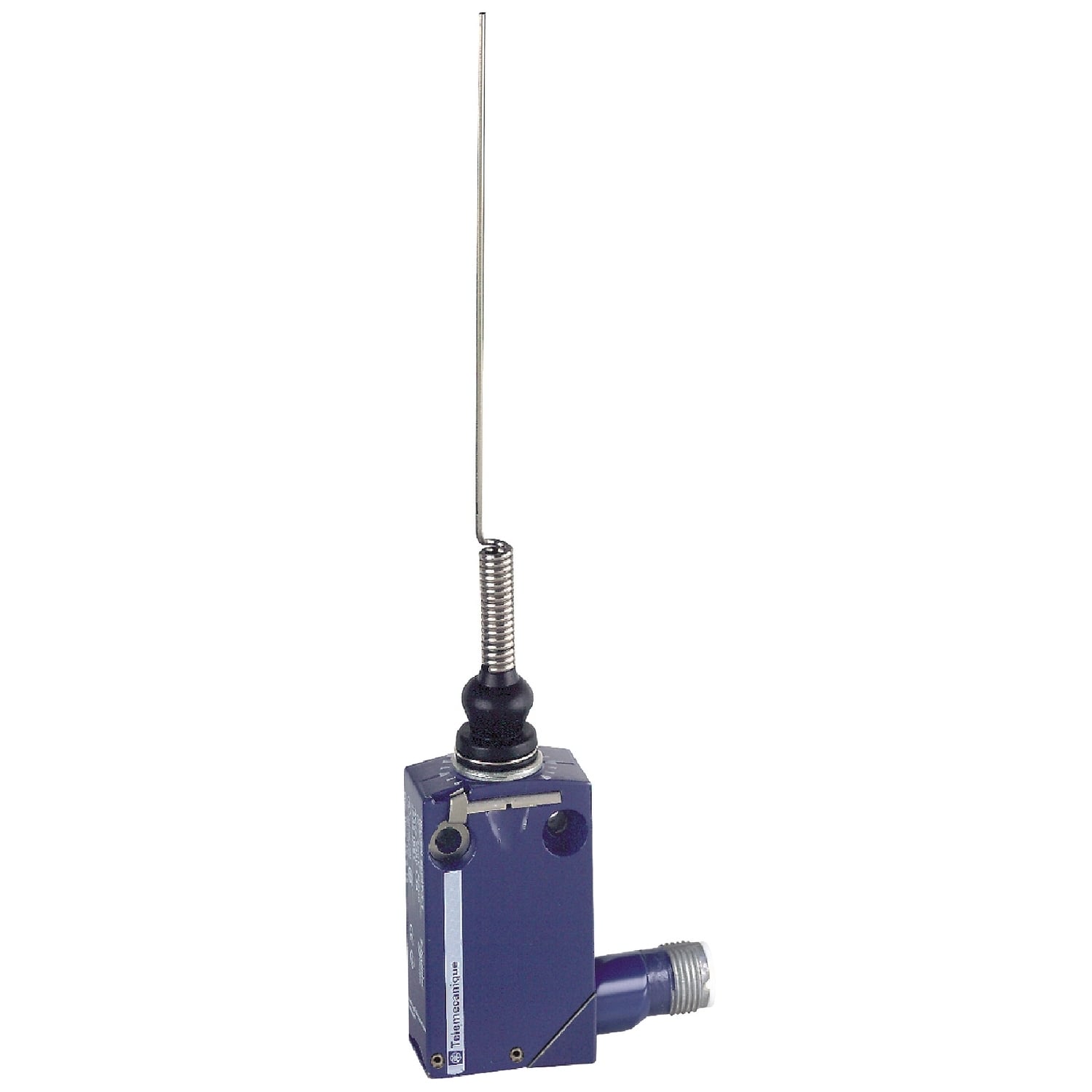

XCMD2106M12 OsiSense Heavy Duty Miniature Standard Format Limit Switch, 240 VAC, 250 VDC, 3 A, Cat Whisker Actuator, 1CO Contact, 1 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2106M12
UPC:
785901597247
Item #:
226299

Availability

Location Available Qty
Available Available to Order
$126.76 each

limit switch XCMD - cat's whisker - 1C/O - snap - M12

Manuals and Documentation
Catalog Number XCMD2106M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Multi-directional approach;Snap action;By any moving part
Actuator Spring return cat''s whisker
Amperage Rating 3
Application MINIATURE VARIABLE
Connection Male connector M12, 4 pins
Contact Configuration 1 C/O
Enclosure NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Mounting By The Body
Number of Poles 1
Operating Cycles 5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features METAL,PLUG-IN BODY
Standard 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL-CSA-CCC,CLASS I IEC 61140-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857674&lang=en-us
UPC 785901597247
GTIN 03389110221589
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
Voltage Rating 1.5 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.1 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A
