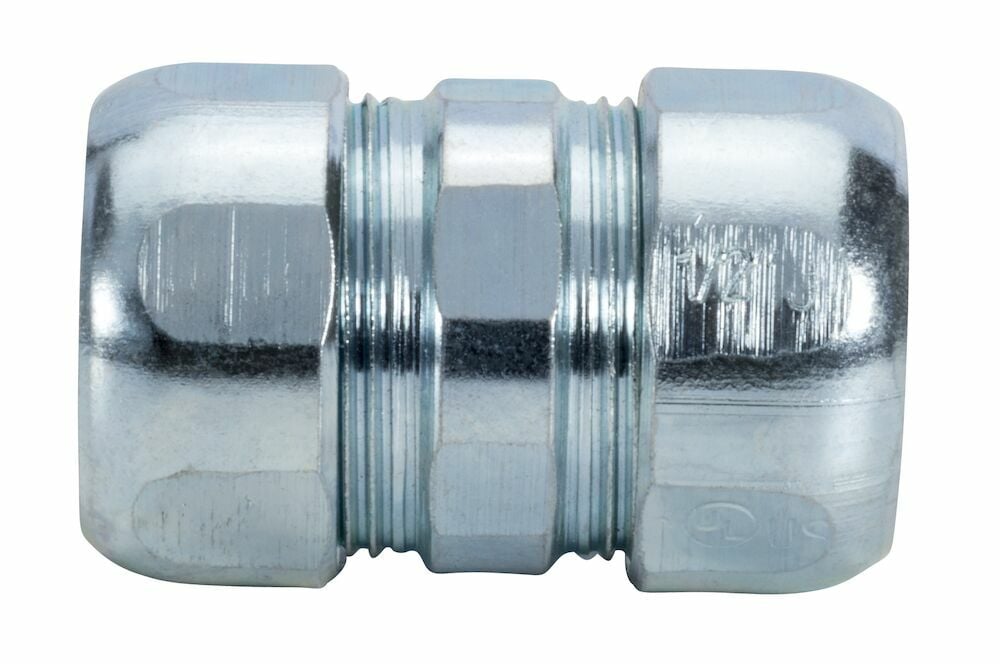

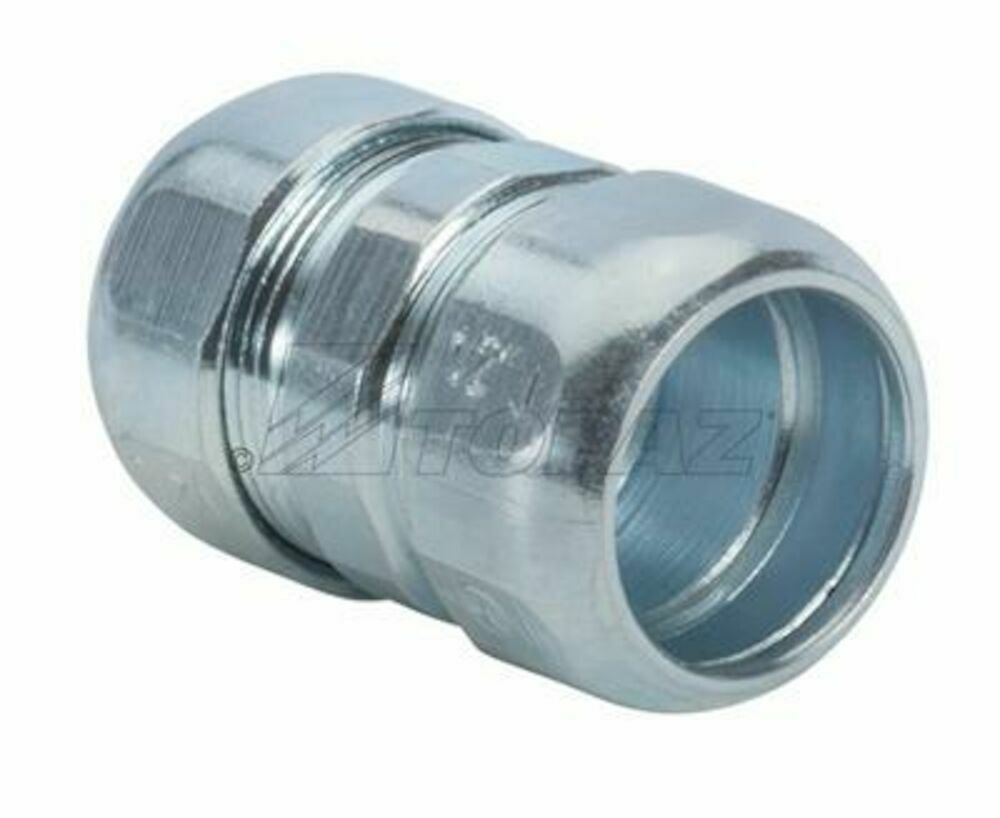

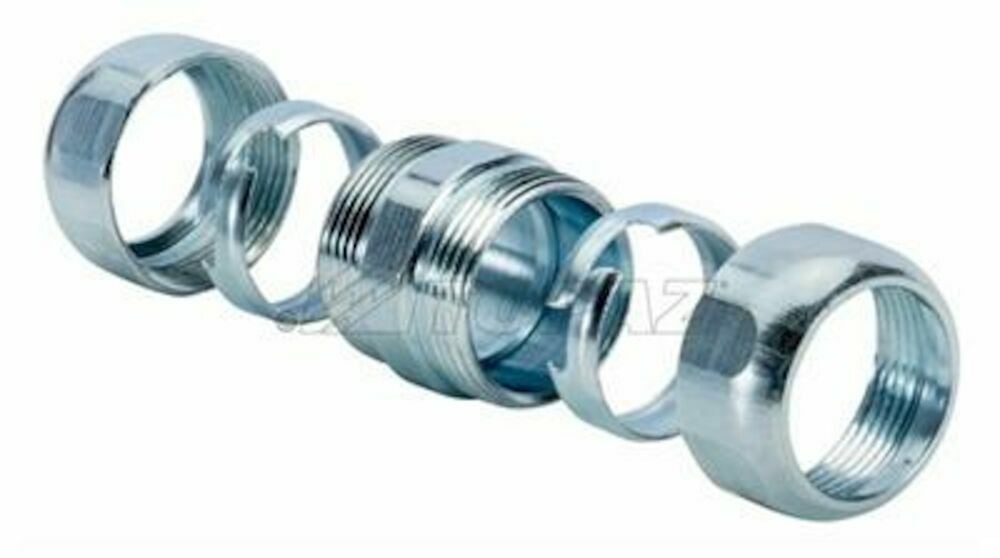

The Topaz line of efficient and dependable Rigid Couplings feature a compression type assembly and provide a concrete tight connection. High quality steel construction with zinc plated finish promotes longevity and performance. Applications include use to join two lengths unthreaded Rigid or IMC conduit to steel outlet box or metal enclosure. Available in sizes from 1/2 to 2 and UL listed.
Manuals and Documentation
| Catalog Number | 251TZ |
| Manufacturer | Southwire |
| Brand | Topaz |
| Country of Origin | India |
| Made in USA | No |
| Connection | Female Threaded |
| Flexibility | Rigid Conduit |
| Installation Type | Compression |
| Material | Steel |
| Special Features | Features: Concrete Tight |
| Standard | UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D |
| UPC | 751338121409 |
| GTIN | 00751338121409 |
| Item Type | Rigid Coupling |
| Length | 1.74 |
| Length UOM | Inch |
| Outside Diameter | 1.17 IN |
| Trade Size | 1/2 IN |
