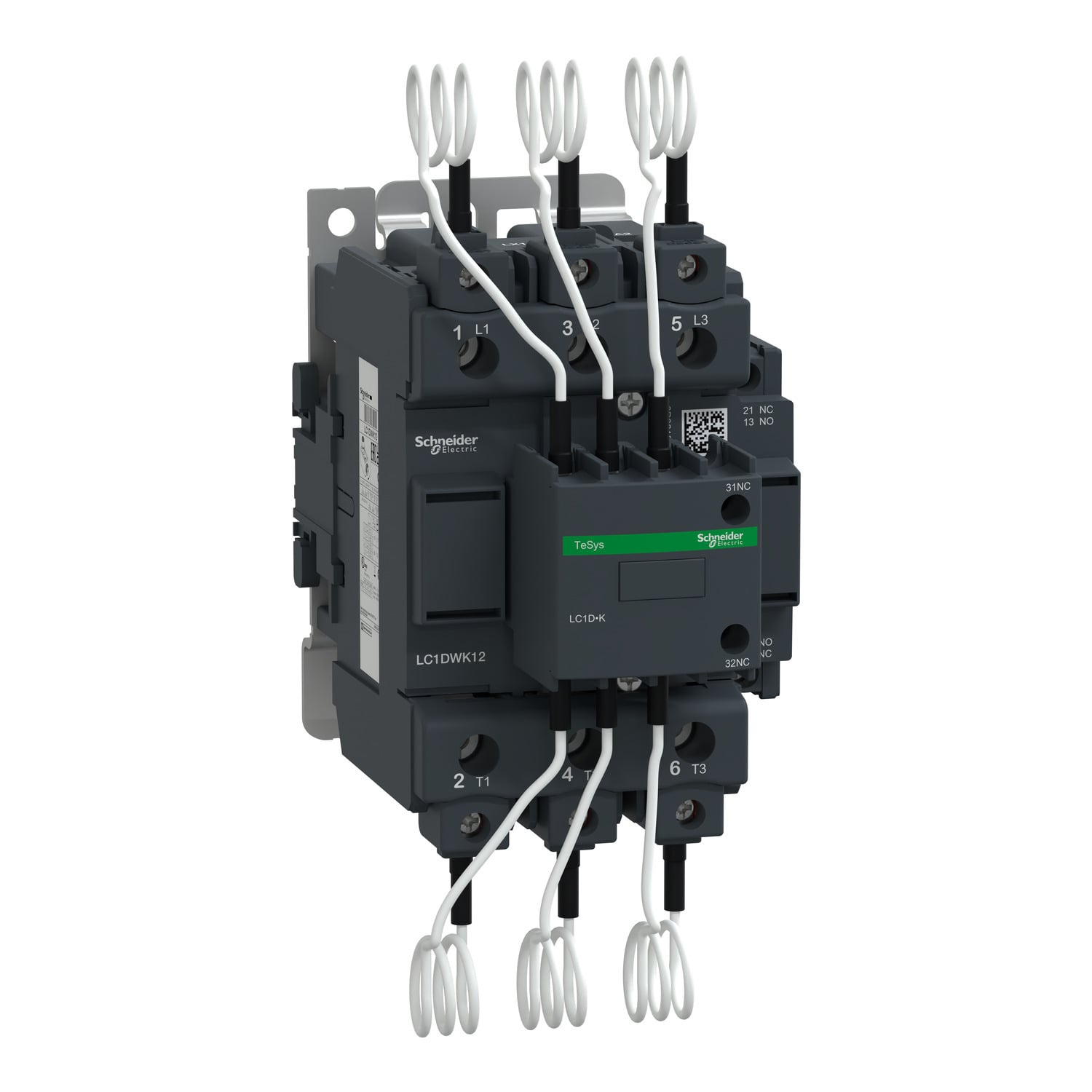

LC1DWK12P7 TeSys Capacitor Duty Contactor, 230 V AC V Coil, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1DWK12P7
- Item #:
- 225383
LC1DWK12P7 TeSys Capacitor Duty Contactor, 230 V AC V Coil, 3NO Contact, 3 Poles
- MFR #:
- LC1DWK12P7
- Item #:
- 225383
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,632.27
each
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
Manuals and Documentation
| Catalog Number | LC1DWK12P7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Power factor correction |
| Coil Voltage | 230 V AC 50/60 Hz |
| Standard | IECEE CB Scheme;UL;CSA;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55897444&lang=en-us |
| GTIN | 03389110060577 |
| Item Type | Capacitor duty contactor;LC1DWK |
