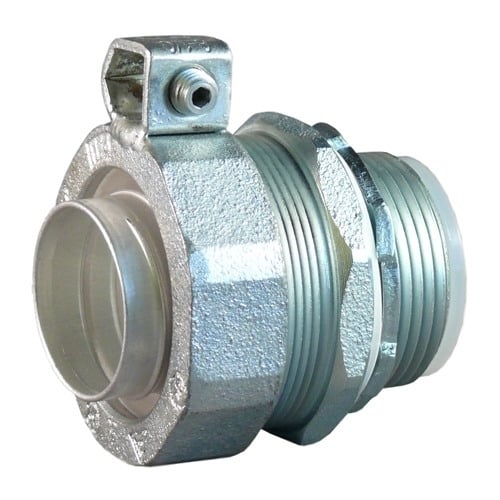

Straight Liquidtight Connector With Insulated Throat and External Grounding Lugs; 1-1/2 Inch, Tapered NPT, Malleable Iron, Chromate, Epoxy Powder Coat/Electro-Plated Zinc
MFR: Appleton Electric
MFR #: STB-150L
UPC: 781381403535
Item #: 225331
Straight Liquidtight Connector With Insulated Throat and External Grounding Lugs; 1-1/2 Inch, Tapered NPT, Malleable Iron, Chromate, Epoxy Powder Coat/Electro-Plated Zinc
MFR #: STB-150L
UPC: 781381403535
Item #: 225331
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$121.47
each
Appleton Liquidtight STB-L Series Straight Connector with Insulated Throat and External Grounding Lugs. Conduit size: 1-1/2 IN, Material: Malleable iron body and compression nut. Grounding lugs size: 8-1/0. Suitable for use in Class I, Division 2
- Catalog Number
- STB-150L
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Liquidtight Flexible Metal Conduit
- Conductor Range
- 8 - 1/0 AWG
- Connection
- Threaded X Compression
- Finish
- Chromate, Epoxy Powder Coat/Zinc Electroplated
- Material
- Malleable Iron
- Special Features
- Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT); Malleable iron compression nut
- Standard
- Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
- UPC
- 781381403535
- GTIN
- 00781381403535
- Item Type
- STB Series Straight Liquidtight Connector
- Size
- 1-1/2
