Hubbell Wiring Device - Kellems

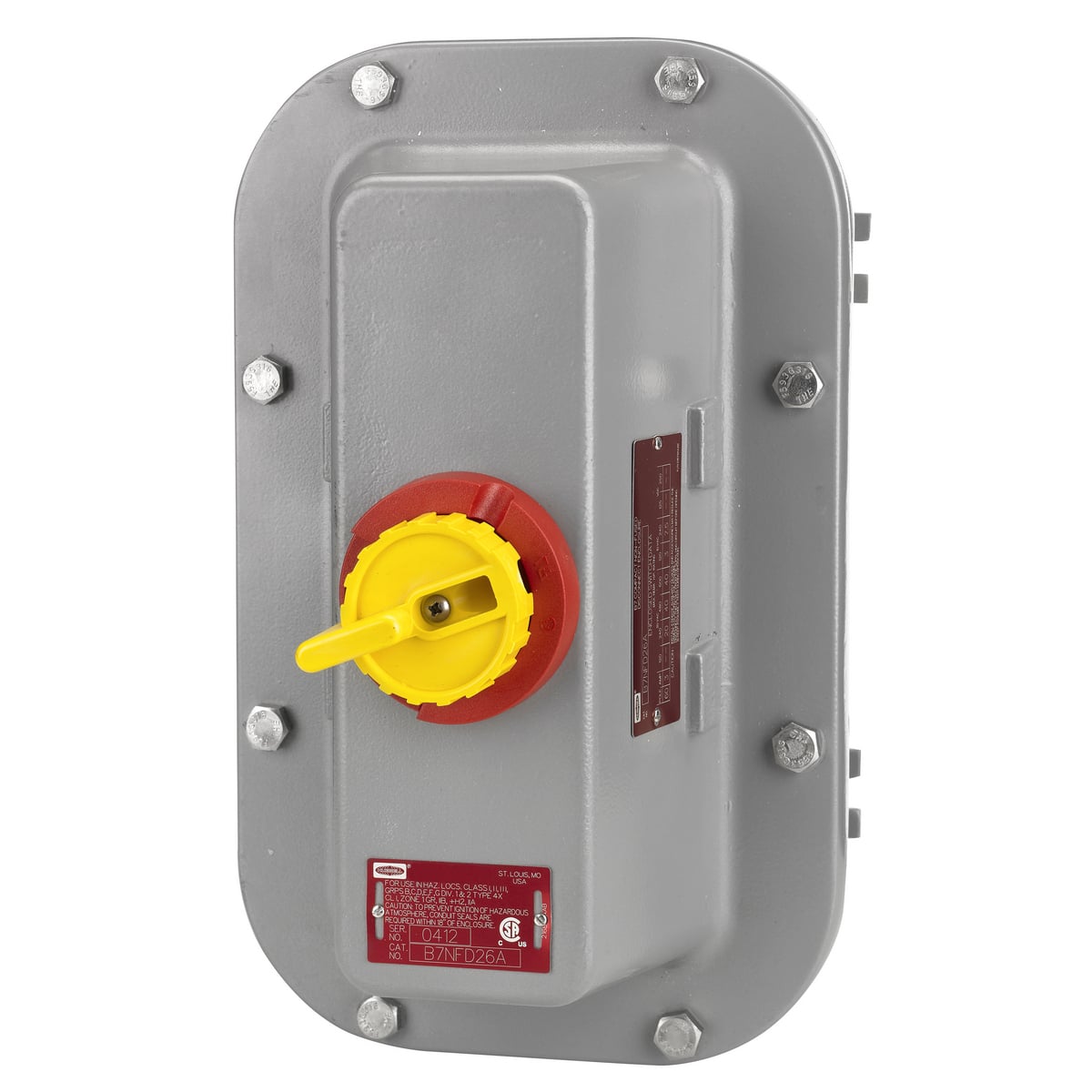

HBLB7NFD21AA 2-Position Complete Non-Fused Standard Hazardous Location Disconnect Switch, 600 V, 100 A, 50 hp, 3 Poles

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBLB7NFD21AA
UPC:
783585242644
Item #:
224987

Availability

Location Available Qty
Available Available to Order
$5,279.11 each

Hubbells hazardous location line of non-fused disconnect switches are typically used for applications with the presence of flammable gasses or vapors, ignitable dusts and fibers. They are also suitable for use in outdoor or indoor damp, wet and dirty locations or in areas where frequent wash downs, heavy rain, or water spray routinely occurs. These switches are compact in size to reduce cost and make it easier to position on the wall or piece of equipment. The enclosures are made of copper-free aluminum and have a polyester/epoxy finish to prevent corrosion. The highly visible handles can be locked out to comply with OSHA Lockout/Tagout regulations.

Manuals and Documentation
Catalog Number HBLB7NFD21AA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Action Snap
Actuator Lever
Amperage Rating 100
Application Extra Heavy Duty Industrial
Connection Terminal Screws
Contact Configuration Two Position
Contact Rating 100A
Enclosure Metallic
Frequency Rating 60Hz
Material Aluminum, Copper Free (less than 4/10 of 1%)
Mounting Mounting Feet
Number of Poles 3
Operating Cycles 6,000 Cycles
Special Features Hazardous Locations, With Aux Contact
Standard UL98 Certified
UPC 783585242644
GTIN 00783585242644
Item Type Switch with Aux Contact
Size 13.06 in x 8.13 in x 7.81 in
Environmental Conditions Indoors or Outdoors or Hazardous Atmosphere
Operating Temperature Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Voltage Rating 600
Wattage 60000 W
