Discontinued
Square D

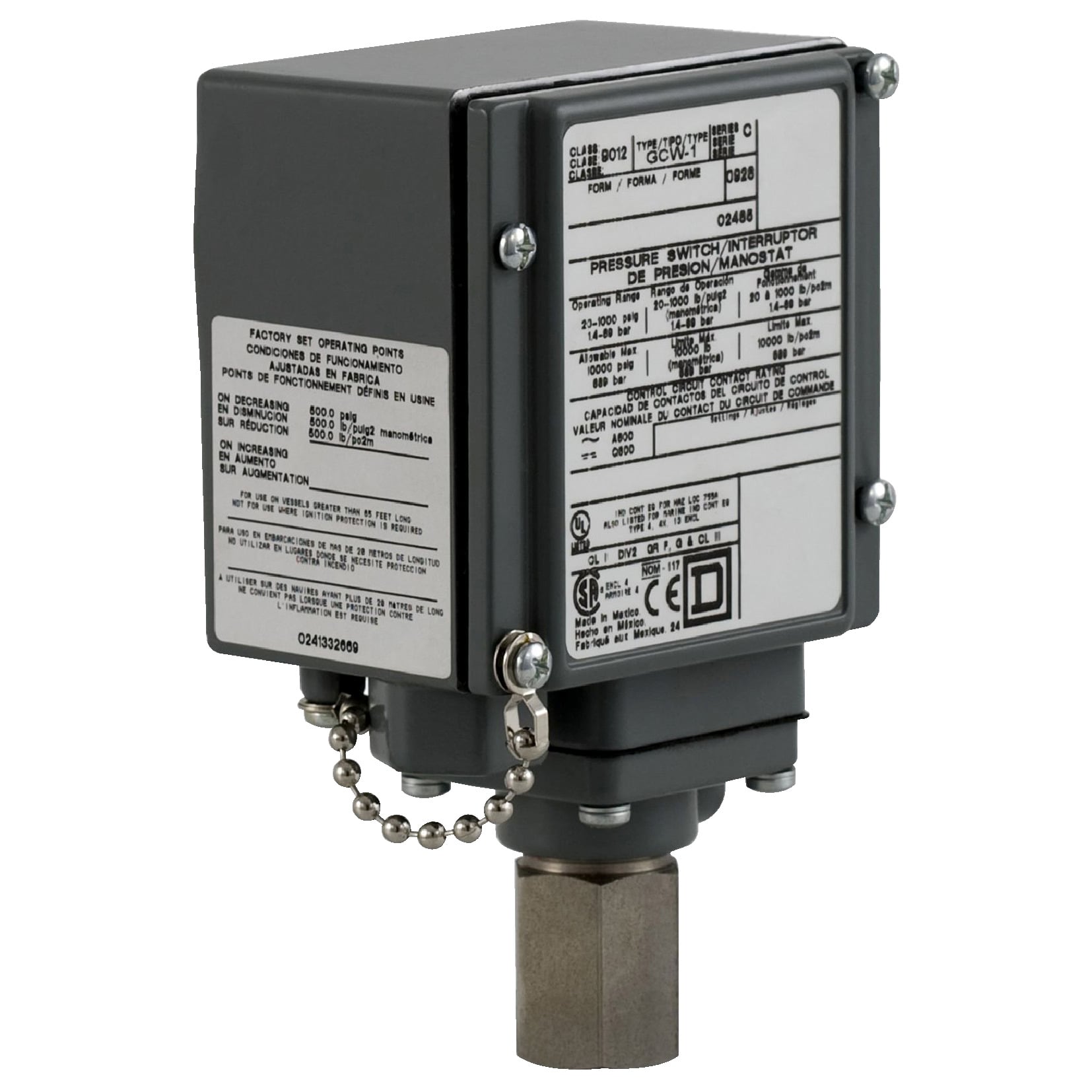

9012GFW23 Single Stage Electromechanical Pressure Switch, 170 to 5600 psi Pressure, 289 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection

MFR:
Schneider Electric
MFR #:
9012GFW23
UPC:
785901048596
Item #:
224550

Availability

Location Available Qty
Available Available to Order

pressure switch 9012G - fixed scale - 1 threshold - 170 to 5600 PSIG psig

Manuals and Documentation
Catalog Number 9012GFW23
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Application DETECTION OF 1 SINGLE THRESHOLD
Contact Configuration 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380
Operating Cycles 120 CYC/MN
Process Connection 0.25 INCH 18 NPTF UL 508
Special Features SCREW-CLAMP TERMINALS, AWG 22...AWG 12
Standard CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E12158 CCN NKPZ,CSA C22.2 NO 14-CE-UL 508
UPC 785901048596
GTIN 00785901048596
Item Type 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ELECTROMECHANICAL PRESSURE SWITCH,FIXED
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -10-185 A Degrees F
System Pressure 20000 PSI,5600 PSI
Cross Reference Products Omega PSW331|Schneider 9012GFW23|Schneider 9012GFW43|SquareD 9012GFW23
