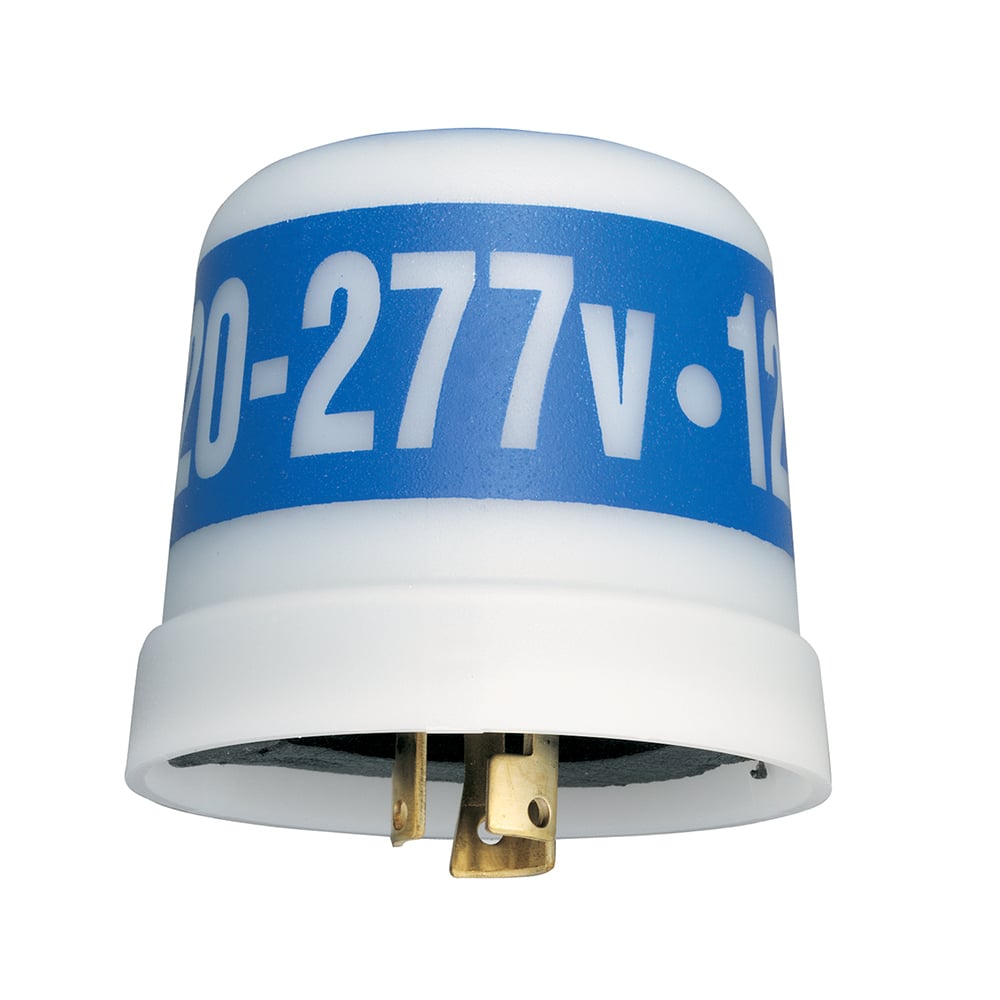

LED4536SC Photocontrol, 105 to 305 V AC, 1000 W Tungsten, 1800 VA Ballast, Fixture Mount
- MFR:
- Intermatic
- MFR #:
- LED4536SC
- UPC:
- 078275143647
- Item #:
- 224451
LED4536SC Photocontrol, 105 to 305 V AC, 1000 W Tungsten, 1800 VA Ballast, Fixture Mount
- MFR #:
- LED4536SC
- UPC:
- 078275143647
- Item #:
- 224451
Availability
| Location | Available Qty |
|---|---|
| Available | 23 |
$43.94
each
Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.
Manuals and Documentation
| Catalog Number | LED4536SC |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Lock Type |
| Enclosure | NEMA 410 |
| Frequency Rating | 50/60 HZ |
| Mounting | Twistlock Mount |
| Operating Cycles | 15000 |
| Sensitivity | 1.2-3 FC ON, 2-5 FC OFF |
| Sensor | Solid State Photo Sensor (Silicon IR Filtered) |
| Special Features | Features: Electronic Photocell, Zero-Cross Technology, LED Fixtures Totaling 2220 WTT @ 277 VAC, Non-Drifting Silicon Light Sensor IR Filtered, Fail Mode: ON |
| Standard | ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant |
| Supply Voltage | 105 - 305 VAC |
| UPC | 078275143647 |
| GTIN | 00078275143647 |
| Item Type | TwistLock Photocell |
| Size | 2.97 DIAMETER X 2.721 HEIGHT IN, 75.4 DIAMETER X 69.11 HEIGHT MM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Timing Range | 2 - 5 S |
