Discontinued

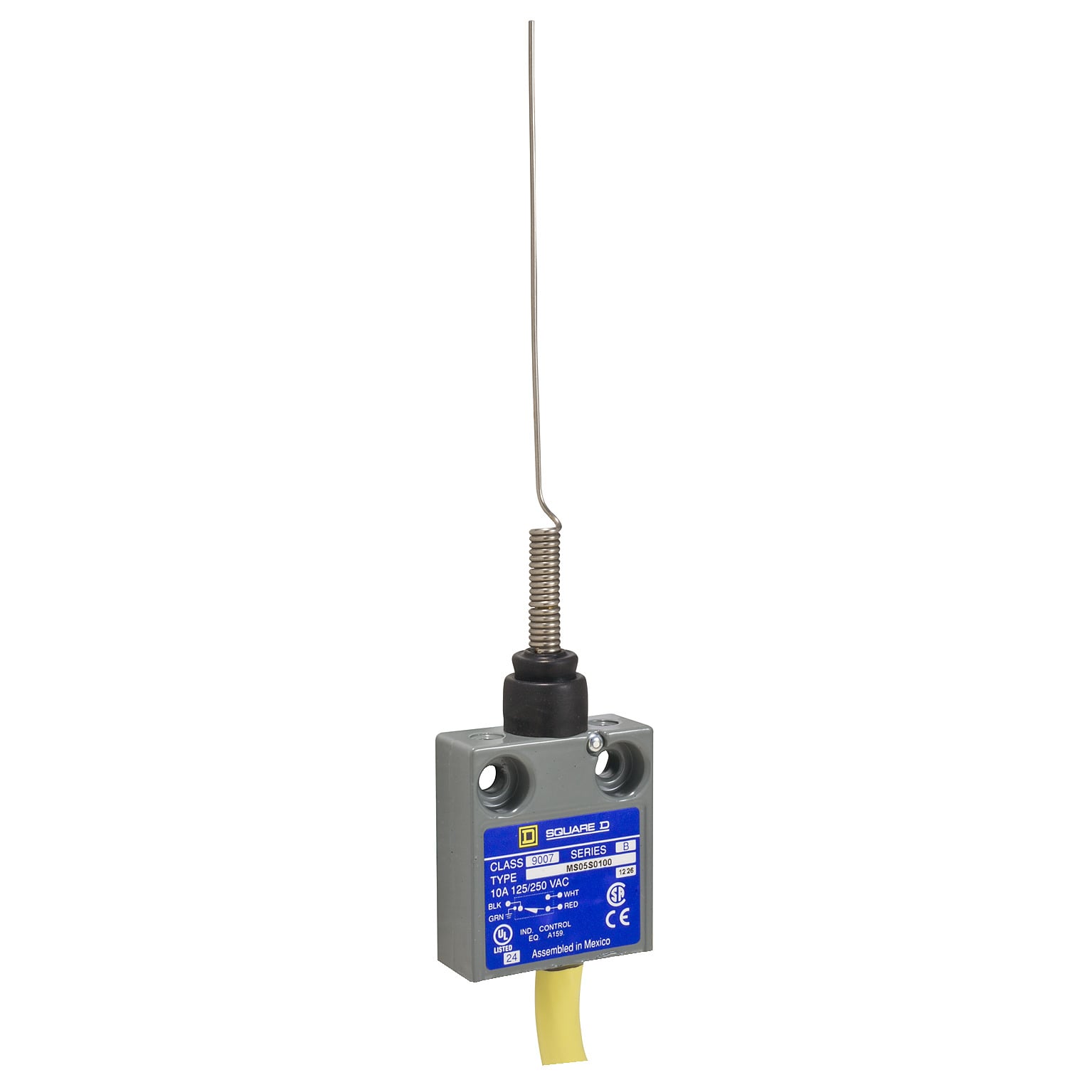

9007MS05S0200 Miniature Potted Fixed Limit Switch, 240 VAC, 10 A, 1NO-1NC Contact, 1 Poles
- MFR:
- Schneider Electric
- MFR #:
- 9007MS05S0200
- UPC:
- 785901159155
- Item #:
- 22365
Discontinued
9007MS05S0200 Miniature Potted Fixed Limit Switch, 240 VAC, 10 A, 1NO-1NC Contact, 1 Poles
- MFR #:
- 9007MS05S0200
- UPC:
- 785901159155
- Item #:
- 22365
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
Manuals and Documentation
| Catalog Number | 9007MS05S0200 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | BY ANY MOVING PART,MULTI-DIRECTIONAL APPROACH,SNAP ACTION |
| Actuator | SPRING RETURN WIRE WHISKER STEEL - |
| Amperage Rating | 10 |
| Application | 9007MS/ML,MINIATURE POTTED,MULTI-DIRECTIONAL HEAD |
| Connection | PRE-WIRED CABLE BOTTOM |
| Contact Configuration | NC-NO |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,IP54 IEC 60529,LR 25490 CLASS 32 11 03-E78403,UL-CSA-CE |
| UPC | 785901159155 |
| GTIN | 00785901159155 |
| Item Type | LIMIT SWITCH,MULTI-DIRECTIONAL HEAD |
| Size | 0.62 IN,1.56 IN,1.75-1.75 IN |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC |
