Hubbell Wiring Device - Kellems

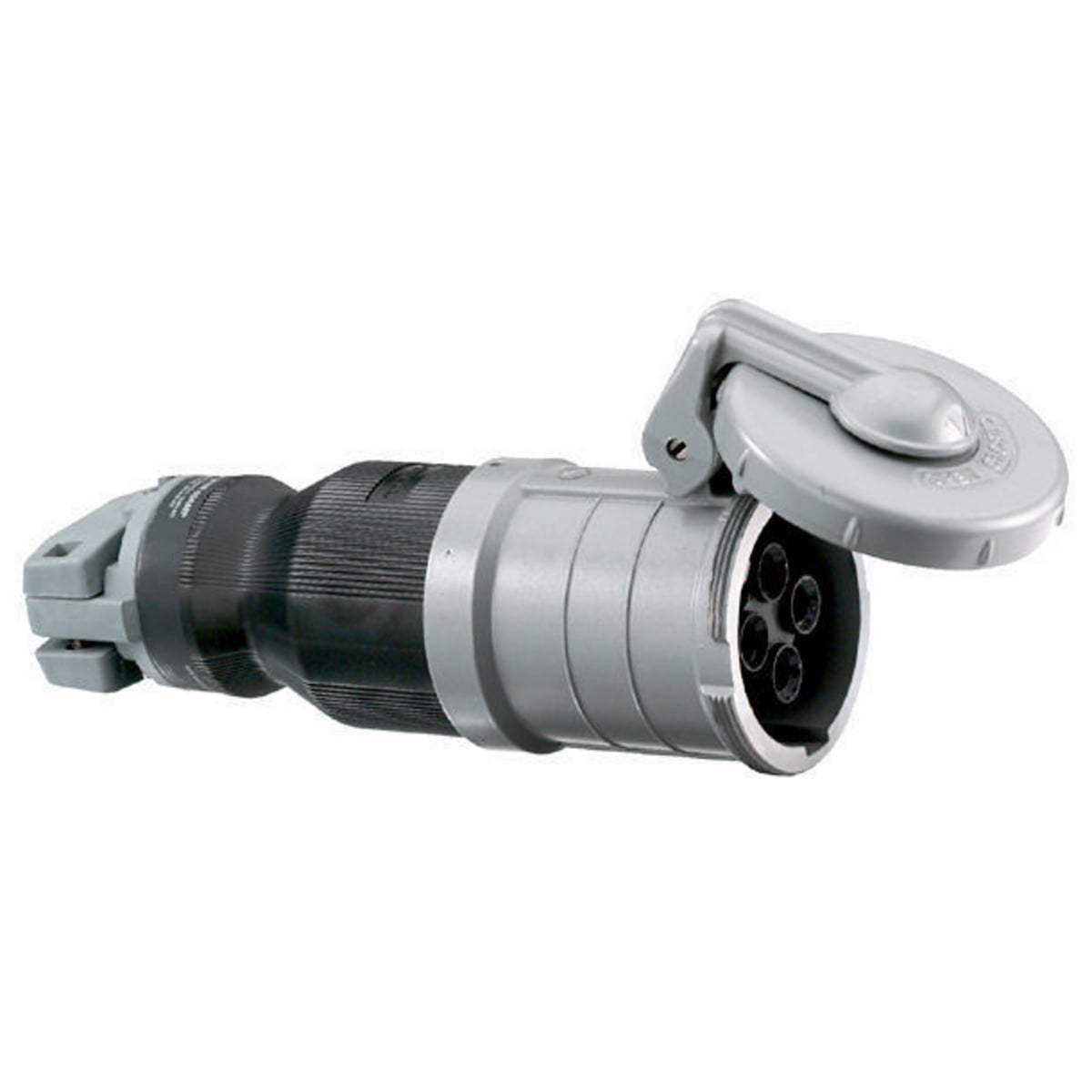

HBL460CS1W Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 600 V AC/250 V DC, 60 A, 3 Poles, 4 Wires, Black/Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL460CS1W
UPC:
783585010564
Item #:
223222

Availability

Location Available Qty
Available Available to Order
$668.90 each

Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. Whats more, Hubbells watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isnt the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices.

Manuals and Documentation
Catalog Number HBL460CS1W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 60
Application Metallic with Nylon Shroud
Color Black;Gray
Conductor Range #6 AWG to #4 AWG
Connection Pressure Screw Terminal
Insulation Insulated Body
Material Composite
Mounting Cord
Number of Conductors 4-Wire Grounding
Number of Poles 3
Special Features Watertight
Standard CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
UPC 783585010564
GTIN 00783585010564
Item Type Watertight Connector
Size Standard
Environmental Conditions Watertight
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 600 VAC/250
