Panduit

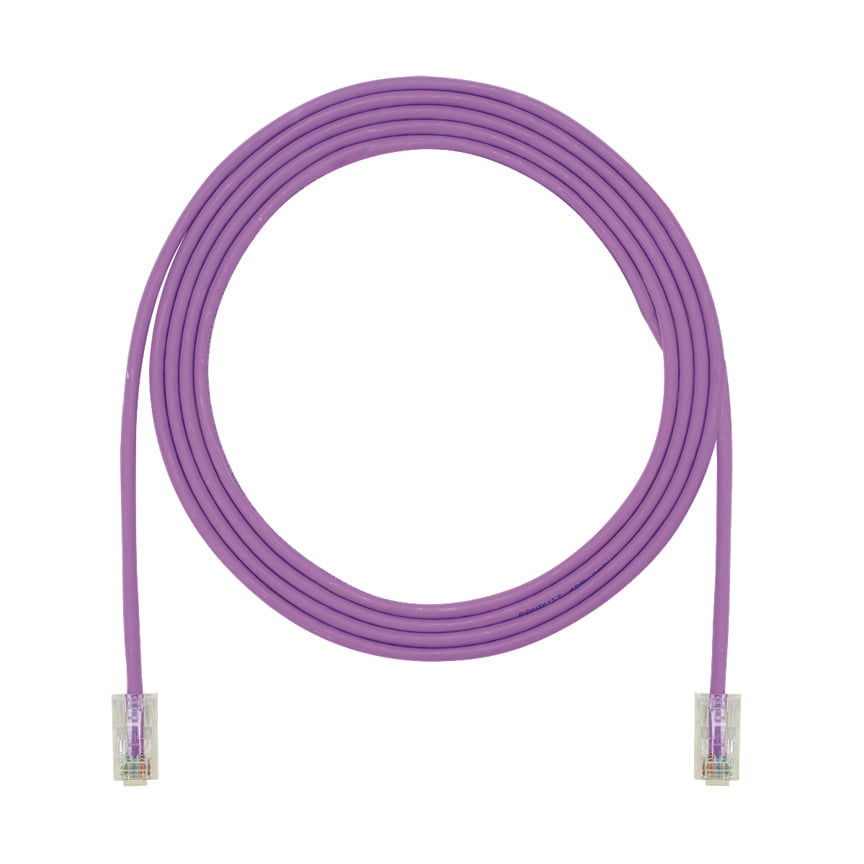

UTP28CH3VL PanNet TX5e-28 Class D Small Diameter Patch Cord With Pan-Plug Modular Plugs on Each End, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 3 ft L Cord, Violet

MFR:
Panduit
MFR #:
UTP28CH3VL
UPC:
074983485772
Item #:
222830

Availability

Location Available Qty
Available Available to Order

The TX5e Cat 5e UTP Patch Cord is a 3-Foot, 0.150-inch (3.8mm) diameter, Violet cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28CH3VL
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Voice/data systems (4) Voice over Internet Protocol (VoIP)
Color Violet
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications,
UPC 074983485772
GTIN 00074983485772
Item Type Patch Cord
Outside Diameter 0.15 IN
Temperature Rating 167 °F
Wire Size 28
