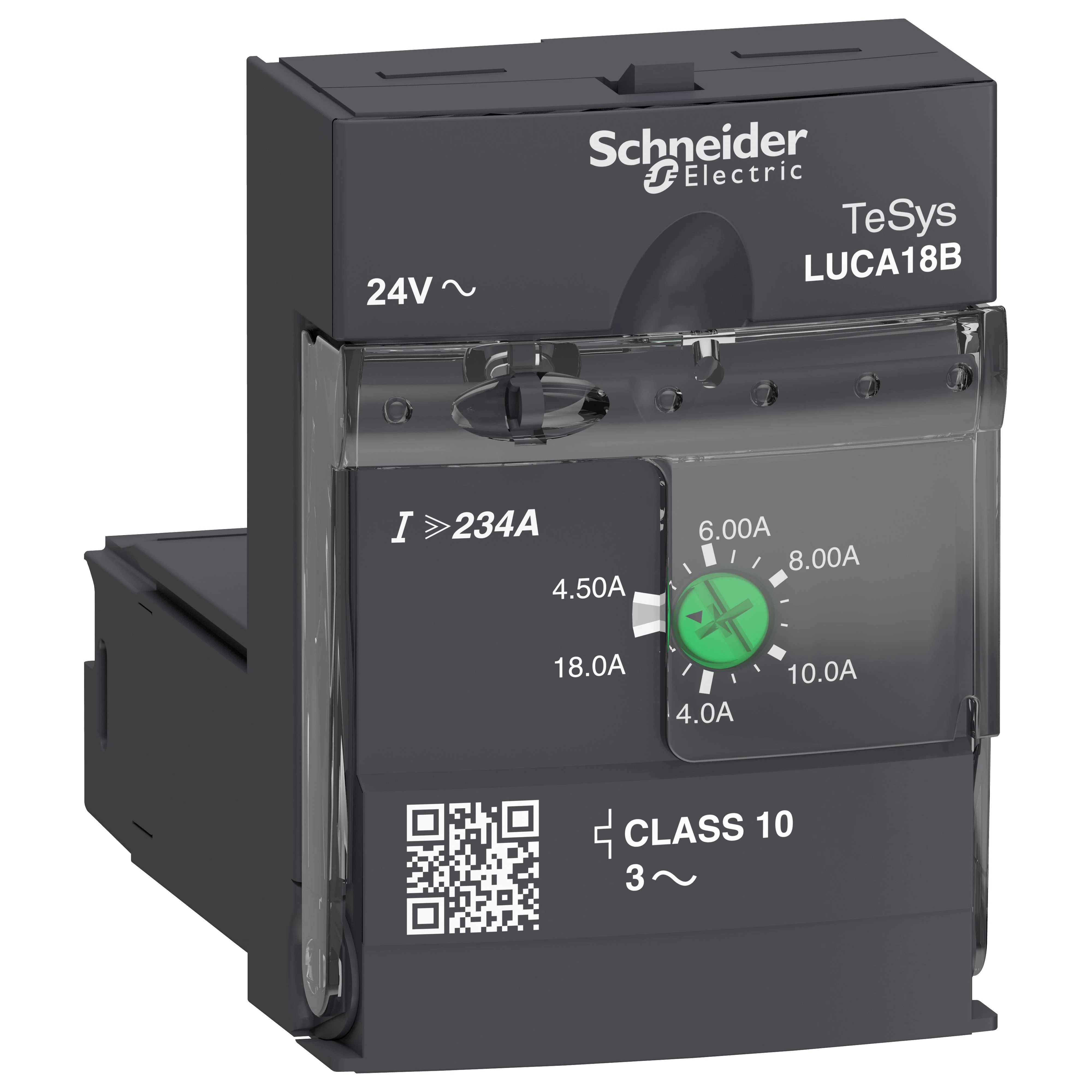

LUCA18B TeSys LUCA 3-Phase Class 10 Solid State Standard Control Unit

MFR:
Schneider Electric
MFR #:
LUCA18B
UPC:
785901221920
Item #:
222420

Availability

Location Available Qty
Available Available to Order
$190.09 each

TeSys U standard control unit to be inserted in power bases LUB32, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

Manuals and Documentation

Features

  • Protection against overload and short-circuit
  • Modular, plug and play structure helps you to perform quick maintenance
  • Advanced motor management system
Manufacturer Part Number LUCA18B
Brand Schneider Electric
Manufacturer Schneider Electric
UPC 785901221920
EAN 3389110363920
Country Of Origin FR
Amperage Rating 4.5 to 18 A
Dimensions 3.5 in L x 3.3 in W x 2.1 in H
Enclosure Type IP20/IP40
Mounting Type DIN Rail/Plug-In
Series TeSys™ LUCA
Temperature Rating -13 to 158 deg F
Type 3-Phase Class 10 Solid State
Voltage Rating 24 V AC
Alternative Part Number 8092642
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals RoHS Compliant | CSA C22.2 No. 14 Type E | EN 60947-6-2 | IEC 60947-6-2 | UL 508 Type E | ASEFA Certified | GL Certified | Lloyd's Register Certified | CCC Certified | BV Certified | UL Listed | ATEX Compliant | GoST-R Certified | ABS Certified | DNV Certified | IEC 60947-1 | Green Premium | WEEE Compliant | ECCN: EAR99
Application For LUFC00, LUFN motor starter
Electrical Connections Wired
Frequency Rating 50/60 Hz
