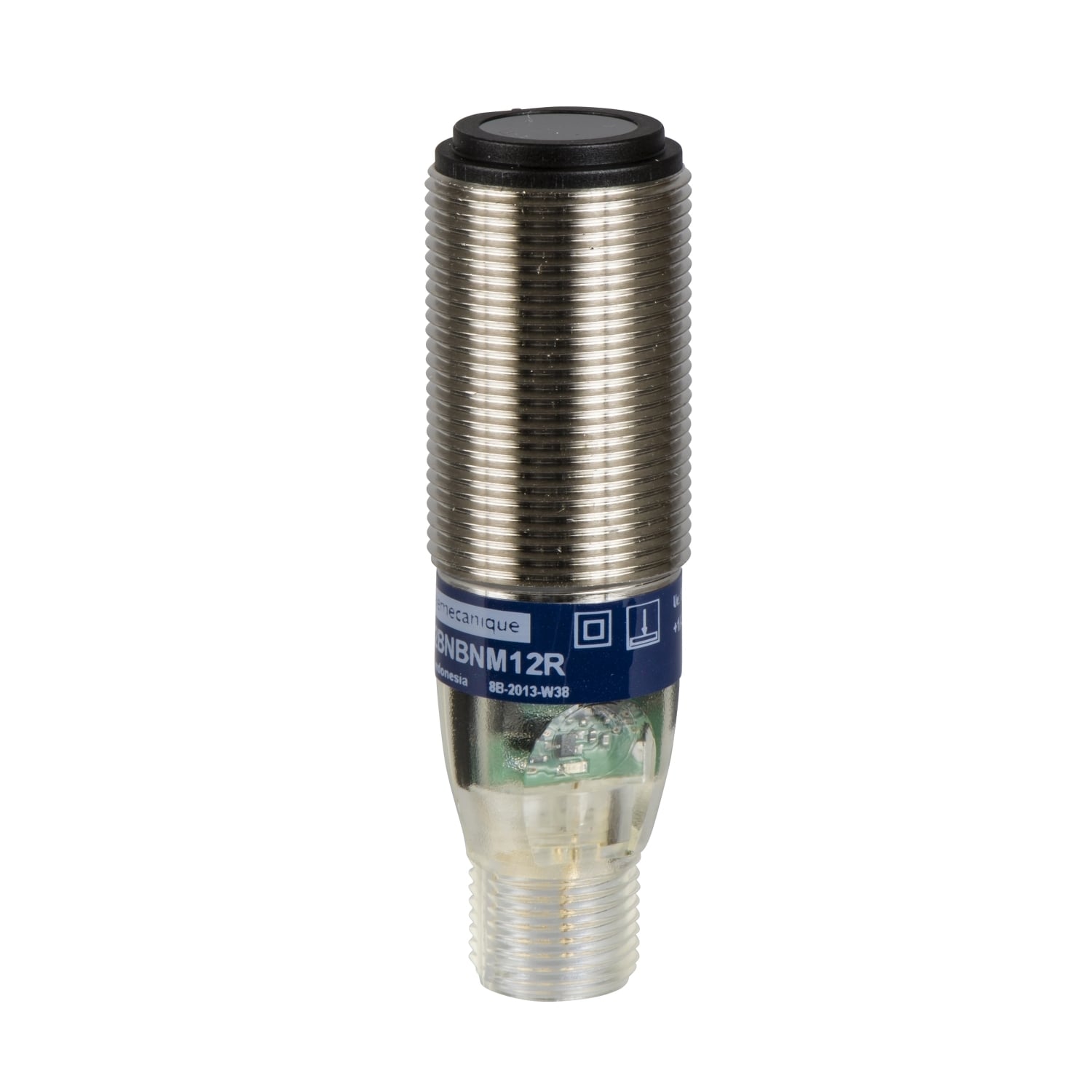

XUB2BPBNM12R XUK Singlemode Photoelectric Sensor, Cylindrical Shape, 20 m, Infrared LED Sensing Beam, 1 ms Response, PNP 1NC Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUB2BPBNM12R
- UPC:
- 785901700241
- Item #:
- 22239
XUB2BPBNM12R XUK Singlemode Photoelectric Sensor, Cylindrical Shape, 20 m, Infrared LED Sensing Beam, 1 ms Response, PNP 1NC Output
- MFR #:
- XUB2BPBNM12R
- UPC:
- 785901700241
- Item #:
- 22239
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This design 18 single mode (thru-beam system) photo-electric receiver has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric receiver has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUB2BPBNM12R |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS |
| Operating Cycles | <= 500 Hz |
| Output | PNP;1 NC;Discrete;Solid state |
| Sensing Range | 15-15 M THRU BEAM NEED A TRANSMITTER XUB2BKSNM12T,> 16.4...49.21 FT (> 5...15 M) |
| Special Features | 1 LED yellow)output state |
| Standard | IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050,UL-CE-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872870&lang=en-us |
| UPC | 785901700241 |
| GTIN | 03389110152760 |
| Item Type | General purpose single mode;Thru beam;Cylindrical M18;Photo-electric sensor receiver |
| Size | 18 MM,60 MM |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
