Rittal

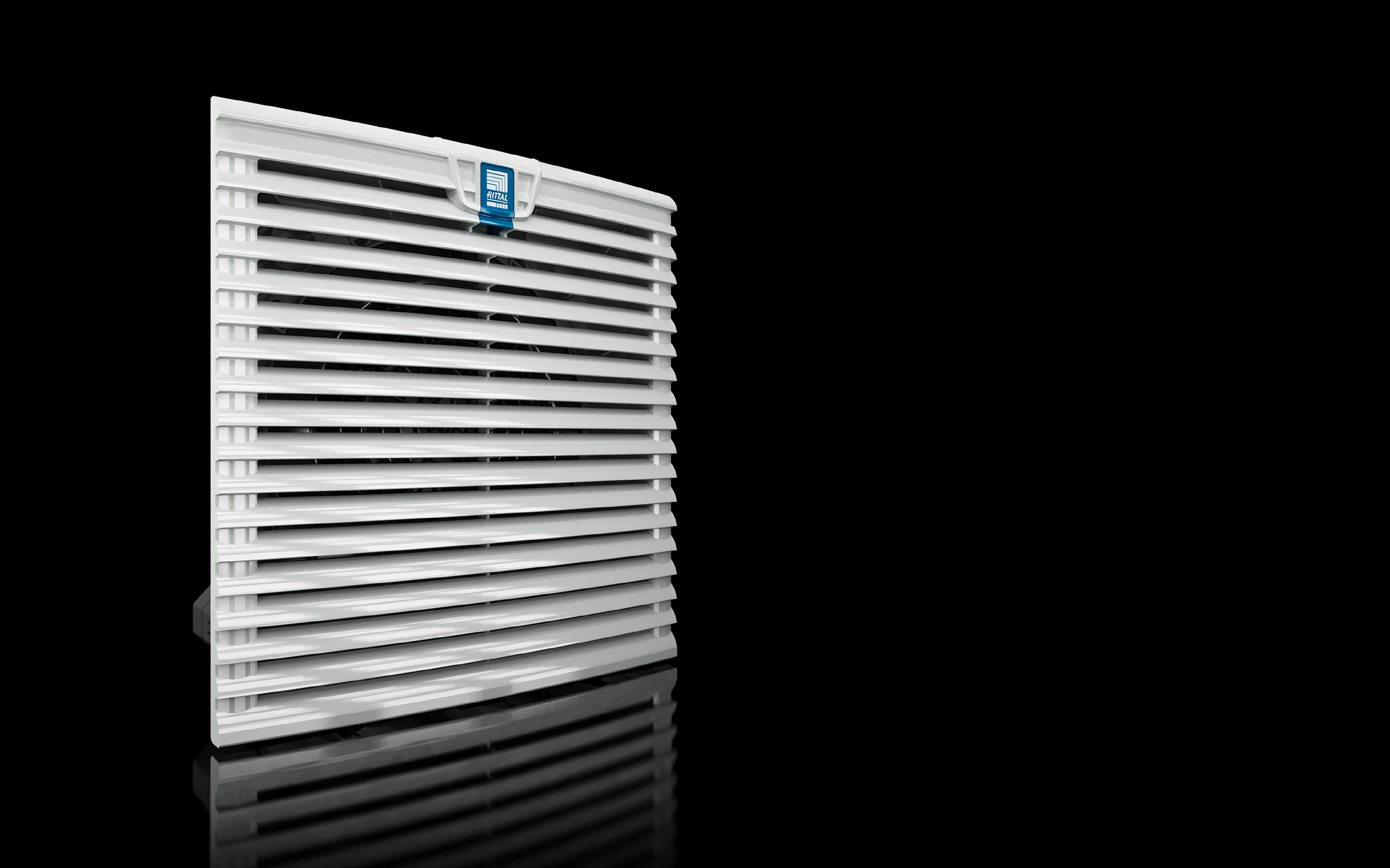

3237610 TopTherm 1-Phase Fan and Filter Unit With EMC Shielding, 230 V AC, 0.052/0.065 A, 9/11 W Power Rating, 11.8/14.7 cfm Air Flow, IP54/56 Enclosure

MFR:
Rittal
MFR #:
3237610
UPC:
639889859449
Item #:
221906

Availability

Location Available Qty
Available Available to Order
$446.25 each

Rittal TopTherm Fan and Filter Unit, 1-Phase, 230 V AC, 0.052/0.065 A, 9/11 W Power, 38/43 dB Sound Level, 11.8/14.7 cfm Air Flow, Surface/Threaded Mounting, AC Motor, IP54/56 Enclosure, 4.6 in W x 0.63 in D x 4.6 in H Dimensions

Manuals and Documentation

Features

  • Complete fan unit with EMC shielding for tool free mounting on surfaces
  • For energy efficient operation of the filter fan units, we recommend using the enclosure internal thermostat, the speed control or the digital enclosure internal temperature display and thermostat
  • 38 dB at 50 Hz, 43 dB at 60 Hz
  • 11 W at 50 Hz, 9 W 60 Hz
  • 11.8 cfm at 50 Hz, 14.7 cfm at 60 Hz
  • 065 A at 50 Hz, 052 A at 60 Hz
Manufacturer Part Number 3237610
Brand Rittal
Manufacturer Rittal
UPC 639889859449
Country Of Origin DE
Amperage Rating 0.052/0.065 A
Dimensions 4.6 in W x 0.63 in D x 4.6 in H
Enclosure Type IP54/56
Mounting Type Surface/Threaded
Type 1-Phase
Voltage Rating 230 V AC
Alternative Part Number 11809821
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals RoHS Compliant | UL 20130211-E76083 | CSA C22.2 File No. 14 | CAN/CSA C22.2 File No. 94 | UL 508A | cUL Listed
Application Climate Control Solutions
Includes Filter Mat
Air Flow Rate 11.8/14.7 cfm
Motor Type AC
Power Rating 9/11
Sound Level 38/43 dB
